Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Using a stiff brush, thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange.
- Using a stiff brush, thoroughly clean any rust or corrosion from the mating surface and mounting surface of the brake rotor.
- Inspect the mating surfaces of the hub/axle flange and the rotor to ensure there are no foreign particles or debris remaining.

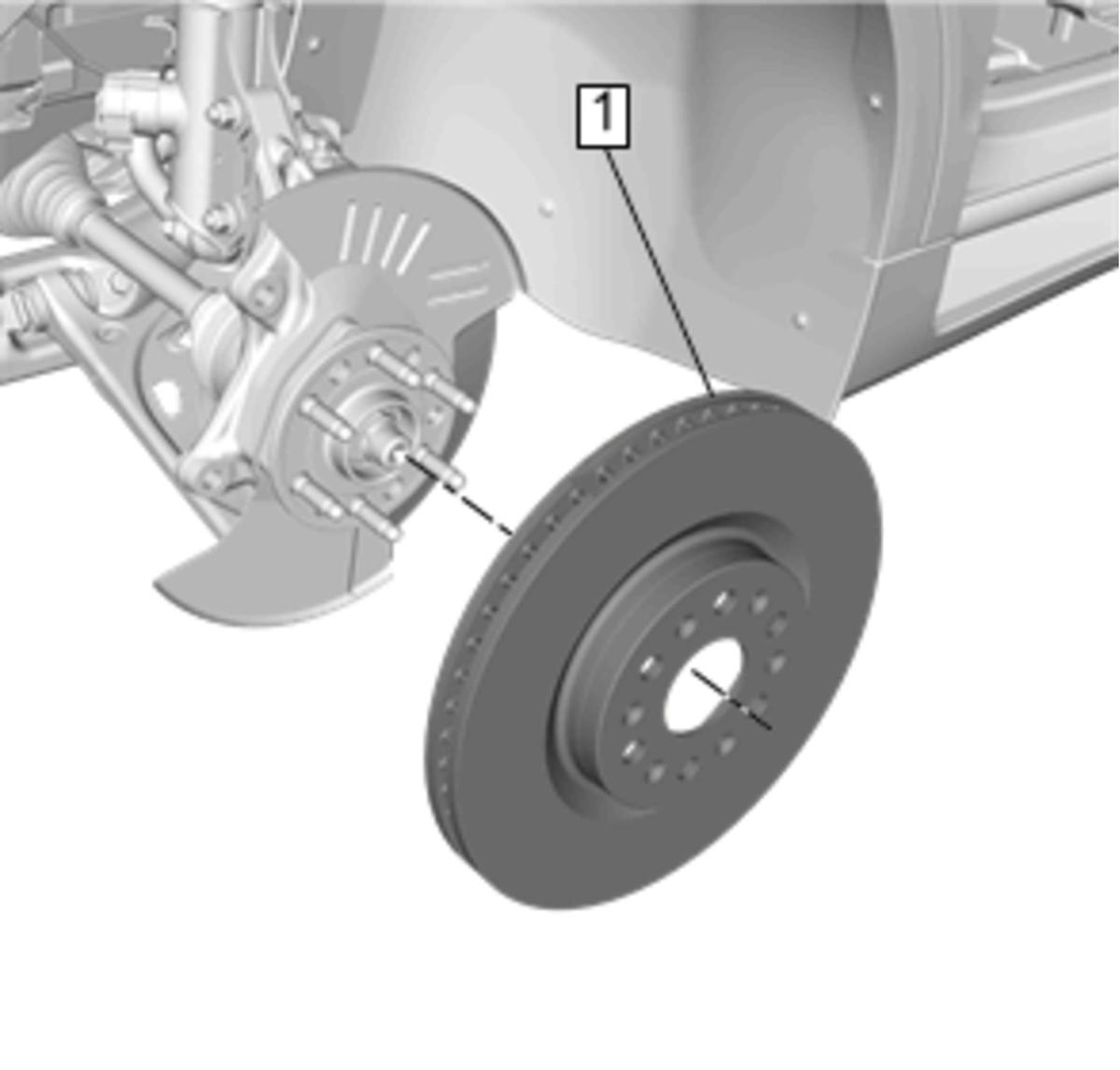

- Install Brake Rotor (1)

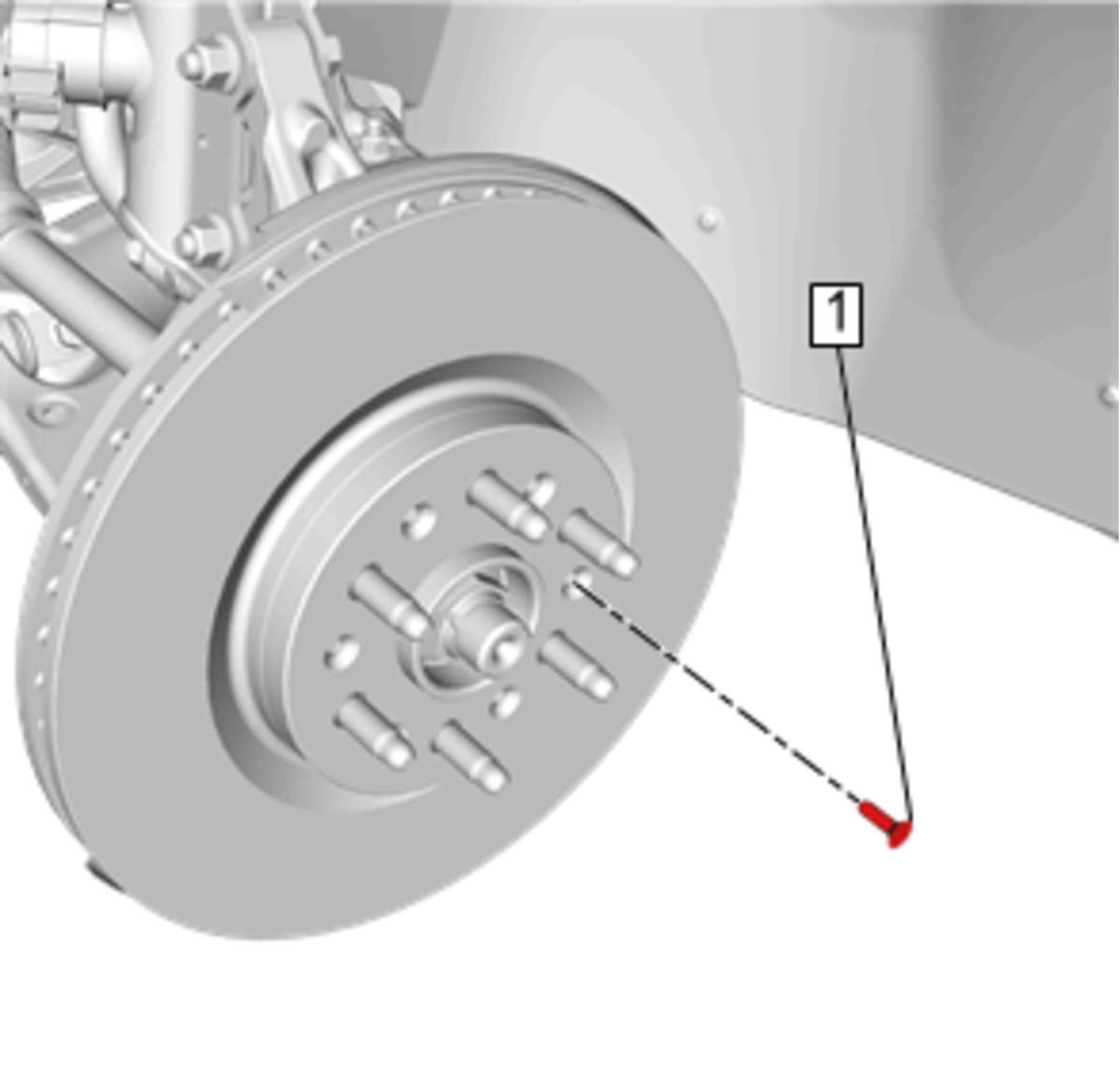

- Install Brake RotorBolt (1)and tighten 9 N.m (80 lb in)
- Prepare the brake caliper bracket bolts and the bracket threaded holes for assembly:
- Thoroughly clean the residue from the bolt threads with denatured alcohol or equivalent and allow to dry.
- Thoroughly clean the residue from the threaded holes with denatured alcohol or equivalent and allow to dry.
- Apply threadlocker to 2/3 of the threaded length of the bolts. Adhesives, Fluids, Lubricants, and Sealers

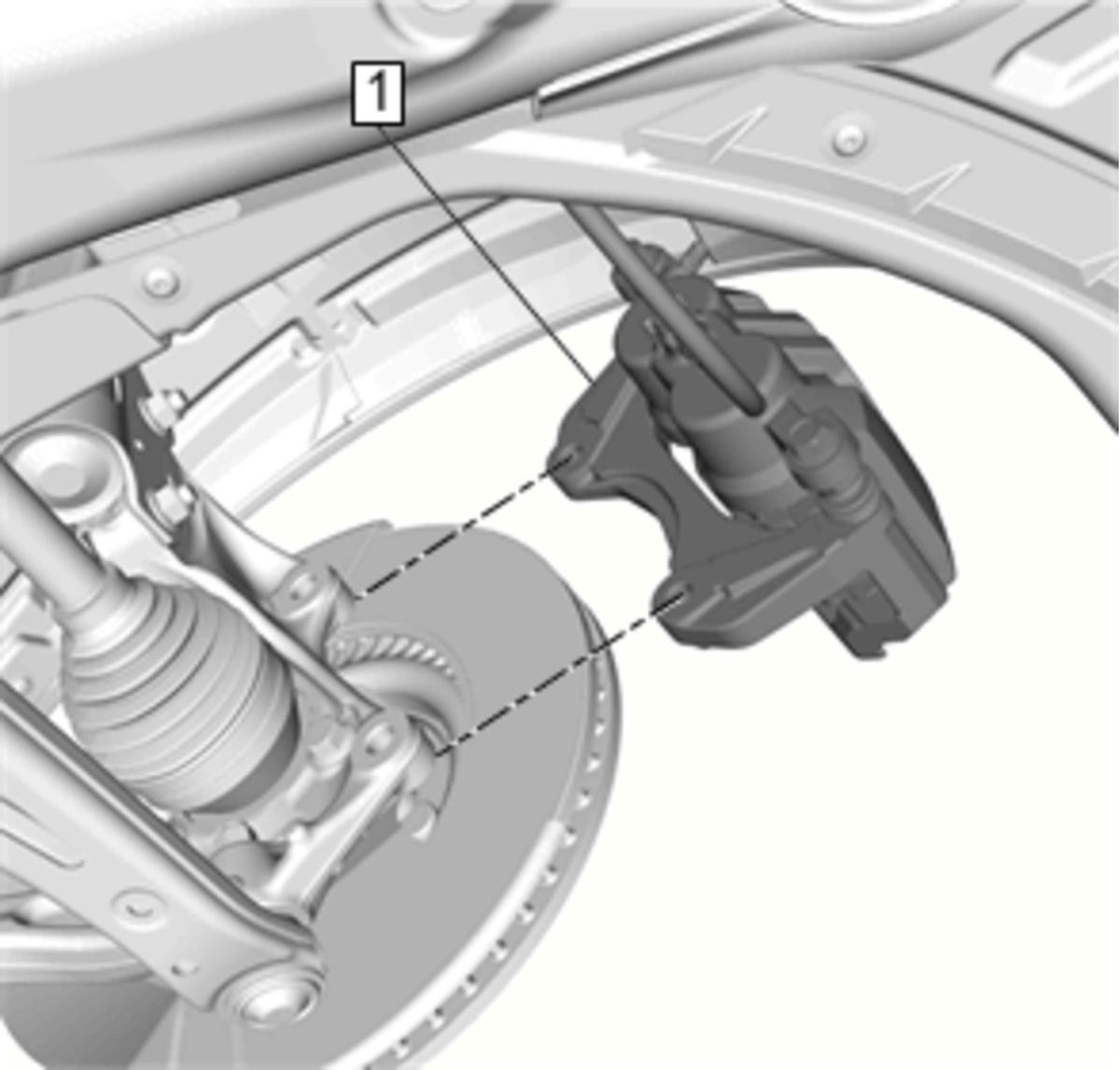

- Install Brake Caliper and Bracket Assembly (1)

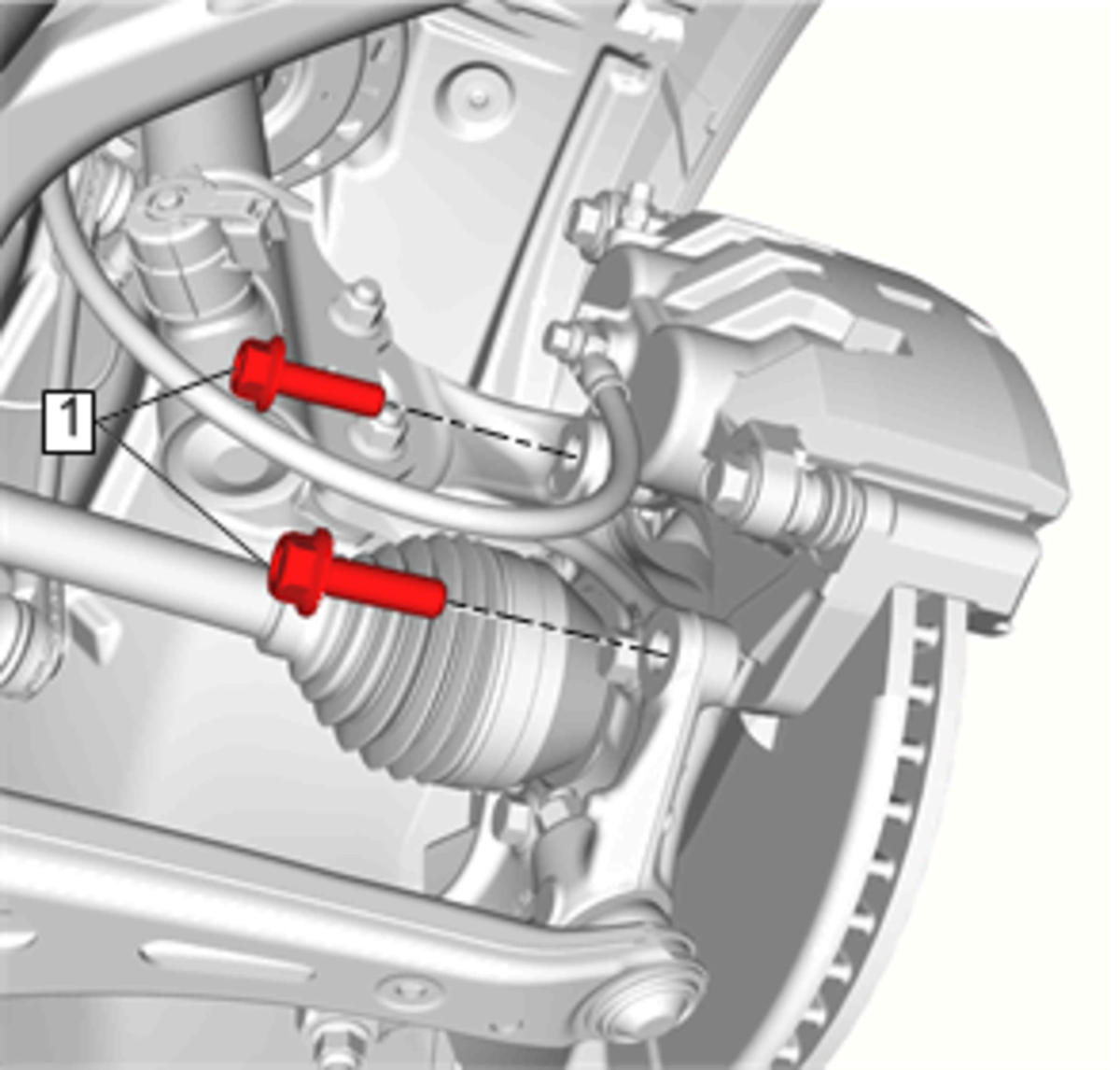

- Install Brake Caliper BracketBolt (1) and tighten
- First Pass: 150 N.m (111 lb ft)
- Final Pass: 15-30 degrees
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
- Burnish the brake pads and rotors. Brake Pad and Rotor Burnishing .
NOTE:
Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminates should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor, which could lead to brake pulsation.
CAUTION:
