Assembly Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Caliper Piston Boots
    GM4295606Courtesy of GENERAL MOTORS COMPANY
  1. Lubricate the outer surface of the caliper pistons with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
  2. Install the caliper piston boots (1) to the caliper pistons.
    3. Fig 2: Caliper Piston Boots
    GM4295610Courtesy of GENERAL MOTORS COMPANY
  3. Position the caliper piston boots (1) at the bottom of the caliper pistons.

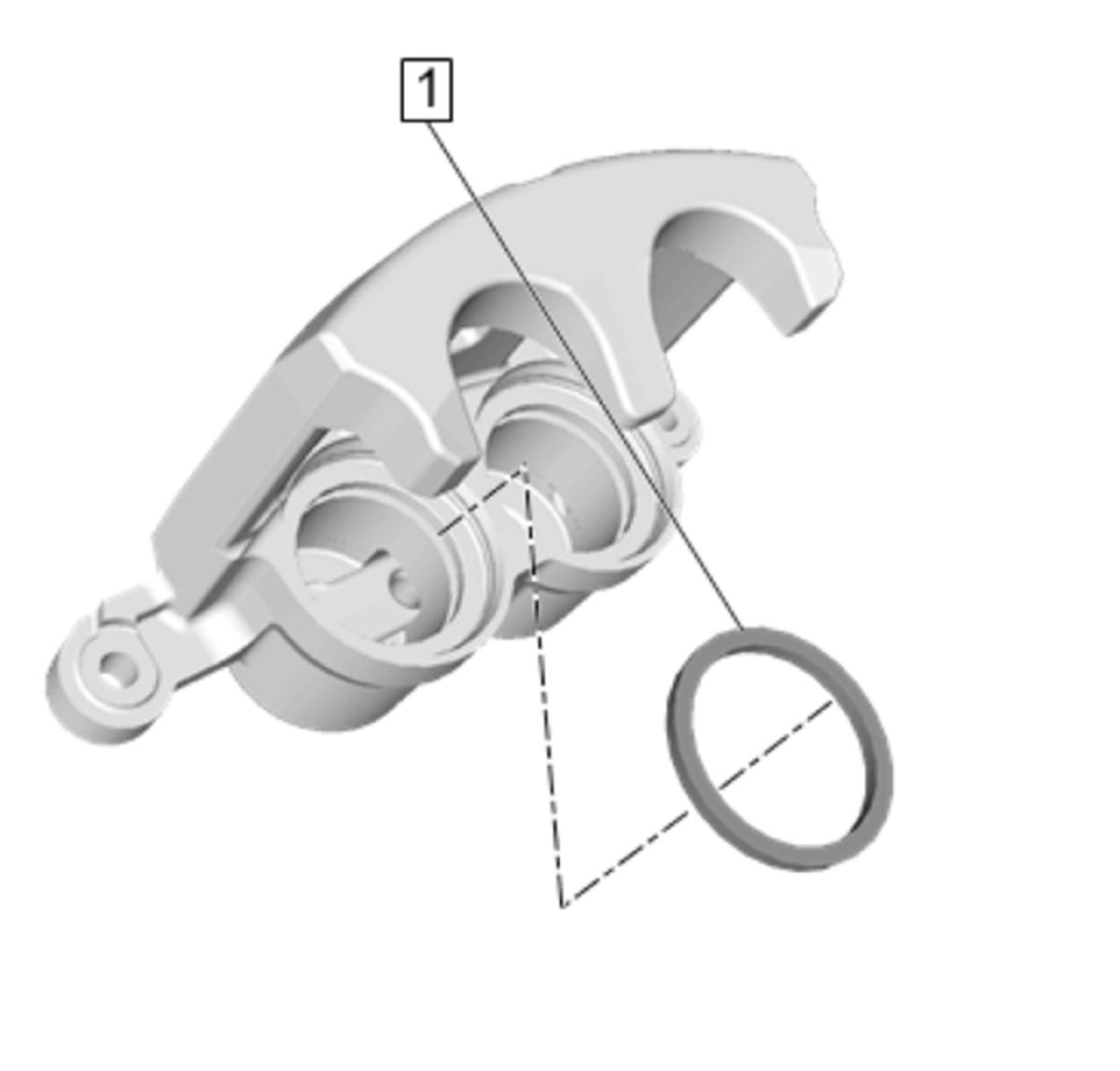

    4. Fig 3: Caliper Piston Seal
    GM4295600Courtesy of GENERAL MOTORS COMPANY
  4. Lubricate the new caliper piston seal (1) with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
    5. NOTE:

    Ensure the seal is not twisted.

  5. Install the lubricated caliper piston seal into the brake caliper bore seal groove.

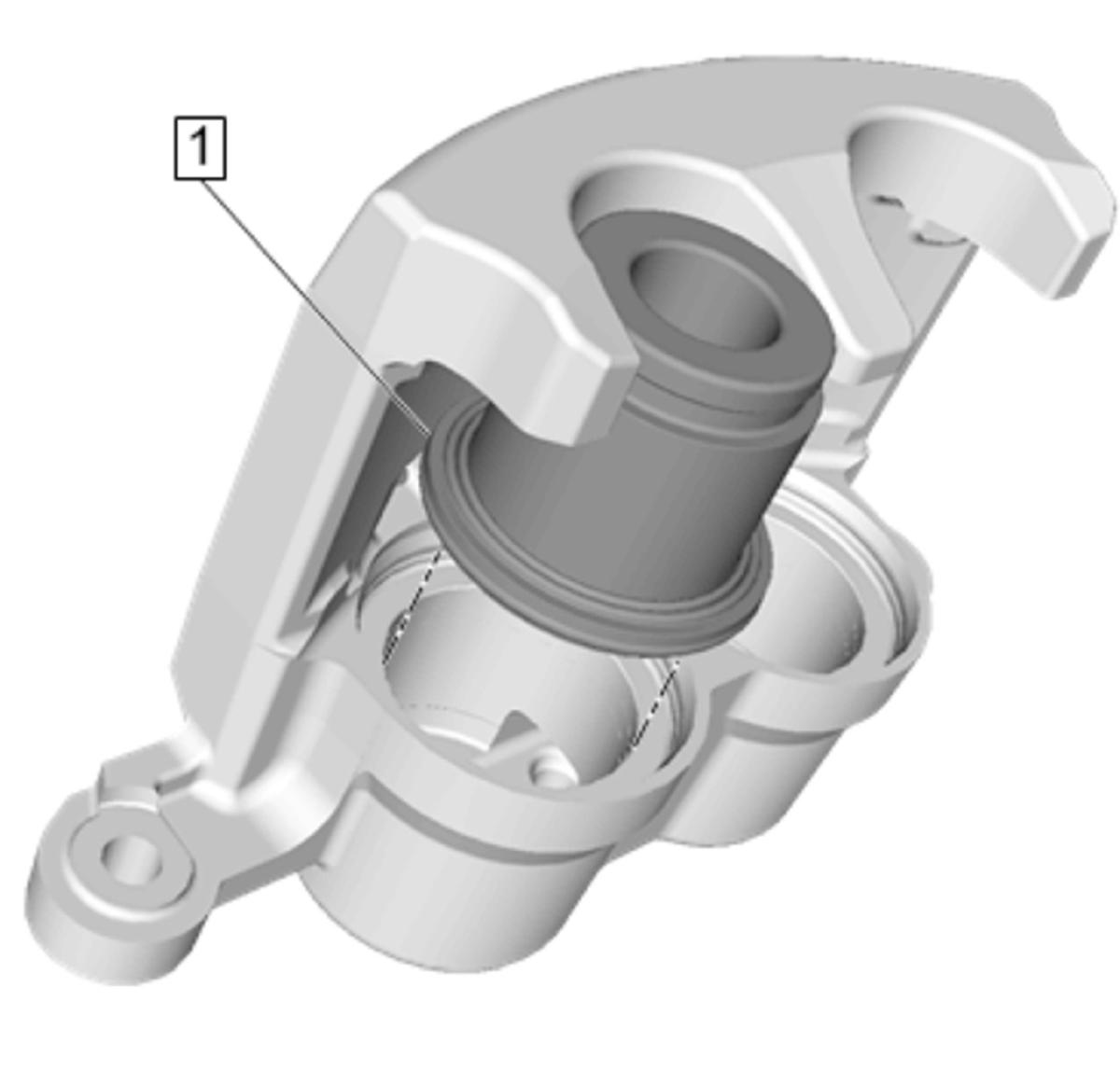

    6. Fig 4: Caliper Piston And Boot Assembly
    GM4295615Courtesy of GENERAL MOTORS COMPANY
  6. Install the caliper piston and boot assembly (1) into the caliper.
  7. Seat the caliper piston boot evenly and completely into the groove in the caliper housing.
  8. Carefully push the piston squarely into the brake caliper housing bore.

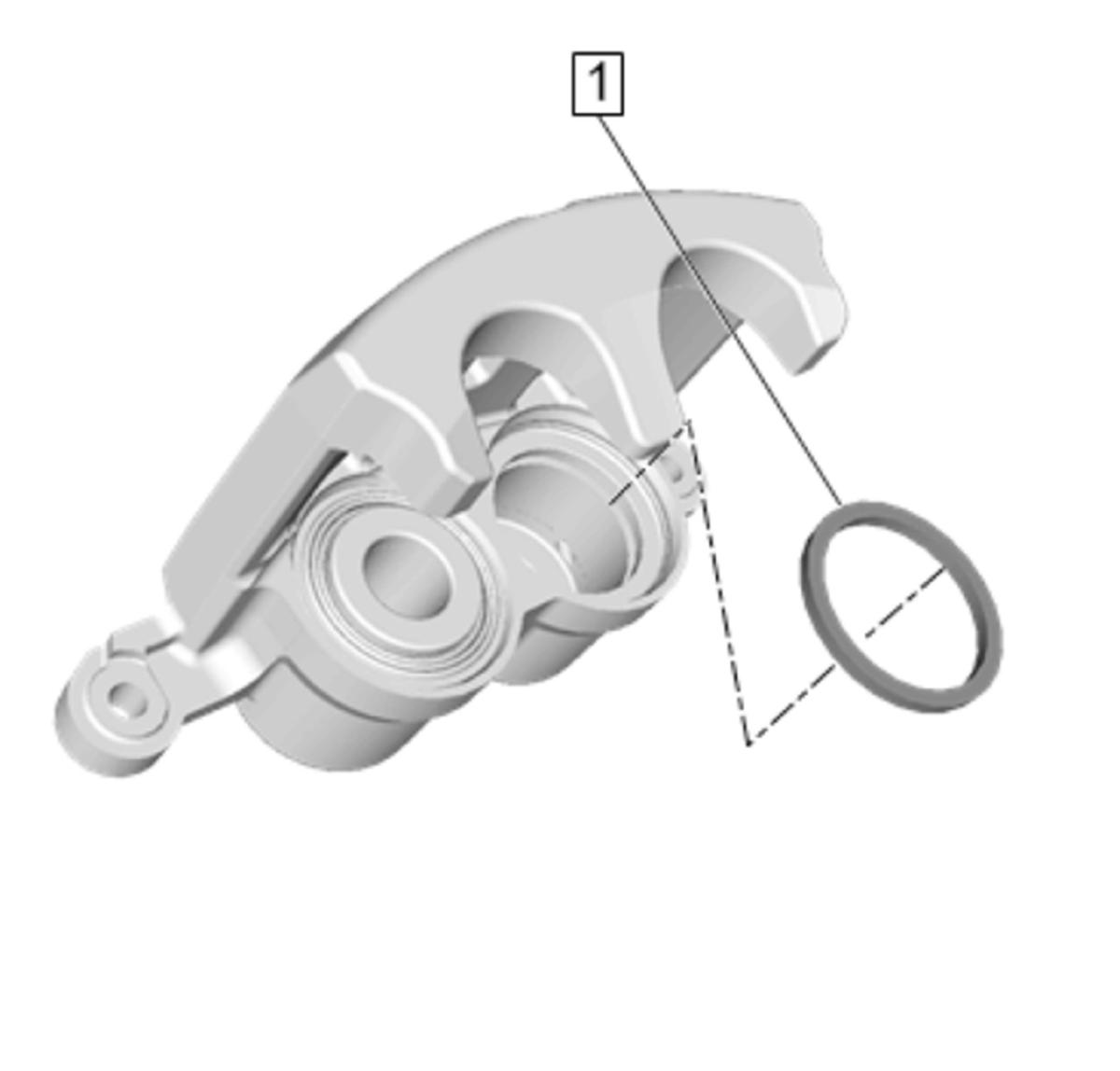

    9. Fig 5: Caliper Piston Seal
    GM4295559Courtesy of GENERAL MOTORS COMPANY
  9. Lubricate the opposite new caliper piston seal (1) with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
    10. NOTE:

    Ensure the seal is not twisted.

  10. Install the lubricated caliper piston seal into the brake caliper bore seal groove.

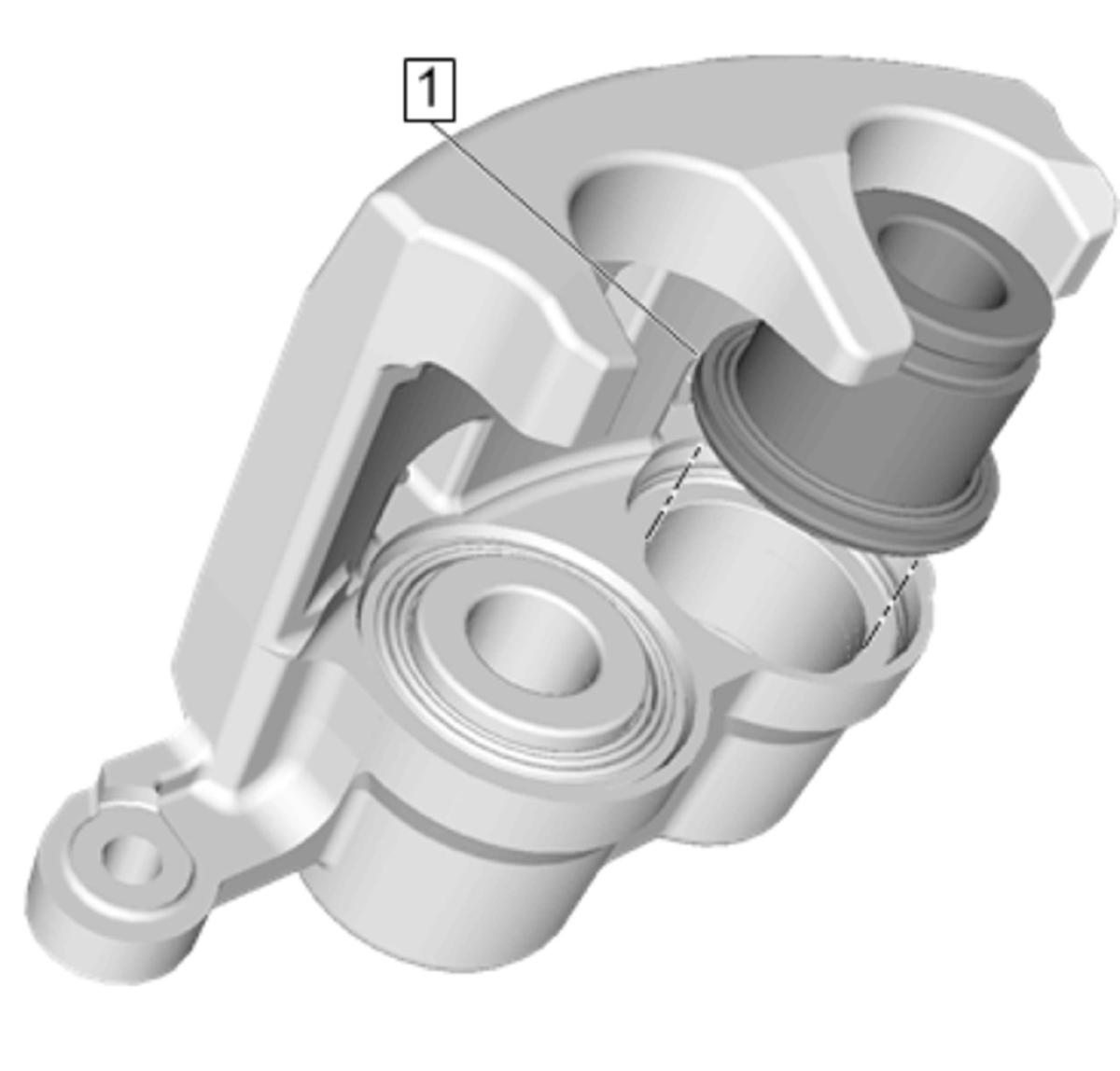

    11. Fig 6: Caliper Piston And Boot Assembly
    GM4295617Courtesy of GENERAL MOTORS COMPANY
  11. Install the opposite caliper piston and boot assembly (1) into the caliper.
  12. Seat the caliper piston boot evenly and completely into the groove in the caliper housing.
  13. Carefully push the piston squarely into the brake caliper housing bore.

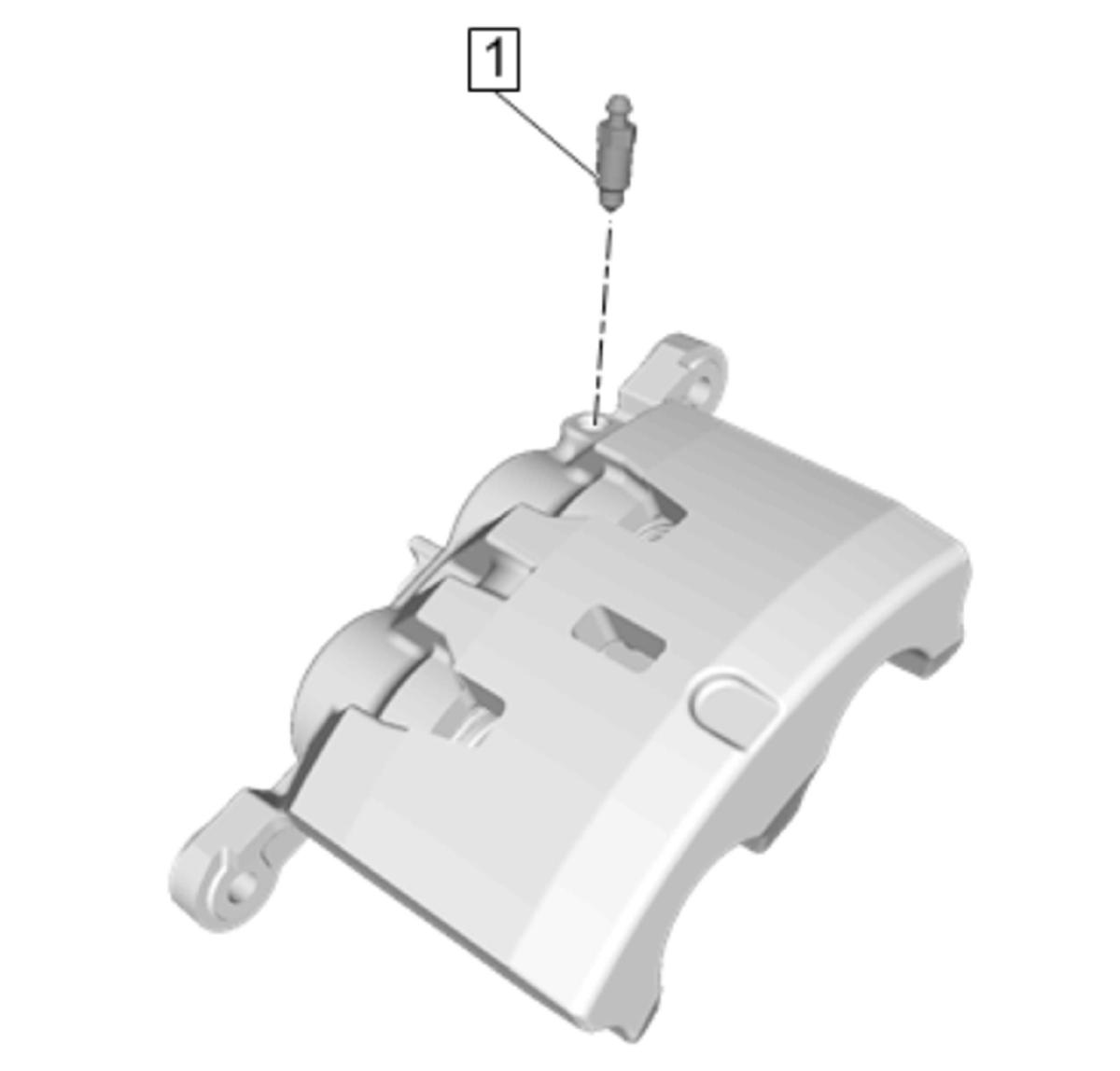

    14. Fig 7: Brake Caliper Bleeder Valve
    GM4295624Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  14. Install the brake caliper bleeder valve (1) and tighten to 8 N.m (71 lb in).

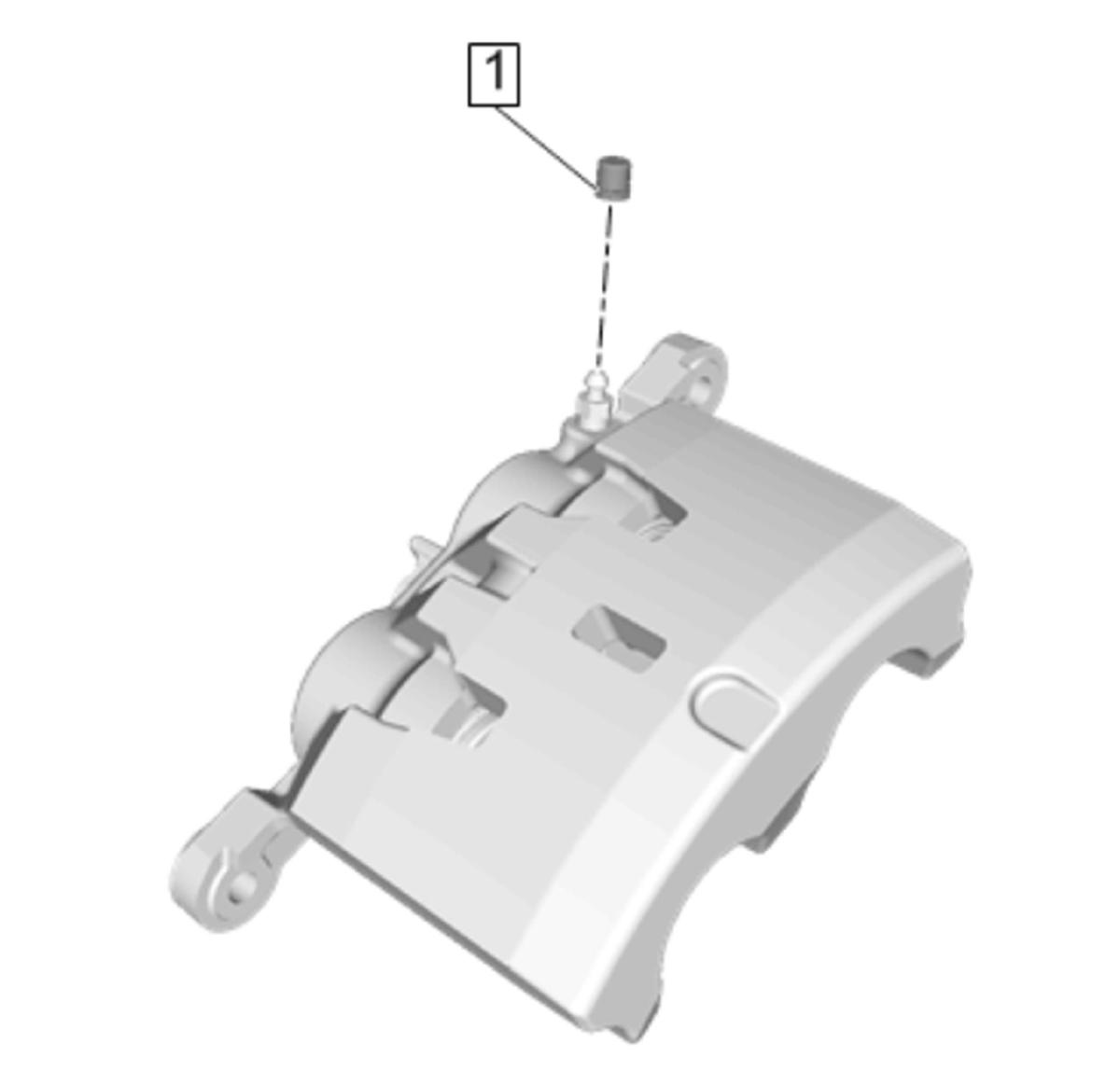

    15. Fig 8: Brake Caliper Bleeder Valve Cap
    GM4295619Courtesy of GENERAL MOTORS COMPANY
  15. Install the brake caliper bleeder valve cap (1).
  16. Install the front brake caliper. Front Brake Caliper Replacement
