Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Prepare the brake caliper bracket bolts and the bracket threaded holes for assembly:
- Thoroughly clean the residue from the bolt threads with denatured alcohol or equivalent and allow to dry.
- Thoroughly clean the residue from the threaded holes with denatured alcohol or equivalent and allow to dry.
- Apply threadlocker to 2/3 of the threaded length of the bolts. Adhesives, Fluids, Lubricants, and Sealers

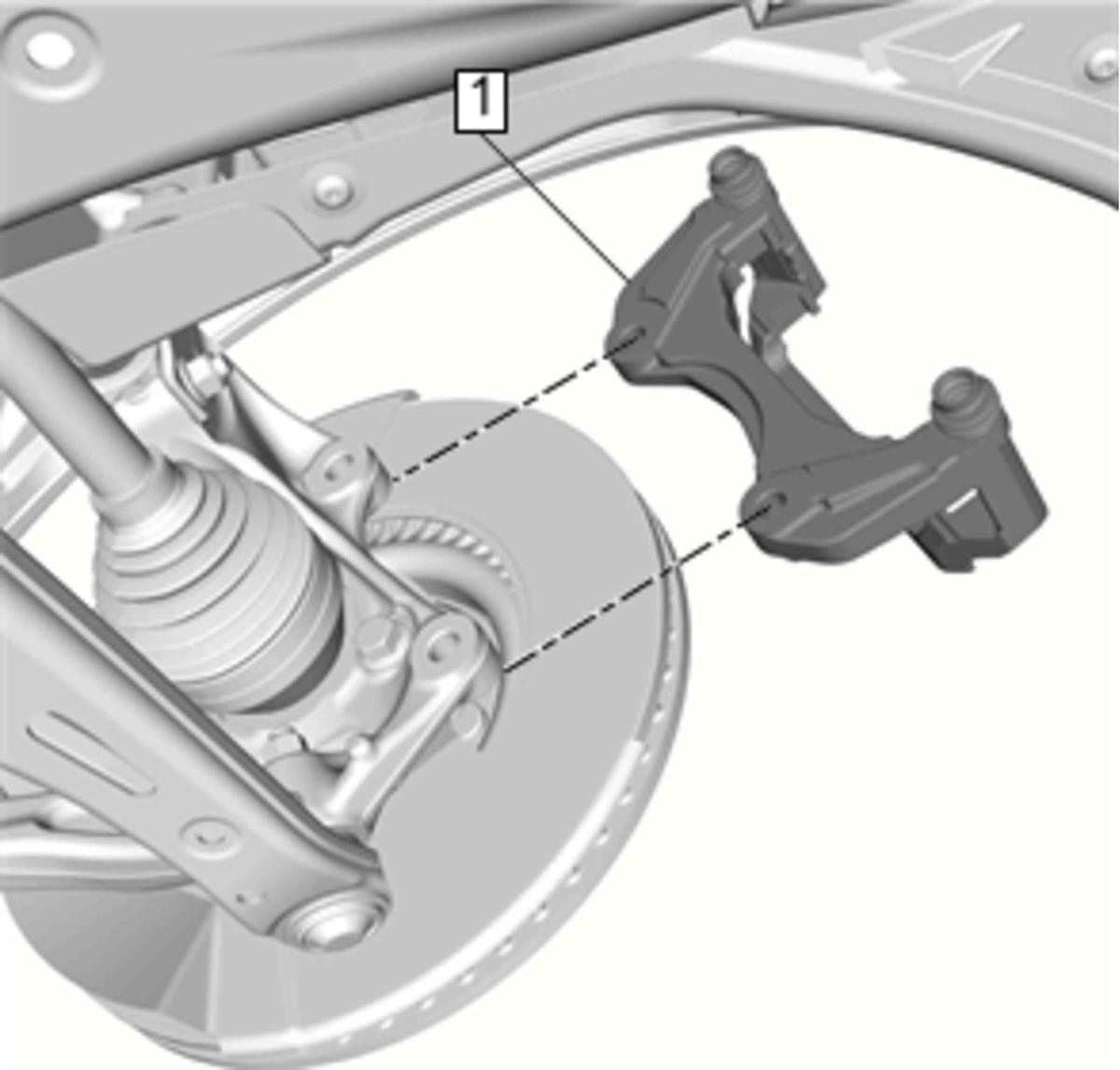

Fig 1: Front Brake Caliper Bracket

GM4261532

Courtesy of GENERAL MOTORS COMPANY

Install Front Brake Caliper Bracket (1)

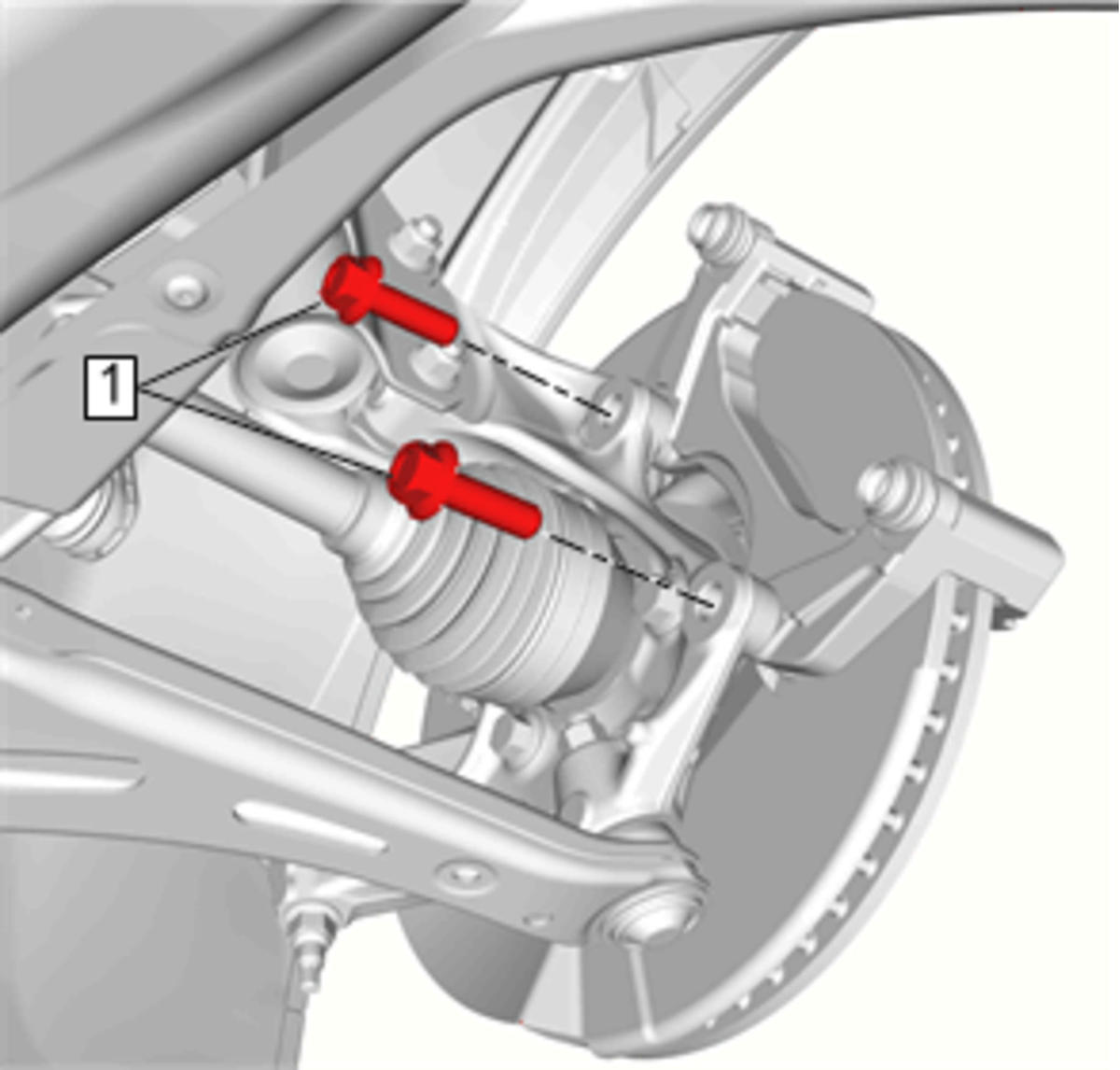

Fig 2: Brake Caliper Bracket Bolt

GM4261531

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Fastener Caution

Install Brake Caliper Bracket Bolt (1) and tighten
- First Pass: 150 N.m (111 lb ft)
- Final Pass 15-30 degrees

Fig 3: Disc Brake Pad Spring

GM4254010

Courtesy of GENERAL MOTORS COMPANY

The disc brake pad clip with the tab (1) must be installed in the leading edge of the brake caliper bracket.

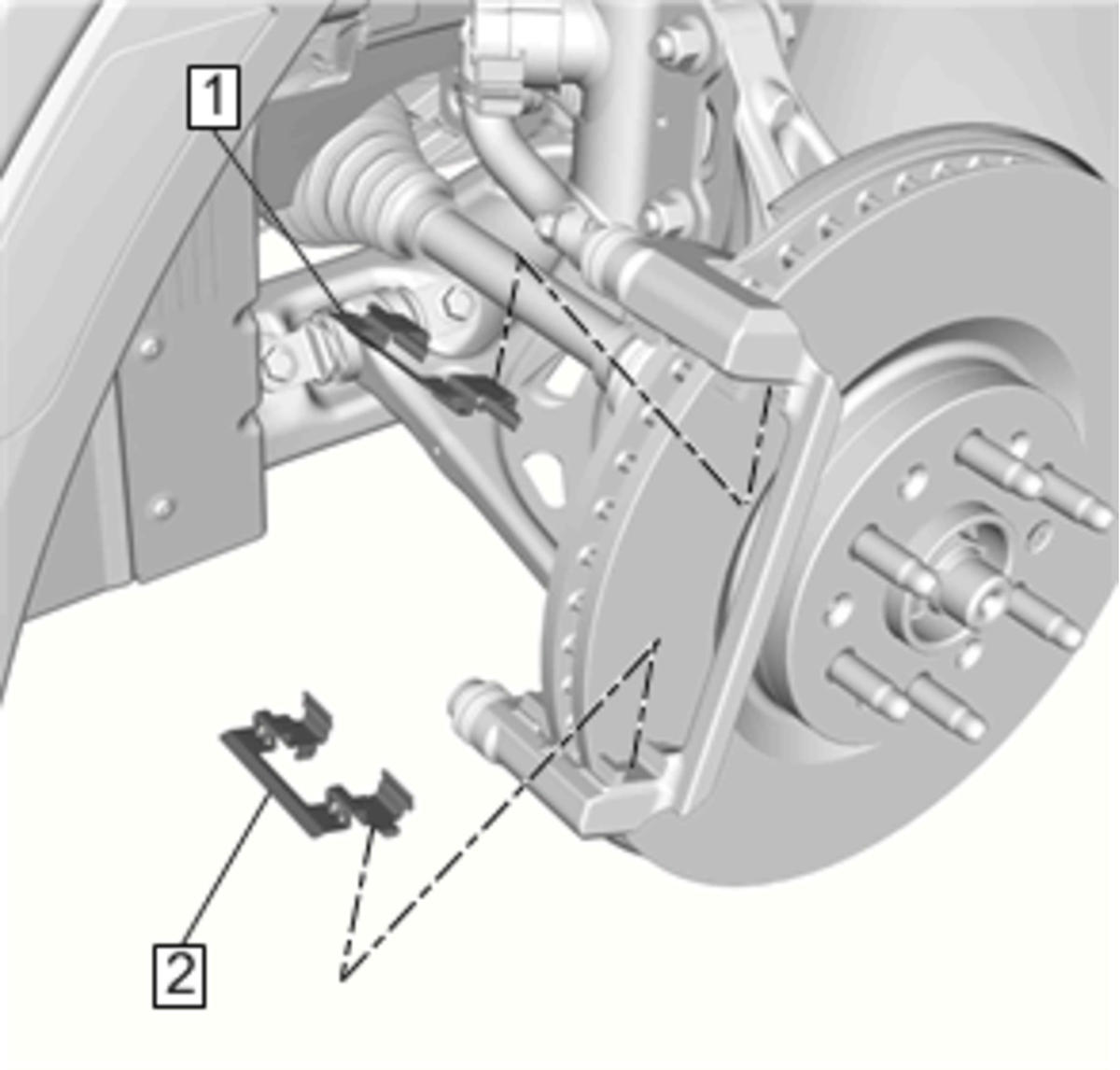

Fig 4: Disc Brake Pad Clip

GM4261529

Courtesy of GENERAL MOTORS COMPANY

Install Leading Disc Brake Pad Clip (1)
Install Trailing Disc Brake Pad Clip (2)

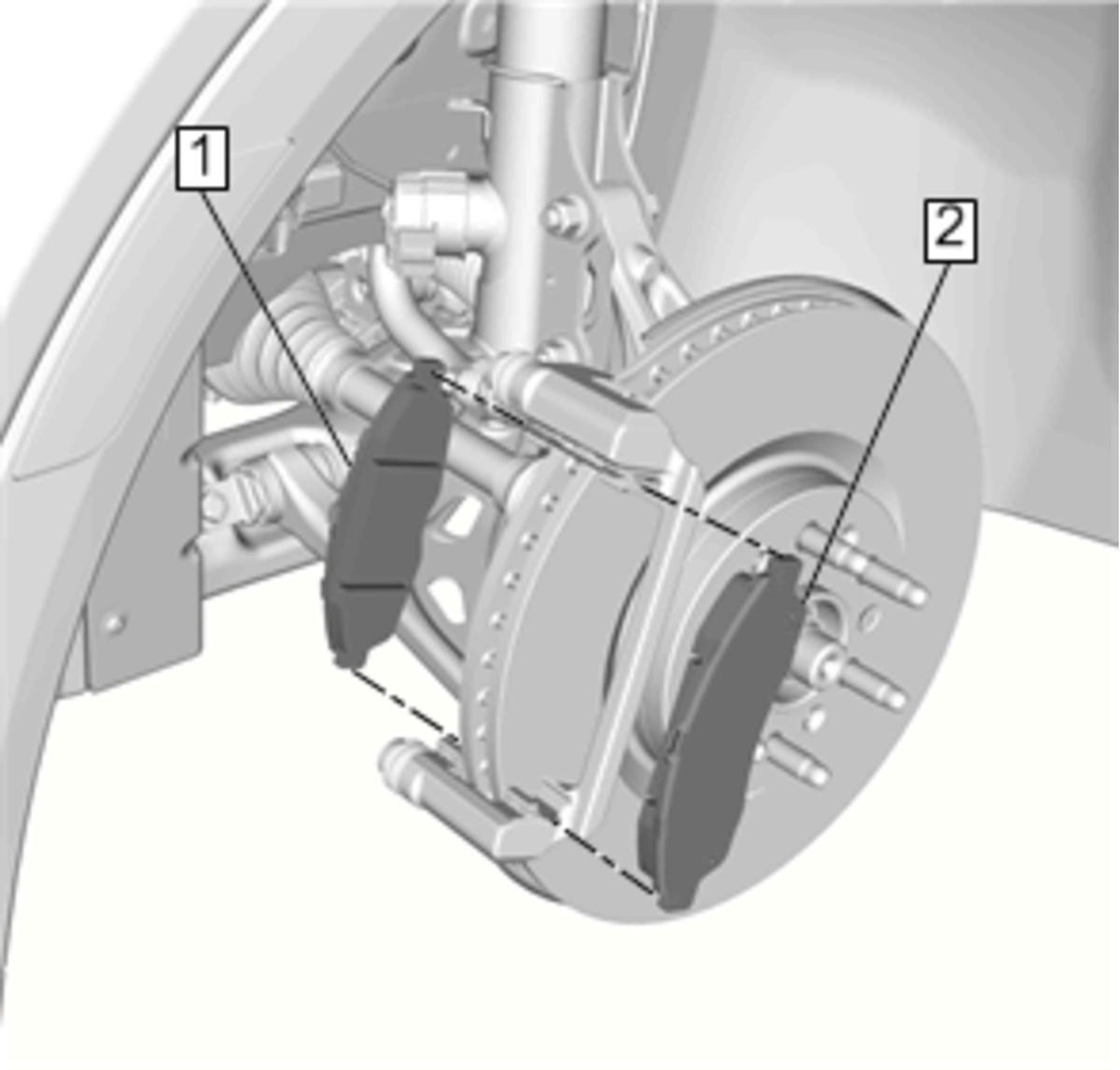

Fig 5: Inner Disc Brake Pad

GM4261528

Courtesy of GENERAL MOTORS COMPANY

Install Inner Disc Brake Pad (1)
Install Outer Disc Brake Pad (2)

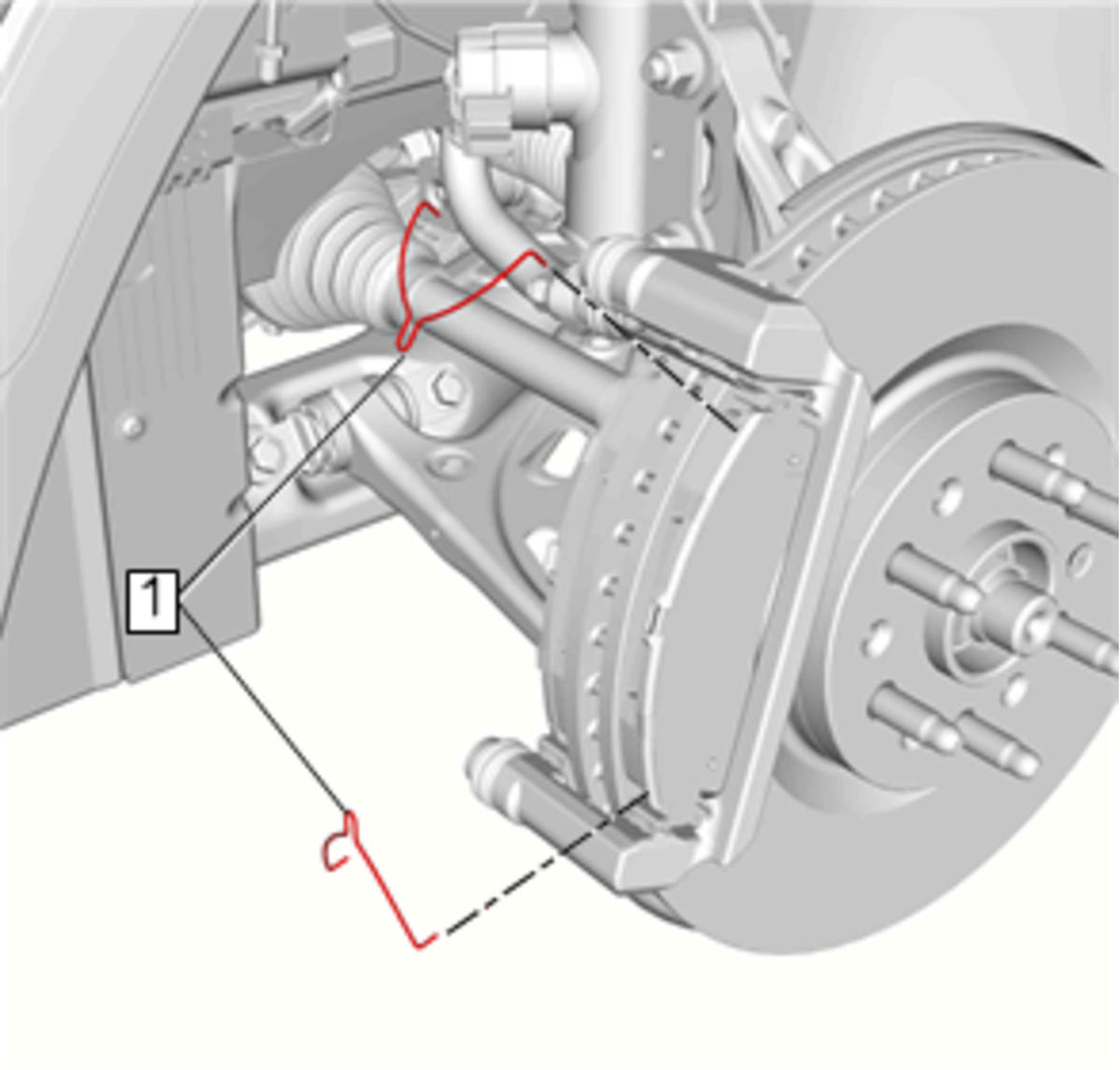

Fig 6: Disc Brake Pad Spring

GM4261527

Courtesy of GENERAL MOTORS COMPANY

Install Disc Brake Pad Spring (1)

Fig 7: Brake Caliper

GM4261523

Courtesy of GENERAL MOTORS COMPANY

Install Brake Caliper (1)

Fig 8: Brake Caliper Guide Pin Bolt

GM4261521

Courtesy of GENERAL MOTORS COMPANY

Install Brake Caliper Guide Pin Bolt (1) and tighten 72 N.m (53 lb ft)
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
