Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

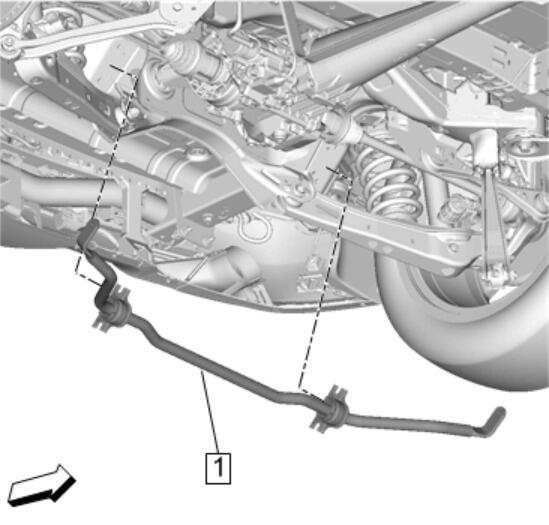

    Fig 1: Rear Stabilizer Shaft
    GM4353705Courtesy of GENERAL MOTORS COMPANY
  1. Install Rear Stabilizer Shaft (1)

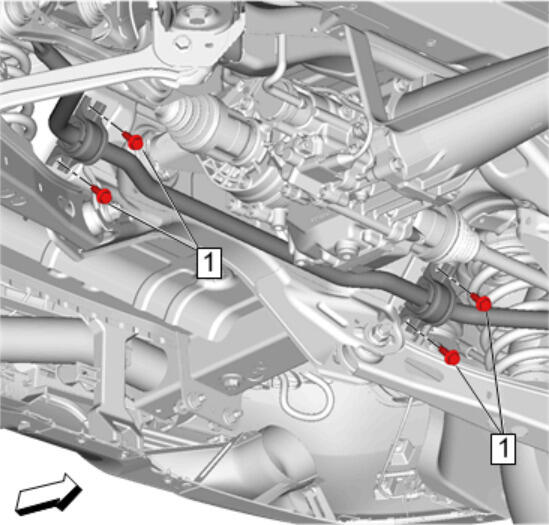

    2. Fig 2: Rear Stabilizer Shaft Insulator Clamp Bolt
    GM4353702Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Rear Stabilizer Shaft Insulator Clamp Bolt (1) and tighten 58 N.m (43 lb ft)

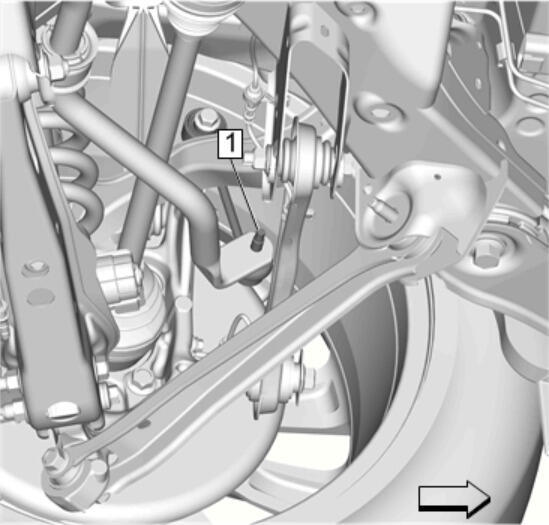

    3. Fig 3: Rear Stabilizer Shaft Link
    GM4281841Courtesy of GENERAL MOTORS COMPANY
  3. Install Rear Stabilizer Shaft Link (1) @Left Side - Stabilizer Shaft Link Replacement

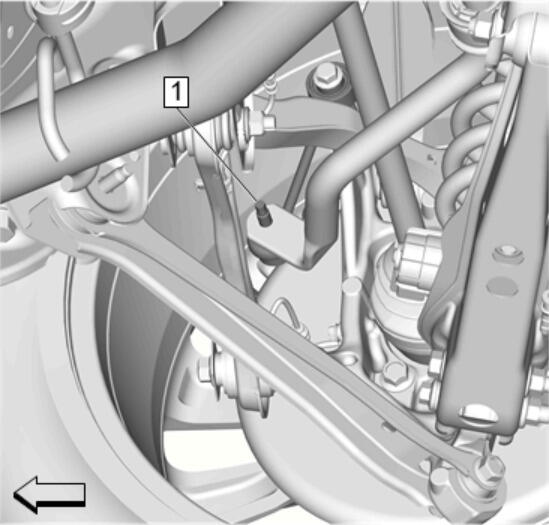

    4. Fig 4: Rear Stabilizer Shaft Link
    GM4281843Courtesy of GENERAL MOTORS COMPANY
  4. Install Rear Stabilizer Shaft Link (1) @Right Side - Stabilizer Shaft Link Replacement
  5. Install Exhaust Muffler. Exhaust Muffler Replacement (LGX)Exhaust Muffler Replacement (LCV)
