Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

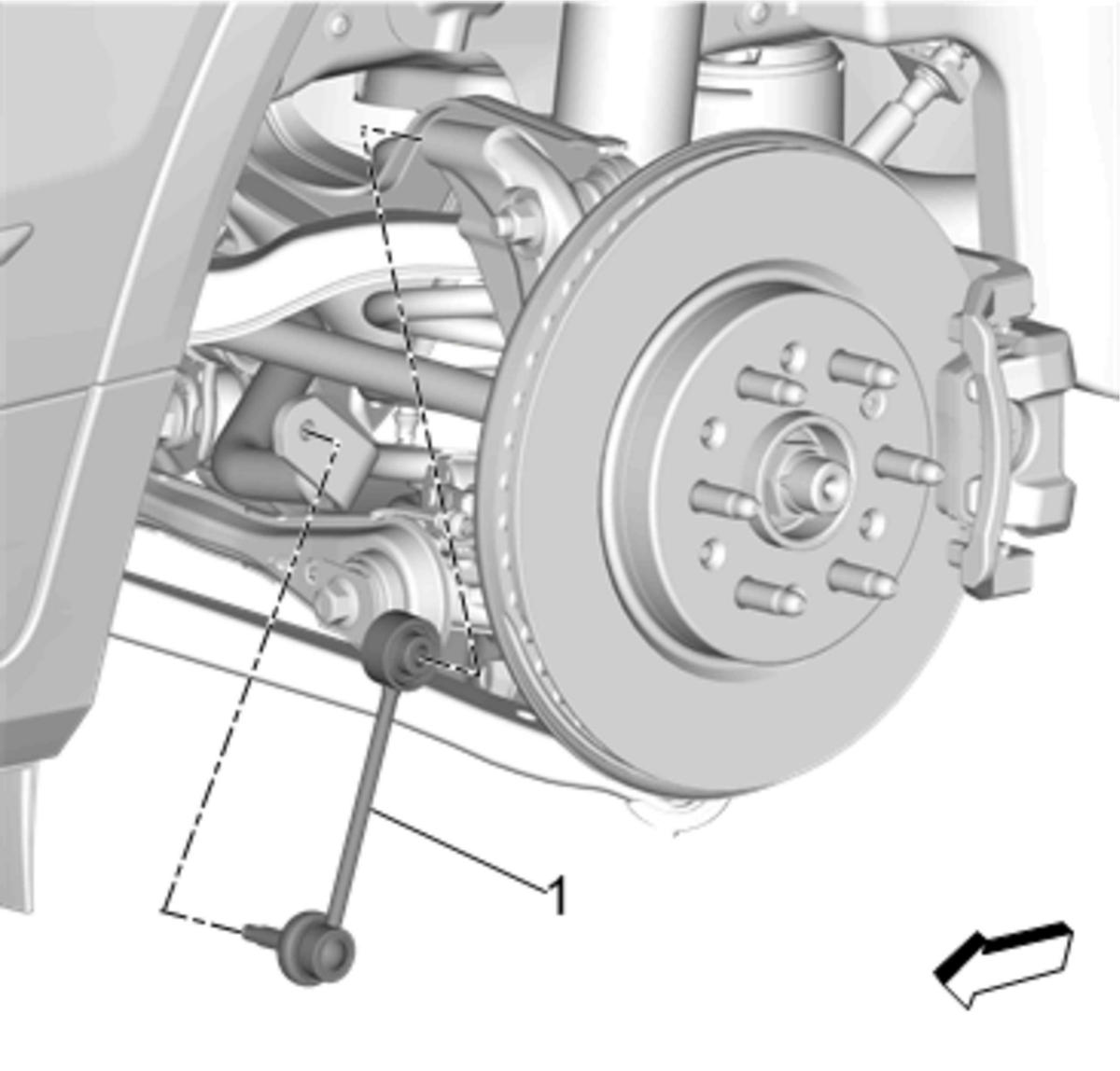

    Fig 1: Rear Stabilizer Shaft Link
    GM4281995Courtesy of GENERAL MOTORS COMPANY
  1. Install Rear Stabilizer Shaft Link (1)
    2. CAUTION:

    Refer to Fastener Caution .

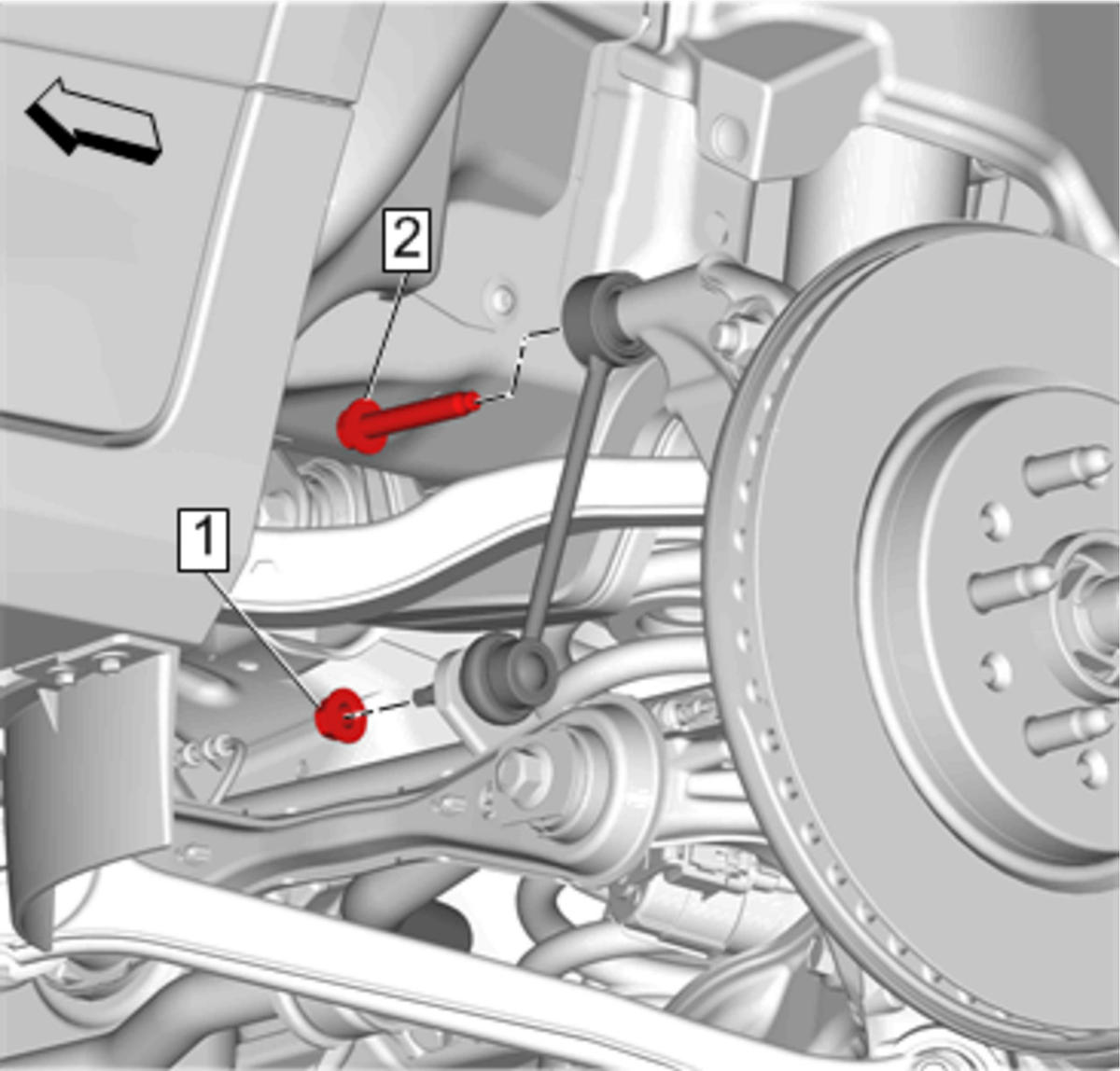

    Fig 2: Rear Stabilizer Shaft Link Nut
    GM4281994Courtesy of GENERAL MOTORS COMPANY
  2. Install Rear Stabilizer Shaft Link Bolt (2) and tighten 58 N.m (43 lb ft)
  3. Install Rear Stabilizer Shaft Link Nut (1) and tighten 68 N.m (50 lb ft)
  4. Lower the vehicle.
