Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Apply grease evenly and ensure complete coverage to the knuckle bearing pilot bore only. Adhesives, Fluids, Lubricants, and Sealers
- Install Rear Wheel Bearing and Hub Assembly (1)

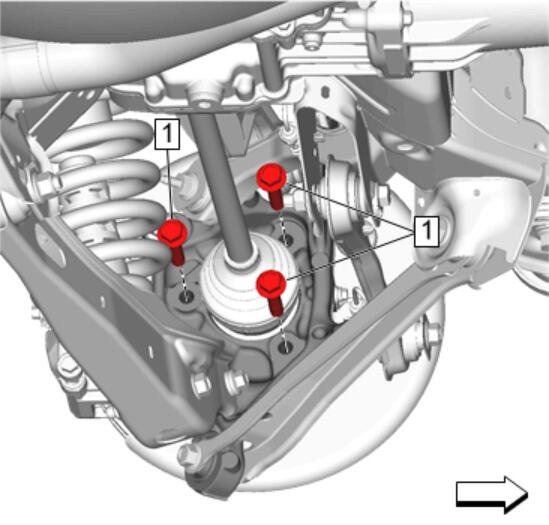

- Install NEW Rear Wheel Bearing and Hub Assembly Bolt (1). Do NOT reuse old bolts.
Tighten
- First Pass: 100 N.m (74 lb ft)
- Final Pass: (15-30 degrees)
- Install Rear Wheel Drive Shaft@Rear Wheel Bearing and Hub Assembly Rear Wheel Drive Shaft Replacement - Left Side , or Rear Wheel Drive Shaft Replacement - Right Side
- Install Rear Brake Rotor (1) Rear Brake Rotor Replacement
- Install Rear Wheel Speed Sensor@Knuckle Rear Wheel Speed Sensor Replacement
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
NOTE:
Avoid applying grease to any other machined surface, holes, or threads. Ensure the drain channel at the bottom of the bore is not blocked with grease or debris.
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
