Rear Wheel Bearing Dirt Deflector Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

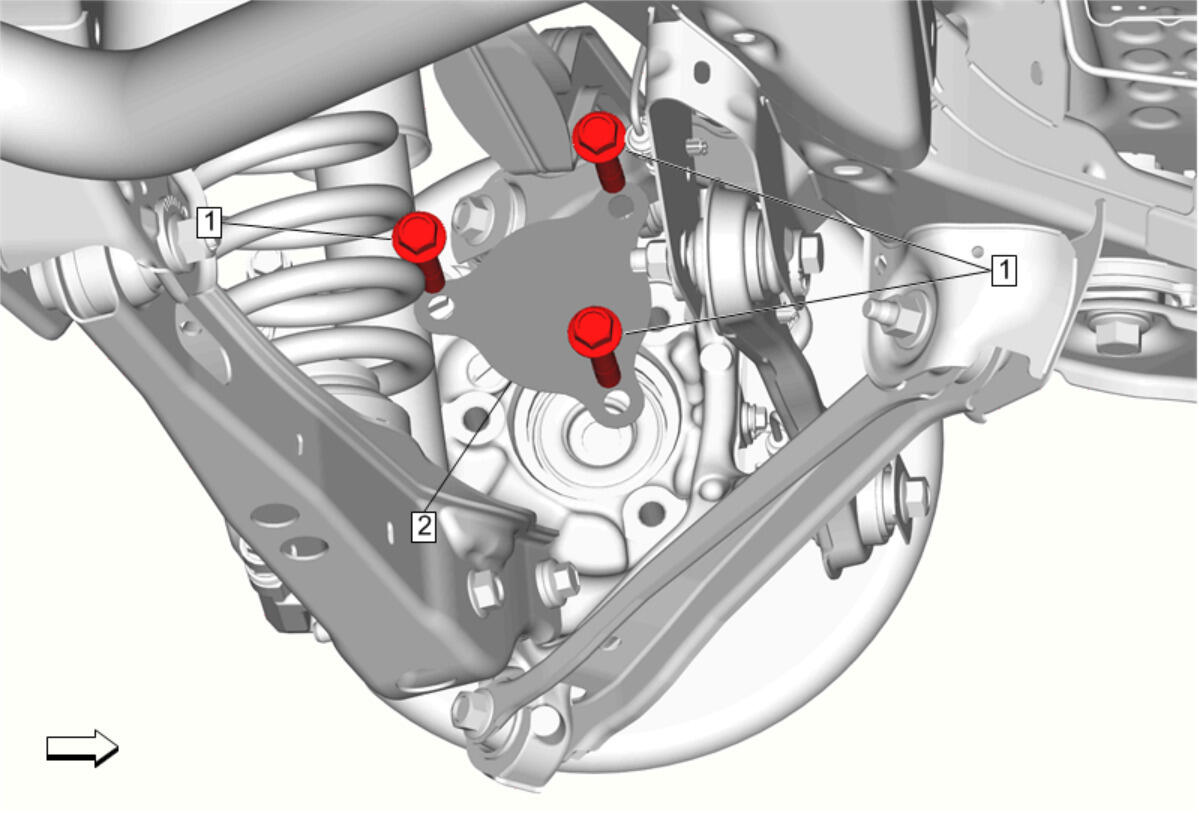

Fig 1: Rear Wheel Bearing Dirt Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
1	Rear Wheel Hub Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Remove and DISCARD the bolts. Install NEW bolts. Do NOT reuse old bolts. Tighten First Pass:100 N.m (74 lb ft) Final Pass: (15-30 degrees)
2	Rear Wheel Bearing Dirt Deflector

Callout

Component Name

Preliminary Procedure
Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

Rear Wheel Hub Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Procedure

Remove and DISCARD the bolts.
Install NEW bolts. Do NOT reuse old bolts.

Tighten

First Pass:100 N.m (74 lb ft)
Final Pass: (15-30 degrees)

Rear Wheel Bearing Dirt Deflector
