Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the rear suspension cradle. Rear Suspension Cradle Replacement (AWD)Rear Suspension Cradle Replacement (FWD)

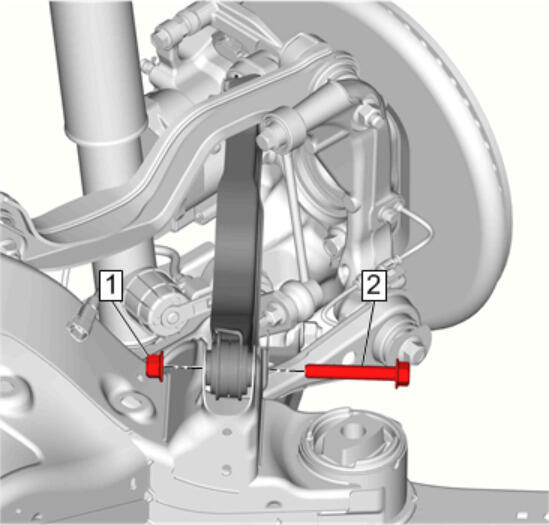

    2. Fig 1: Rear Suspension Upper Trailing Link Inner Nut And Bolt
    GM4286922Courtesy of GENERAL MOTORS COMPANY
  2. Remove Rear Suspension Upper Trailing Link Inner Nut (1)
  3. Remove Rear Suspension Upper Trailing Link Inner Bolt (2) and DISCARD

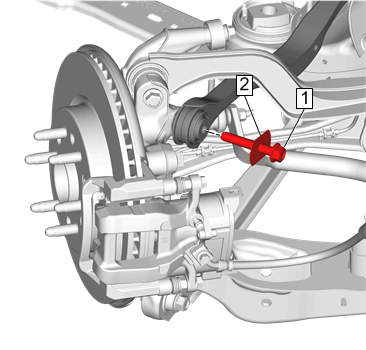

    4. Fig 2: Rear Suspension Upper Trailing Link Outer Bolt
    GM4286927Courtesy of GENERAL MOTORS COMPANY
  4. Remove Rear Suspension Upper Trailing Link Outer bolt (1) and washer (2) and DISCARD the bolt.
    5. Fig 3: Rear Suspension Upper Trailing Link
    GM4286933Courtesy of GENERAL MOTORS COMPANY
  5. Remove Rear Suspension Upper Trailing Link (1)
