Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

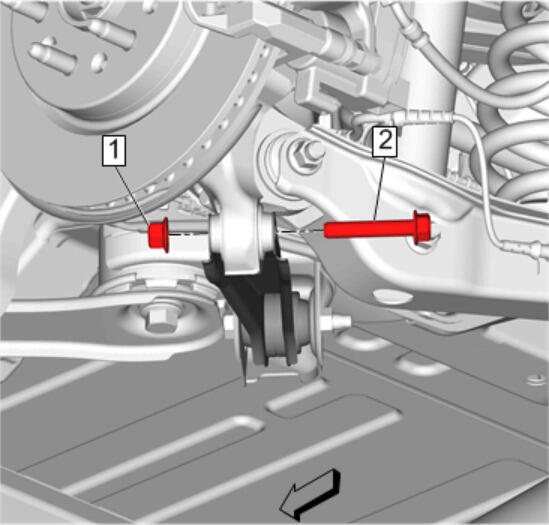

    2. Fig 1: Rear Suspension Lower Trailing Link Outer Nut
    GM4287284Courtesy of GENERAL MOTORS COMPANY
  2. Remove Rear Suspension Lower Trailing Link Outer Nut (1).
  3. Remove Rear Suspension Lower Trailing Link Outer Bolt (2) and DISCARD

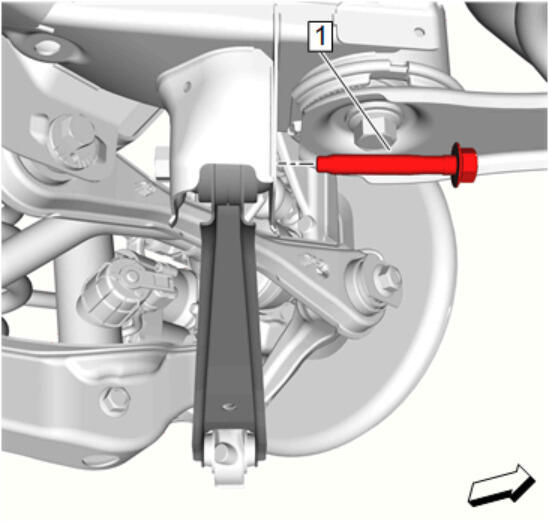

    4. Fig 2: Rear Suspension Lower Trailing Link Inner Nut
    GM4287278Courtesy of GENERAL MOTORS COMPANY
  4. Remove Rear Suspension Lower Trailing Link Inner Nut (1)
  5. Remove Rear Suspension Lower Trailing Link Inner Bolt (2) and DISCARD
    6. Fig 3: Rear Suspension Lower Trailing Link
    GM4287288Courtesy of GENERAL MOTORS COMPANY
  6. Remove Rear Suspension Lower Trailing Link (1)
