Rear Shock Absorber Mount Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

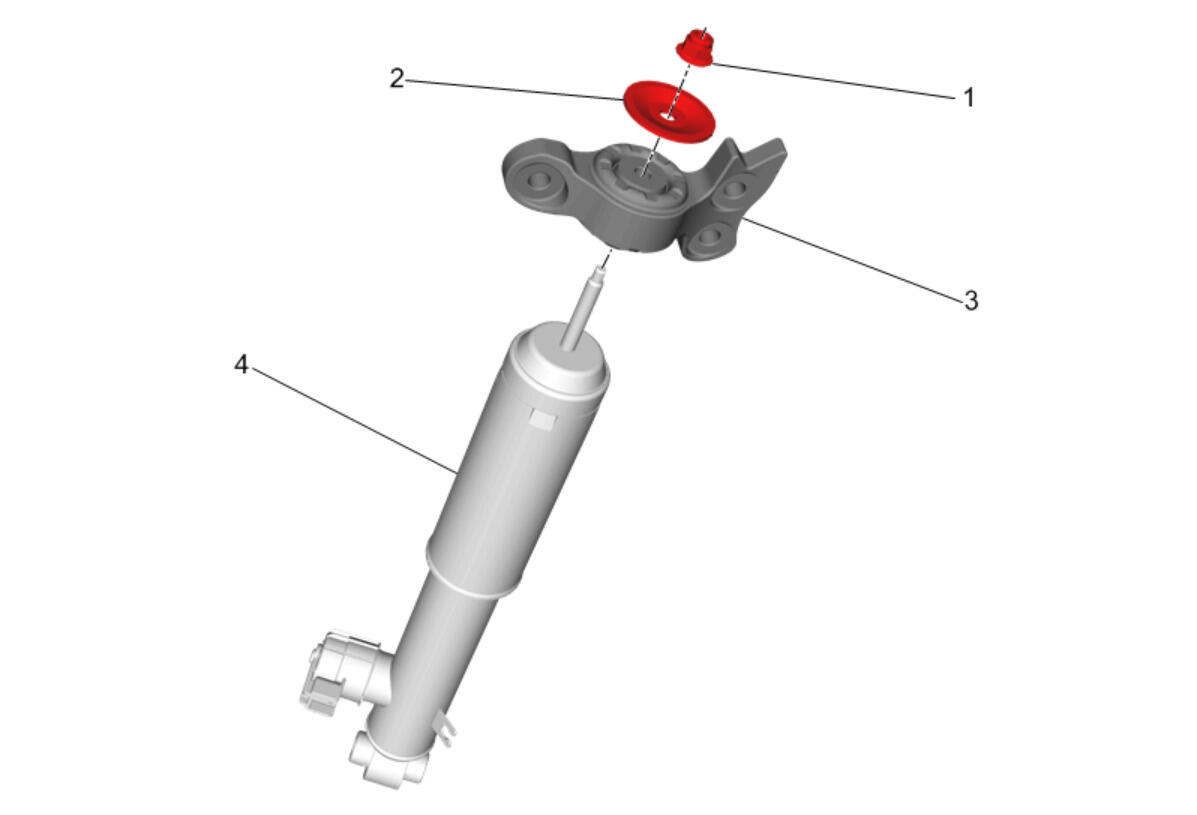

Fig 1: Rear Shock Absorber Mount

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Tire and Wheel Removal and Installation Shock Absorber Replacement
1	CAUTION: Refer to Fastener Caution . Shock Absorber NutTighten 25 N.m (18 lb ft)
2	Washer
3	Shock Absorber Mount
4	Shock Absorber
