Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

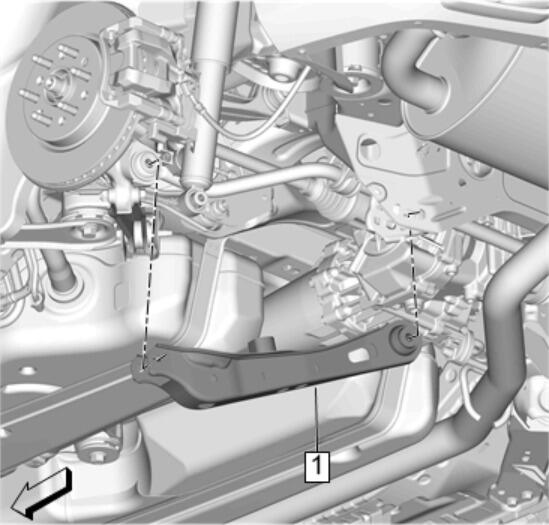

    Fig 1: Rear Suspension Lower Control Arm
    GM4285083Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install Rear Suspension Lower Control Arm (1).

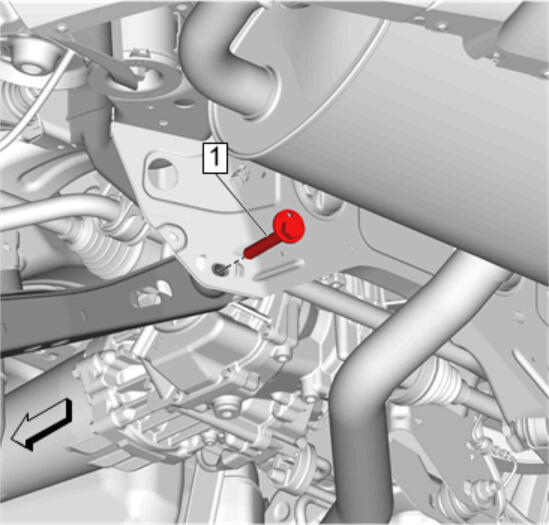

    2. Fig 2: Rear Suspension Lower Control Arm Inner Bolt
    GM4285080Courtesy of GENERAL MOTORS COMPANY
  2. Install Rear Suspension Lower Control Arm Inner Bolt (1).

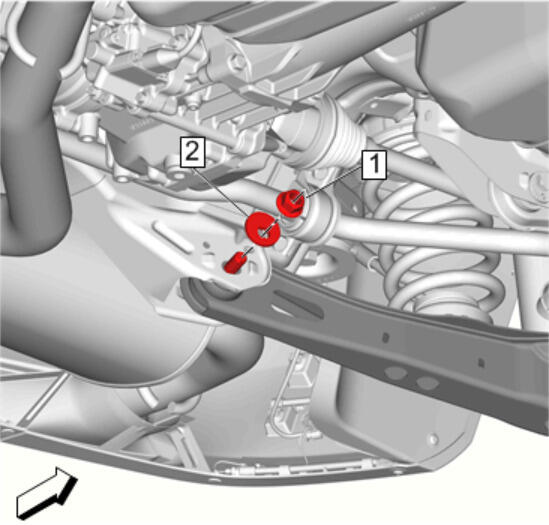

    3. Fig 3: Rear Suspension Lower Control Arm Inner Nut And Rear Suspension Lower Control Arm Adjust Cam
    GM4285057Courtesy of GENERAL MOTORS COMPANY
  3. Install Rear Suspension Lower Control Arm Adjust Cam (2).
  4. Install Rear Suspension Lower Control Arm Inner Nut (1), but do NOT tighten
    5. Fig 4: Rear Coil Spring
    GM4285077Courtesy of GENERAL MOTORS COMPANY
  5. Install Rear Coil Spring Lower Insulator (2).
  6. Install Rear Coil Spring (1).
  7. Install Rear Coil Spring Insulator (3).
    8. Fig 5: Rear Suspension Lower Control Arm
    GM4285185Courtesy of GENERAL MOTORS COMPANY
  8. Raise the rear suspension lower control arm (1) back into position.
    9. Fig 6: Rear Suspension Lower Control Arm Outer Nut
    GM4285051Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

  9. Install NEW Rear Suspension Lower Control Arm Outer Bolt (2).
  10. Install Rear Suspension Lower Control Arm Outer Nut (1).

    Tighten the Bolt

    1. First Pass: 160 N.m (118 lb ft)
    2. Final Pass: (90-105 degrees)
    11. Fig 7: Rear Suspension Lower Control Arm Inner Nut
    GM4285168Courtesy of GENERAL MOTORS COMPANY
  11. Rear Suspension Lower Control Arm Inner Nut (1) Tighten 160 N.m (118 lb ft)
    12. Fig 8: Rear Shock Absorber Bolt
    GM4282239Courtesy of GENERAL MOTORS COMPANY
  12. Install Rear Shock Absorber Bolt (2) a NEW bolt.
  13. Install Rear Shock Absorber Nut (1).

    Tighten

    1. First Pass: 100 N.m (74 lb ft)
    2. Final Pass: (90-105 degrees)
  14. Install the parking brake harness to the rear suspension lower control arm.
  15. Install Rear Suspension Lower Trailing Link Rear Suspension Lower Trailing Link Replacement
    16. Fig 9: Rear Shock Absorber Harness
    GM4285044Courtesy of GENERAL MOTORS COMPANY
  16. If equipped with F45, install the rear shock absorber harness (1) to the rear suspension lower control arm.
  17. Remove the support from the rear suspension lower control arm.
  18. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation .
  19. Verify the rear camber specifications and adjust as necessary. Rear Camber Adjustment
