Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

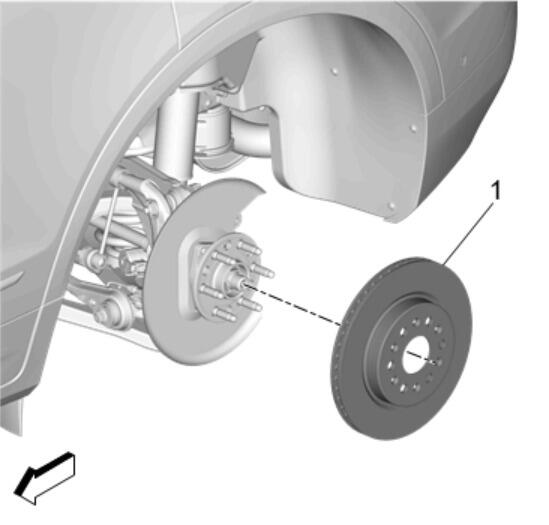

    2. Fig 1: Rear Brake Rotor
    GM4281772Courtesy of GENERAL MOTORS COMPANY
  2. Remove Rear Brake Rotor. Rear Brake Rotor Replacement
  3. Remove Rear Wheel Speed Sensor@Knuckle. Rear Wheel Speed Sensor Replacement

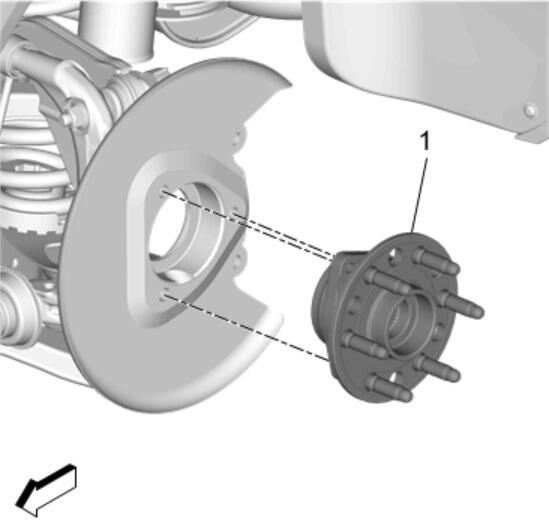

    4. Fig 2: Rear Wheel Bearing and Hub Assembly
    GM4280786Courtesy of GENERAL MOTORS COMPANY
  4. Remove Rear Wheel Bearing and Hub Assembly (1). Rear Wheel Bearing and Hub Replacement (AWD) Rear Wheel Bearing and Hub Replacement (FWD)

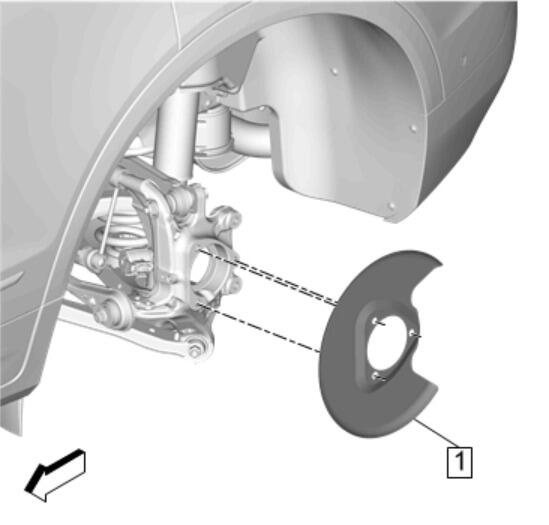

    5. Fig 3: Rear Brake Shield
    GM4281770Courtesy of GENERAL MOTORS COMPANY
  5. Remove Rear Brake Shield (1). Rear Brake Shield Replacement

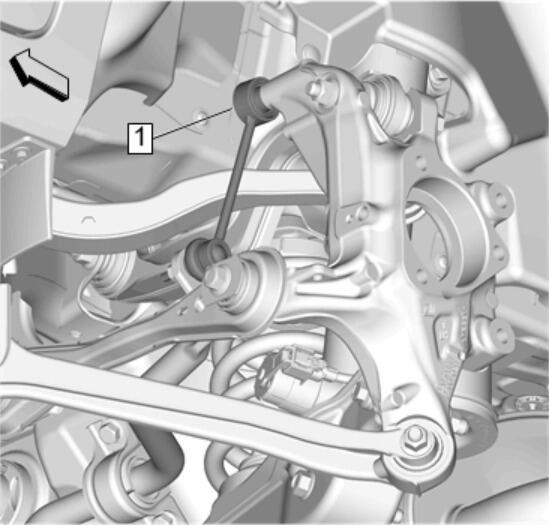

    6. Fig 4: Stabilizer Shaft Link
    GM4281559Courtesy of GENERAL MOTORS COMPANY
  6. Separate Stabilizer Shaft Link (1) @Knuckle. Stabilizer Shaft Link Replacement

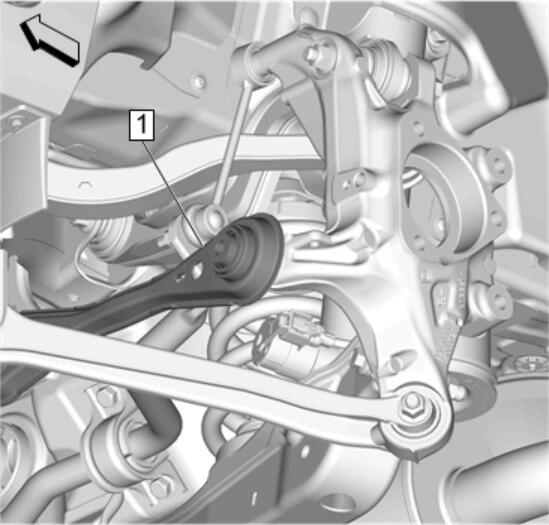

    7. Fig 5: Rear Suspension Adjust Link
    GM4281568Courtesy of GENERAL MOTORS COMPANY
  7. Separate Rear Suspension Adjust Link (1) @Knuckle. Adjust Link Replacement

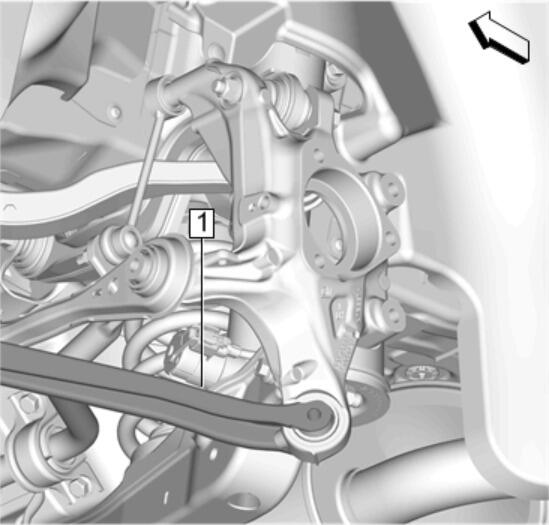

    8. Fig 6: Rear Suspension Lower Trailing Link
    GM4281569Courtesy of GENERAL MOTORS COMPANY
  8. Separate Rear Suspension Lower Trailing Link (1) @Knuckle. Rear Suspension Lower Trailing Link Replacement

    DISCARD the bolt.

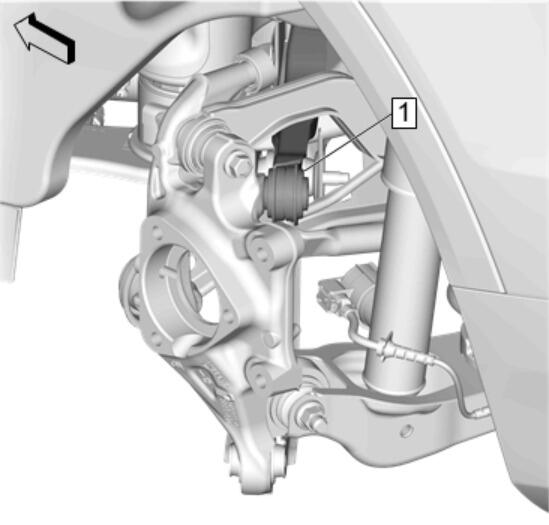

    9. Fig 7: Rear Suspension Upper Trailing Link
    GM4281570Courtesy of GENERAL MOTORS COMPANY
  9. Separate Rear Suspension Upper Trailing Link (1) @Knuckle. Rear Suspension Upper Trailing Link Replacement

    DISCARD the bolt.

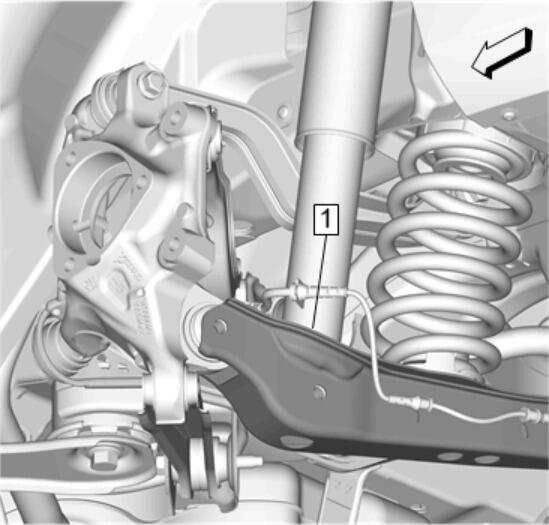

    10. Fig 8: Rear Suspension Lower Control Arm
    GM4281572Courtesy of GENERAL MOTORS COMPANY
  10. Separate Rear Suspension Lower Control Arm (1) @Knuckle. Lower Control Arm Replacement

    DISCARD the bolt.

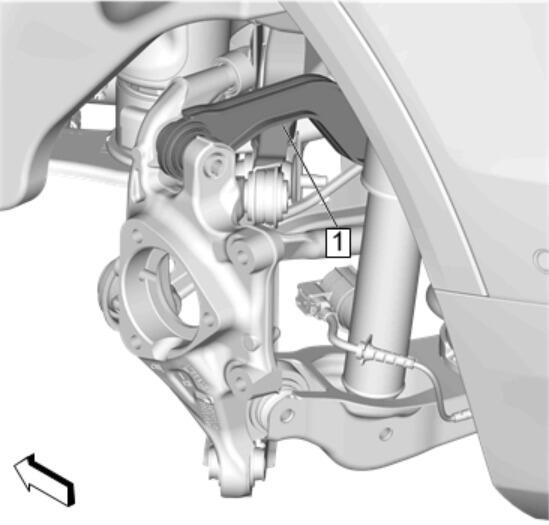

    11. Fig 9: Rear Suspension Upper Lateral Link
    GM4281573Courtesy of GENERAL MOTORS COMPANY
  11. Separate Rear Suspension Upper Lateral Link (1) @Knuckle. Rear Suspension Upper Lateral Link Replacement

    DISCARD the bolt.

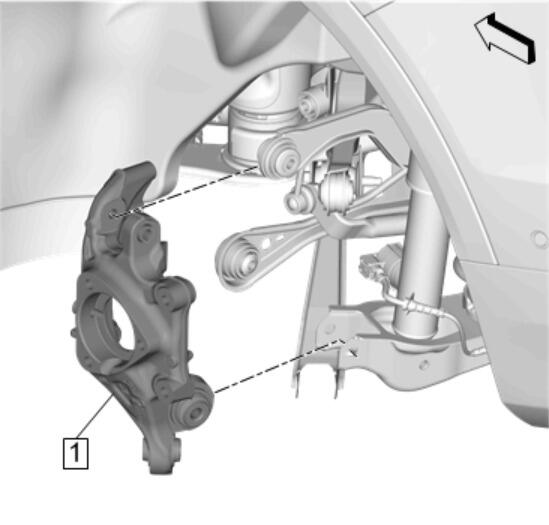

    12. Fig 10: Knuckle
    GM4281574Courtesy of GENERAL MOTORS COMPANY
  12. Remove Knuckle (1).
