Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

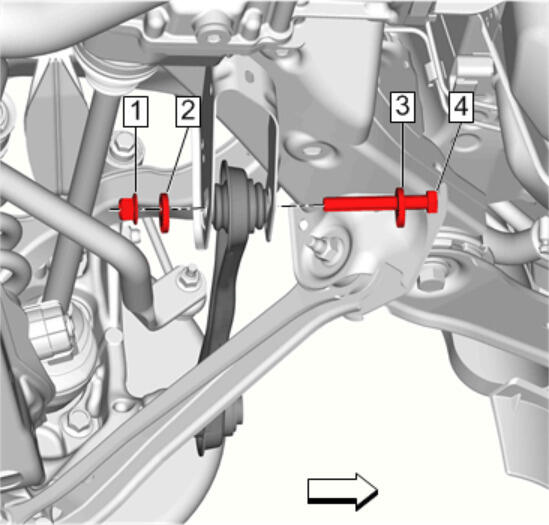

- Install Rear Suspension Adjust Link (1)
- Install Rear Suspension Adjust Link Inner Bolt (3)
- Install Rear Suspension Adjust Link Cam (4)
- Install Rear Suspension Adjust Link Cam (2)
- Install Rear Suspension Adjust Link Nut (1) and tighten 100 N.m (74 lb ft)

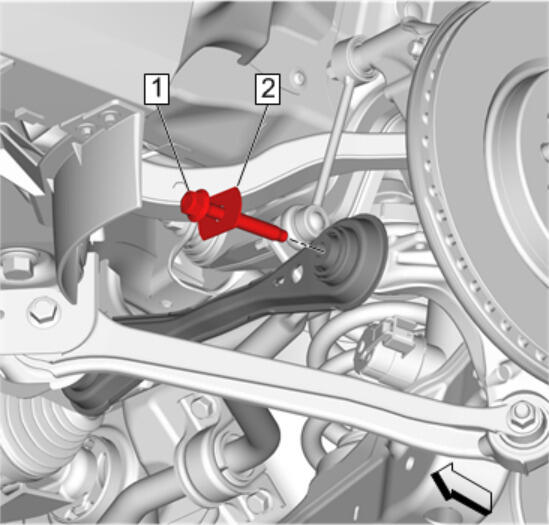

- Install a NEW rear suspension adjust link bolt (1) and washer (2).
Tighten
- First Pass: 100 N.m (74 lb ft)
- Final Pass: (90-105 degrees)

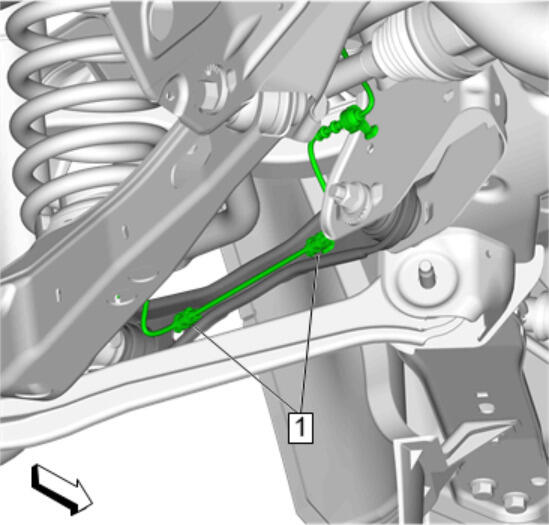

- Install Rear Wheel Speed Sensor Harness (1) @Rear Suspension Adjust Link
- Check the rear wheel alignment. Rear Toe Adjustment
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
