Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Front Wheel Bearing and Hub Assembly. Refer to Front Wheel Bearing and Hub Replacement (Left Side, AWD or FWD) Front Wheel Bearing and Hub Replacement (Right Side, AWD) Front Wheel Bearing and Hub Replacement (Right Side, FWD)

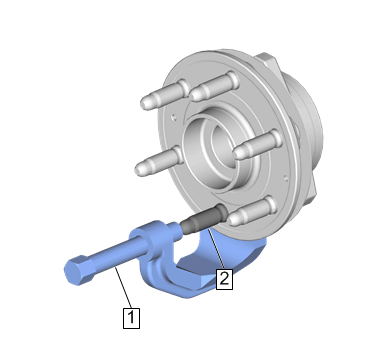

    2. Fig 1: Separator Tool And Wheel Stud
    GM4376199Courtesy of GENERAL MOTORS COMPANY
  2. Use the CH-43631  separator (1) to remove the wheel stud (2) from the flange on the hub assembly.

    DISCARD the stud.
