Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

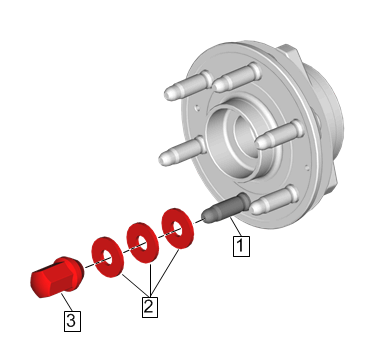

Fig 1: NEW Wheel Stud, Flat Washers And Old Wheel Nut

Courtesy of GENERAL MOTORS COMPANY

Position the NEW wheel stud (1) in the flange of the hub assembly.
Install flat washers (2) and an OLD wheel nut (3) on the wheel stud.
Use a suitable tool to prevent the flange on the hub assembly from rotating.
Tighten the wheel nut until the wheel stud is firmly seated.
Remove the wheel nut and flat washers.
Install Front Wheel Bearing and Hub Assembly. Refer to Front Wheel Bearing and Hub Replacement (Left Side, AWD or FWD) Front Wheel Bearing and Hub Replacement (Right Side, AWD) Front Wheel Bearing and Hub Replacement (Right Side, FWD)
