Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
  2. {If equipped}, Disconnect Electrical Connector @ Strut Assembly

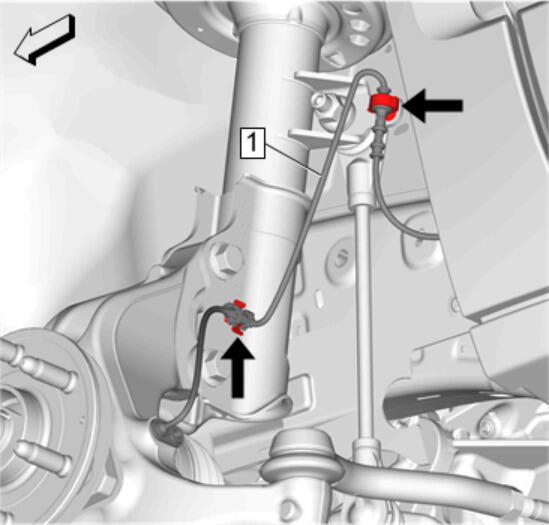

    3. Fig 1: Front Wheel Speed Sensor Wiring Harness
    GM4376384Courtesy of GENERAL MOTORS COMPANY
  3. Separate Front Wheel Speed Sensor Wiring Harness (1) @ Strut Assembly. Refer to Front Wheel Speed Sensor Replacement (Left)Front Wheel Speed Sensor Replacement (Right)

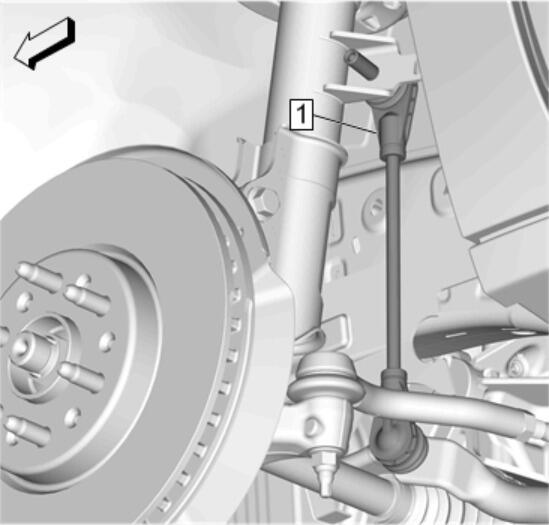

    4. Fig 2: Front Stabilizer Shaft Link
    GM4376391Courtesy of GENERAL MOTORS COMPANY
  4. Separate Front Stabilizer Shaft Link (1) @ Strut Assembly. Refer to Stabilizer Shaft Link Replacement

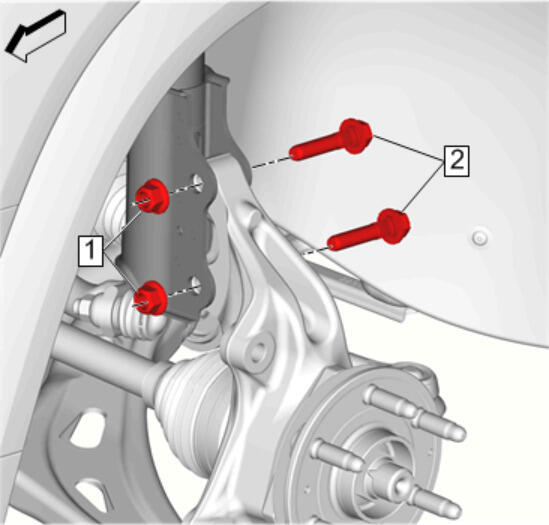

    5. Fig 3: Steering Knuckle Nuts And Bolts
    GM4376385Courtesy of GENERAL MOTORS COMPANY
  5. Remove Steering Knuckle Nuts (1) (Qty: 2)
  6. Remove Steering Knuckle Bolts (2) (Qty: 2)

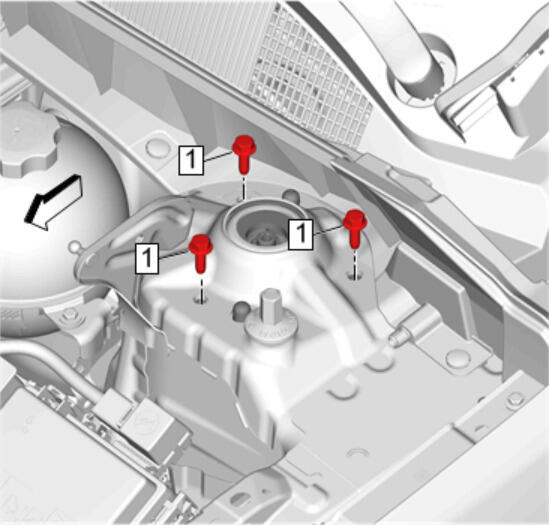

    7. Fig 4: Front Suspension Strut Bolts
    GM4376387Courtesy of GENERAL MOTORS COMPANY
  7. Remove Front Suspension Strut Bolts (1) (Qty: 3)

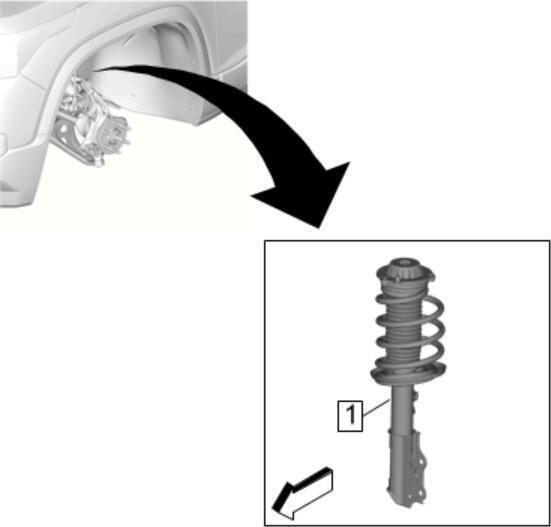

    8. Fig 5: Front Suspension Strut Assembly
    GM4376389Courtesy of GENERAL MOTORS COMPANY
  8. Remove the front suspension strut assembly (1) from the vehicle.
  9. Transfer components as necessary.
