Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

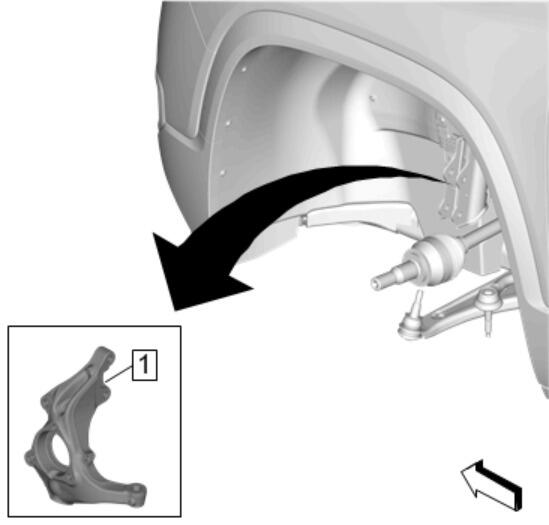

    Fig 1: Steering Knuckle
    GM4376375Courtesy of GENERAL MOTORS COMPANY
  1. Position the steering knuckle (1) on the vehicle.

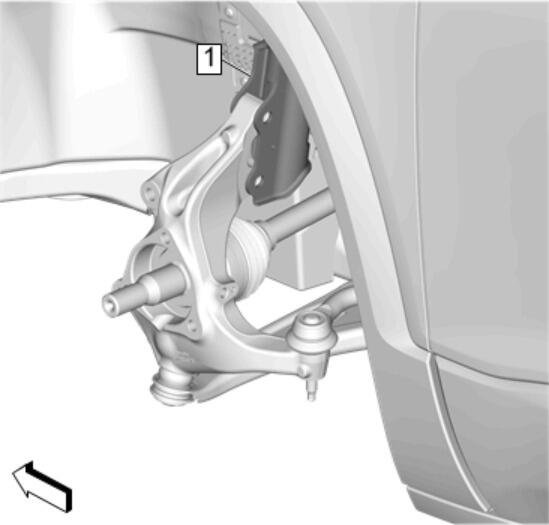

    2. Fig 2: Strut Assembly
    GM4376374Courtesy of GENERAL MOTORS COMPANY
  2. Install Strut Assembly (1) @ Steering Knuckle. Refer to Strut Assembly Removal and Installation
    3. Fig 3: Front Lower Control Arm
    GM4280674Courtesy of GENERAL MOTORS COMPANY
  3. Install Front Lower Control Arm (1) @ Steering Knuckle. Refer to Lower Control Arm Replacement
    4. Fig 4: Steering Linkage Outer Tie Rod
    GM4376373Courtesy of GENERAL MOTORS COMPANY
  4. Install Steering Linkage Outer Tie Rod (1) @ Steering Knuckle. Refer to Steering Linkage Outer Tie Rod Replacement

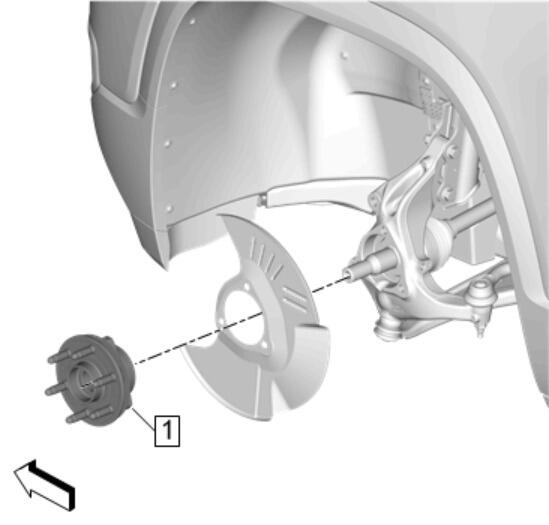

    5. Fig 5: Front Wheel Bearing and Hub Assembly
    GM4376371Courtesy of GENERAL MOTORS COMPANY
  5. Install Front Wheel Bearing and Hub Assembly (1). Refer to Front Wheel Bearing and Hub Replacement (Left Side, AWD or FWD) Front Wheel Bearing and Hub Replacement (Right Side, AWD) Front Wheel Bearing and Hub Replacement (Right Side, FWD)
  6. Measure and adjust the wheel alignment. Refer to Wheel Alignment Measurement
