Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
  2. Before continuing, inspect the brake lines in the area of the front stabilizer shaft to ensure that they are NOT contacting the shaft at any location. Refer to Brake Pipe and Hose Inspection

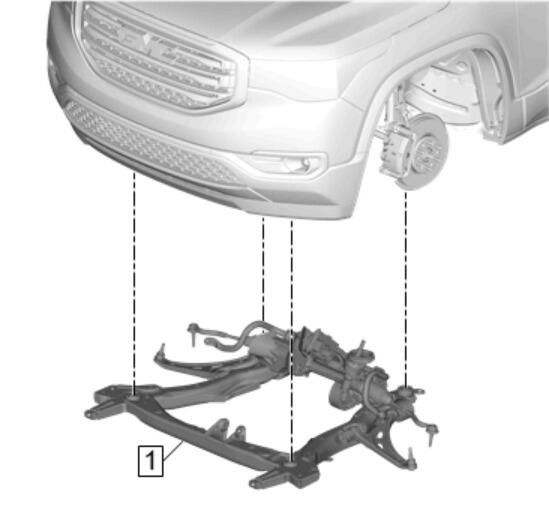

    3. Fig 1: Drivetrain and Front Suspension Cradle
    GM4376364Courtesy of GENERAL MOTORS COMPANY
  3. Remove Drivetrain and Front Suspension Cradle (1). Refer to Drivetrain and Front Suspension Cradle Replacement (AWD)Drivetrain and Front Suspension Cradle Replacement (FWD)

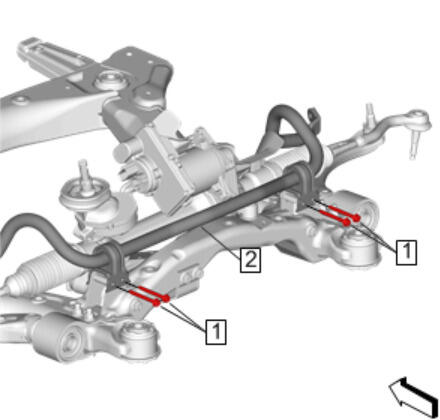

    4. Fig 2: Front Stabilizer Shaft Insulator Clamp Bolts And Front Stabilizer Shaft
    GM4281690Courtesy of GENERAL MOTORS COMPANY
  4. Remove Front Stabilizer Shaft Insulator Clamp Bolts (1) (Qty: 4)

    DISCARD the bolts.

  5. Remove the front stabilizer shaft (2) from the drivetrain and front suspension cradle.
