Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure that the steering wheel is set in a straight ahead position.

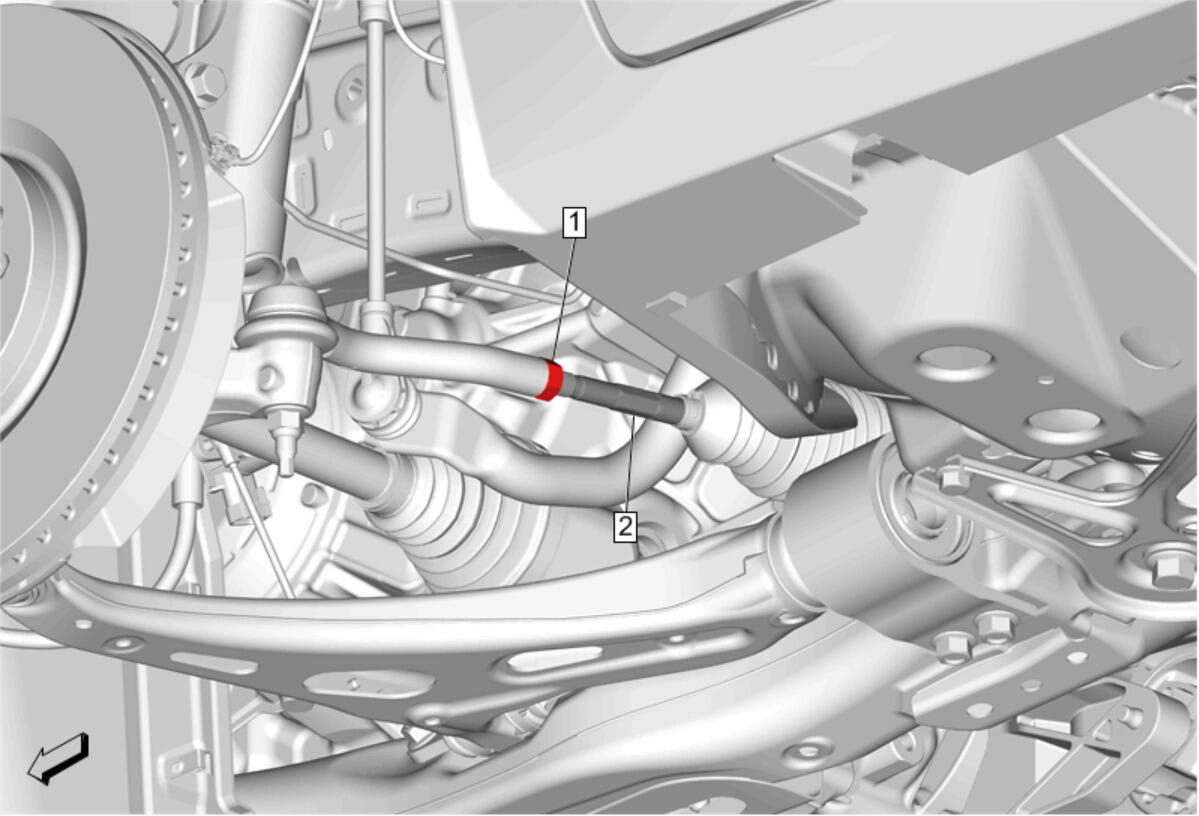

- Loosen the steering linkage inner tie rod nut (1).
- Adjust the toe to specification by turning the steering linkage inner tie rod (2). Wheel Alignment Specifications
- Tighten the steering linkage inner tie rod nut (1) to 70 N.m (52 lb ft).
- The steering angle sensor must be re-centered, the steering stops must be relearned. Steering Wheel Angle Sensor Centering
CAUTION:
Refer to Fastener Caution .
