Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

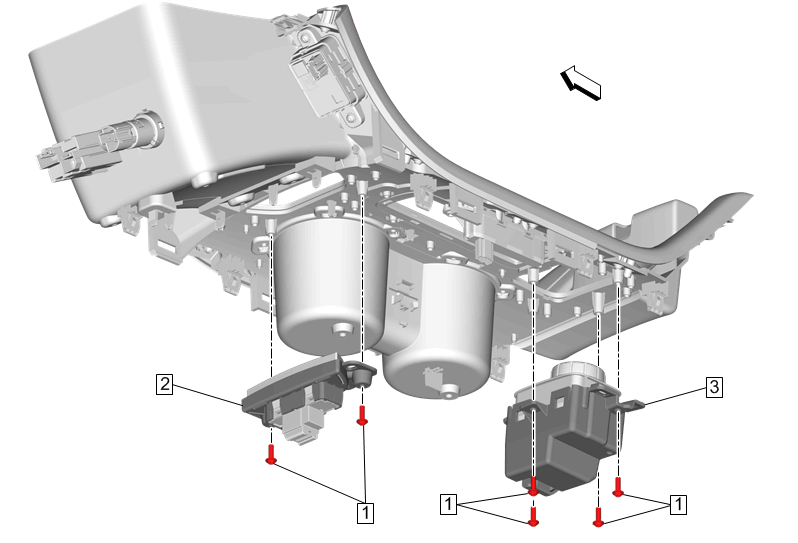

    Fig 1: Front Floor Console Accessory Trim Plates And Retaining Bolts
    GM4395994Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install Front Floor Console Accessory Trim Plates (2, 3) (Qty: 2)
  2. Install and tighten Front Floor Console Bolts (1) (Qty: 6) to 1 N.m (9 lb in)
    3. Fig 2: Front Floor Console Trim Plate
    GM4393979Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connectors.
  4. Install Front Floor Console Trim Plate (1)
    5. Fig 3: Front Floor Console Trim Plate
    GM4393675Courtesy of GENERAL MOTORS COMPANY
  5. Install Front Floor Console Trim Plate (1)
  6. Carefully guide the front floor console pins into the instrument panel assembly.
    7. Fig 4: Front Floor Console Bolt Access Hole Cover And Console Retainer Bolts - Right Side
    GM4446766Courtesy of GENERAL MOTORS COMPANY
  7. Install and tighten Front Floor Console Retainer Bolts (2) (Qty: 5) to 9 N.m (80 lb in)
  8. Install Front Floor Console Bolt Access Hole Cover (1)
    9. Fig 5: Front Floor Console Bolt Access Hole Cover And Console Retainer Bolts - Left Side
    GM4446760Courtesy of GENERAL MOTORS COMPANY
  9. Install and tighten Front Floor Console Retainer Bolts (2) (Qty: 5) to 9 N.m (80 lb in)
  10. Install Front Floor Console Bolt Access Hole Cover (1)
    11. Fig 6: Front Floor Console Cup Holder Liner And Trim Plate Bolts
    GM4393402Courtesy of GENERAL MOTORS COMPANY
  11. Install and tighten Front Floor Console Trim Plate Bolts (2) (Qty: 2) to 1 N.m (9 lb in)
  12. Install Front Floor Console Cup Holder Liner (1)
    13. Fig 7: Transmission Control Lever Knob
    GM4356302Courtesy of GENERAL MOTORS COMPANY
  13. Install Transmission Control Lever Knob (3). Refer to Transmission Control Lever Knob Replacement
    14. Fig 8: Front Floor Console Extension Panel - Right
    GM4382579Courtesy of GENERAL MOTORS COMPANY
  14. Install Front Floor Console Extension Panel - Right (3). Refer to Front Floor Console Extension Panel Replacement - Right Side
    15. Fig 9: Front Floor Console Extension Panel - Left
    GM4382575Courtesy of GENERAL MOTORS COMPANY
  15. Install Front Floor Console Extension Panel - Left (3). Refer to Front Floor Console Extension Panel Replacement - Left Side
