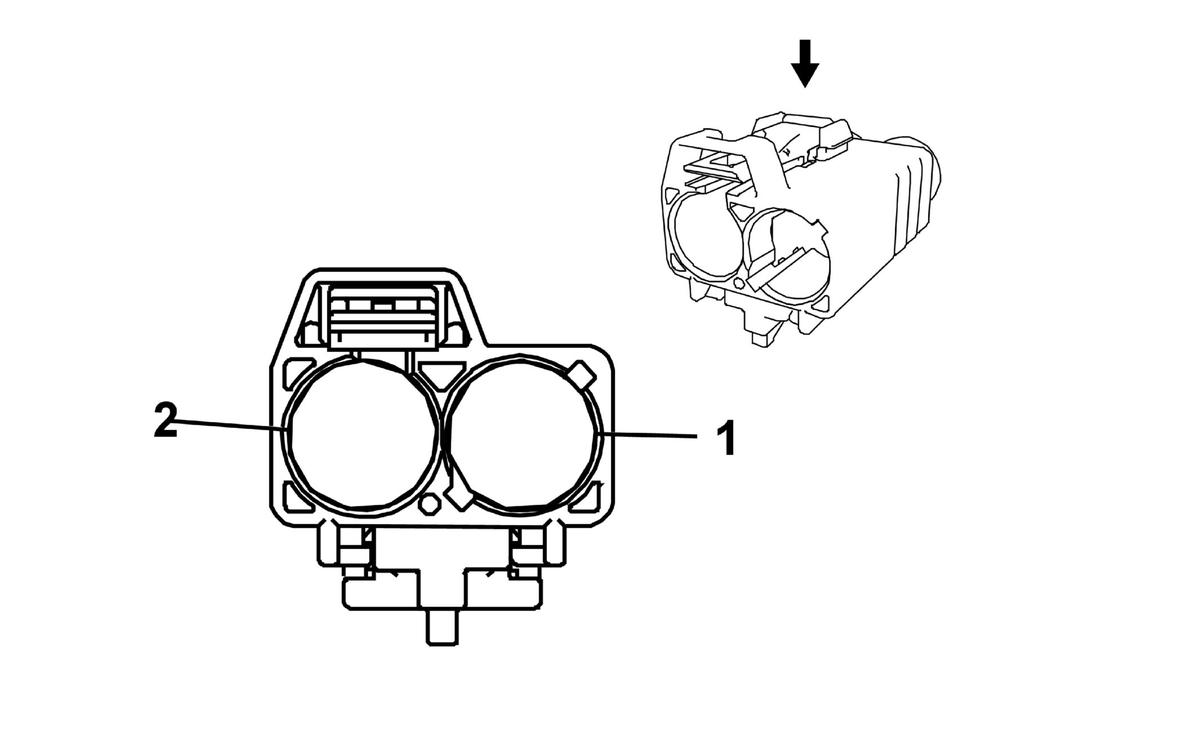

X208 Instrument Panel COAX Harness to Roof Antenna COAX Harness (UE1/UI3)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|
Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 2FAH-NCSJ-C00-6
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (BU)
|
Connector Part Information
- Harness Type: Roof Antenna COAX
- OEM Connector: 2FAH-NCSP-01-9
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way M Coax Type (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
Coax |
- |
I |
- |
(GPS/Cell) Coaxial Antenna Cell/GPS combined Signal |
1 |
- |
Coax |
- |
I |
1 |
| 2 |
- |
Coax |
- |
I |
- |
(Cell only) Coaxial Antenna Cell Phone Signal |
2 |
- |
Coax |
- |
I |
2 |
