Power, Ground, Serial Data, and MIL

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

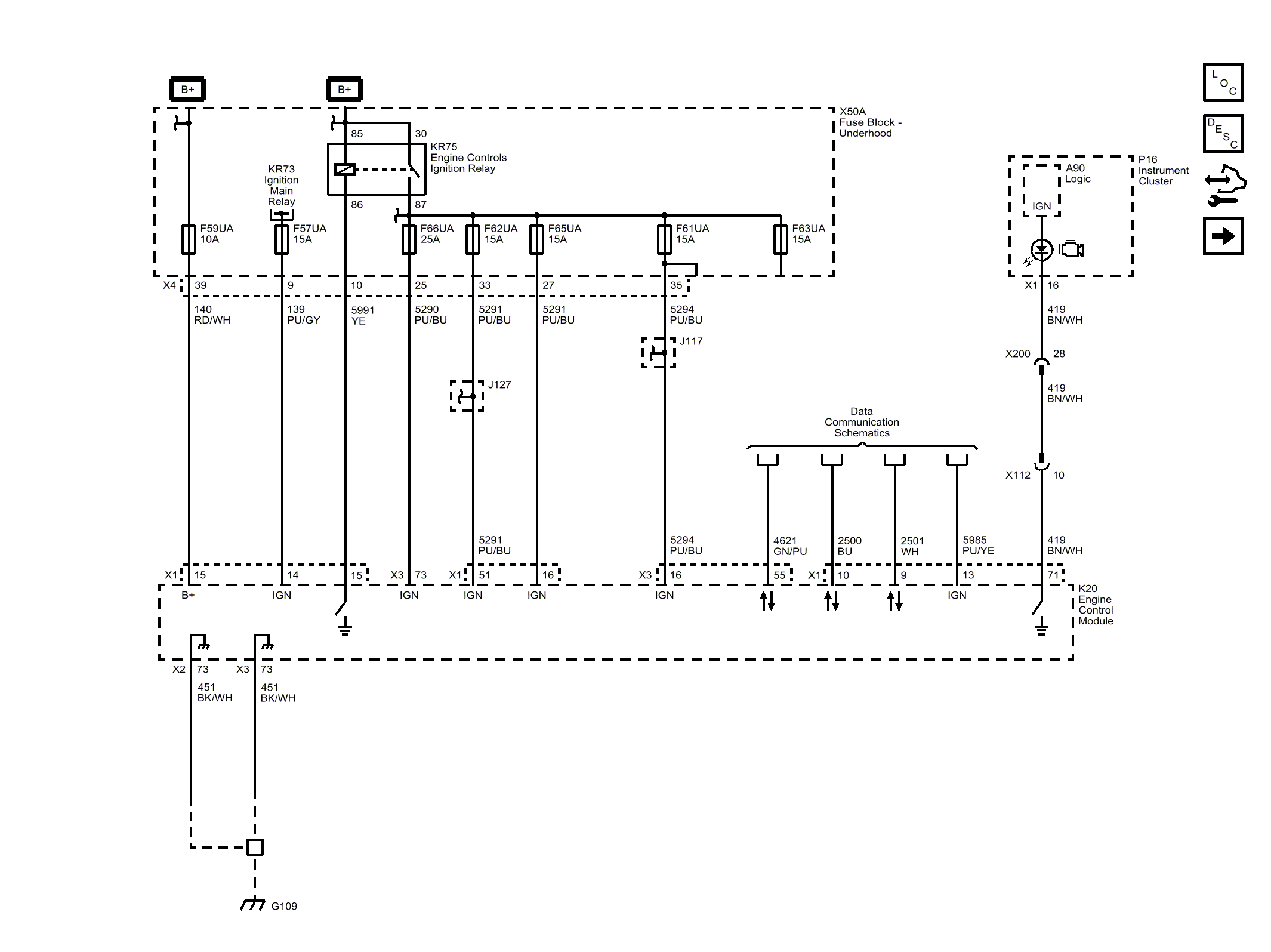

Fig 1: Power, Ground, Serial Data, and MIL
GM4373151Courtesy of GENERAL MOTORS COMPANY
