Ignition Controls - Ignition System

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

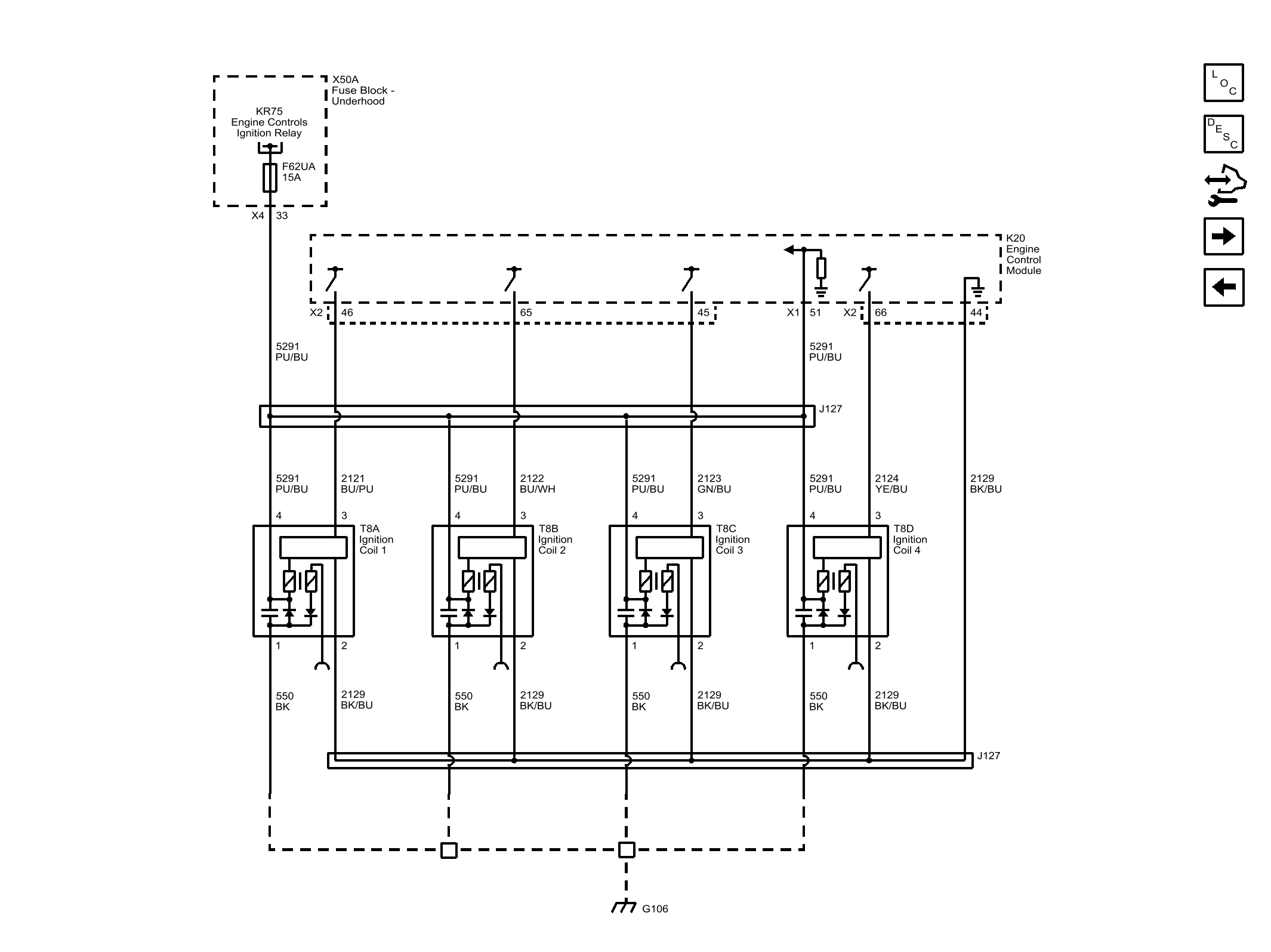

Fig 1: Ignition Controls - Ignition System
GM4373191Courtesy of GENERAL MOTORS COMPANY
