Ignition Controls - Ignition Sensors, and Camshaft Actuators

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

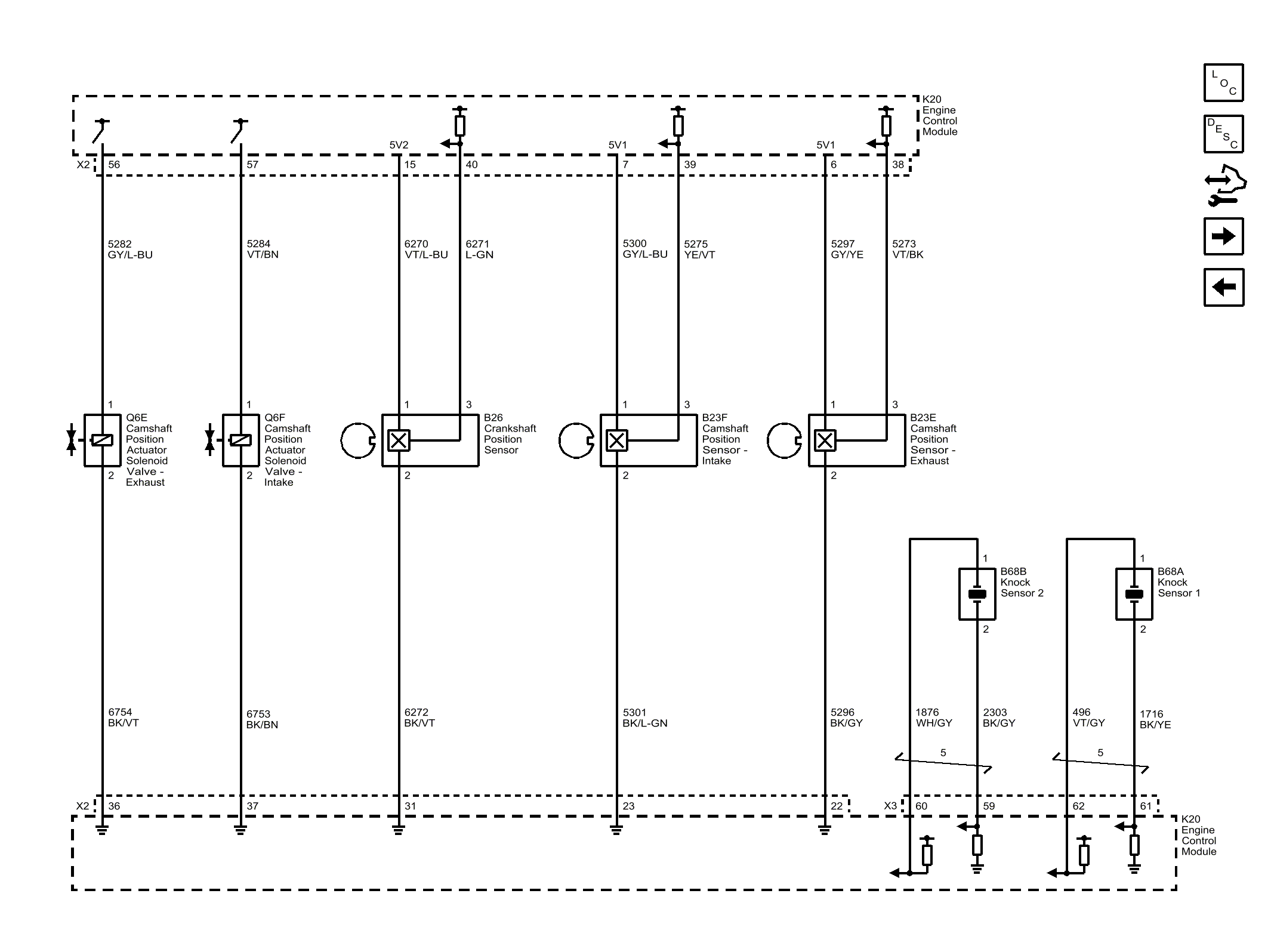

Fig 1: Ignition Controls - Ignition Sensors, and Camshaft Actuators
GM4373193Courtesy of GENERAL MOTORS COMPANY
