Engine Data Sensors - Oxygen Sensors

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

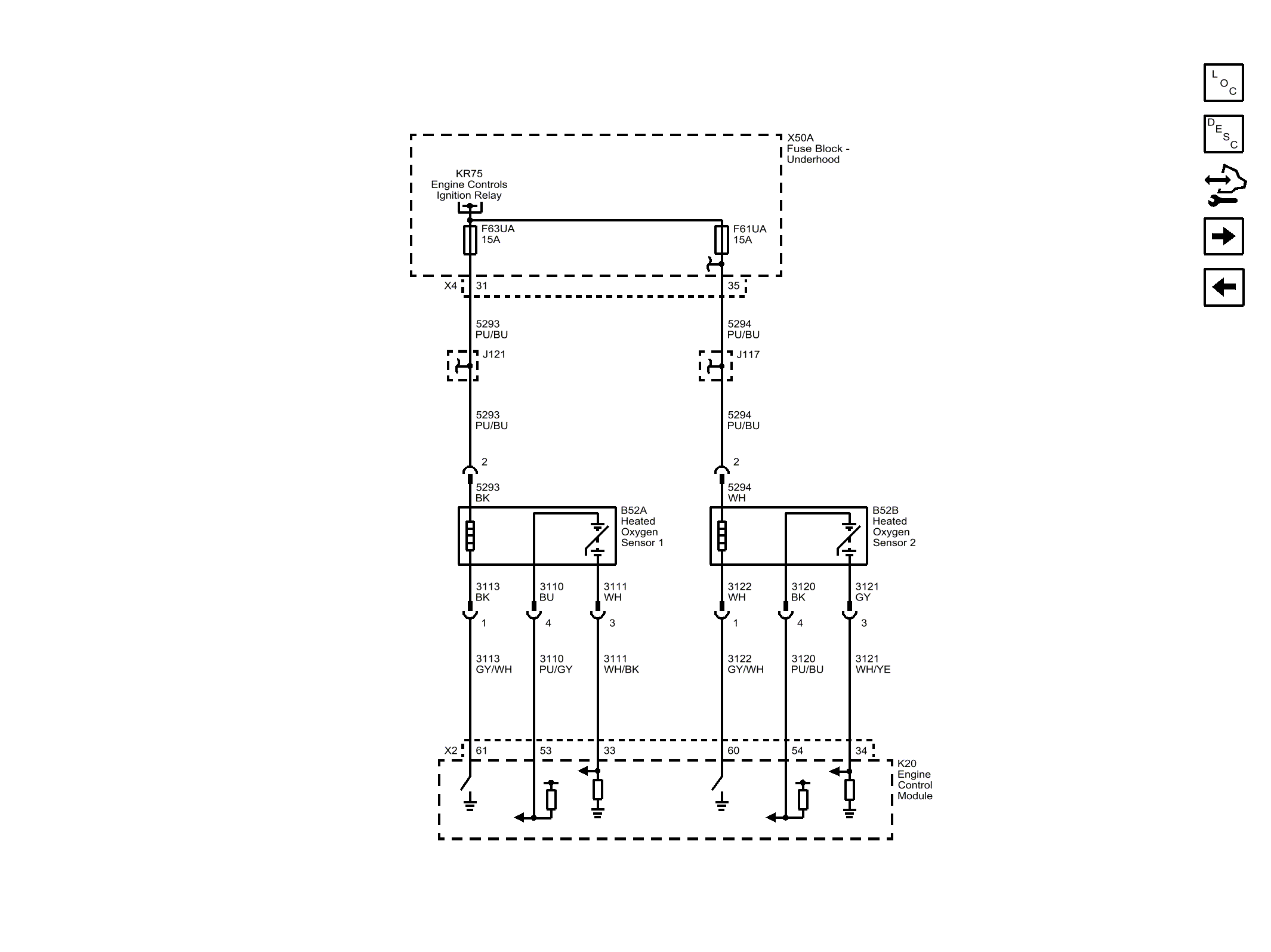

Fig 1: Engine Data Sensors - Oxygen Sensors
GM4373187Courtesy of GENERAL MOTORS COMPANY
