5V1, 5V5, and Low Reference Bus (1 of 2)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

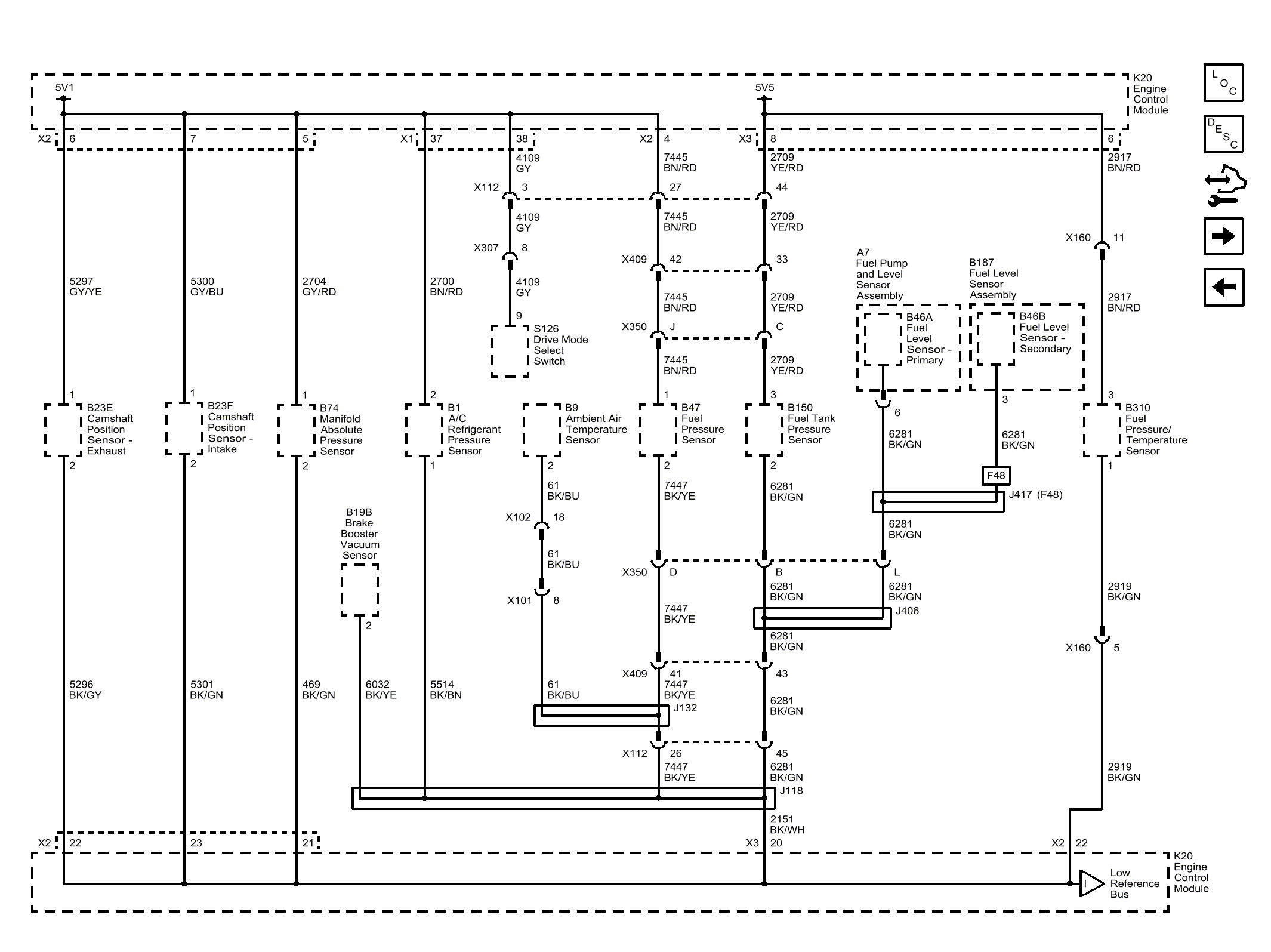

Fig 1: 5V1, 5V5, and Low Reference Bus (1 of 2)
GM4373157Courtesy of GENERAL MOTORS COMPANY
