Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls (M7U or M7W)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

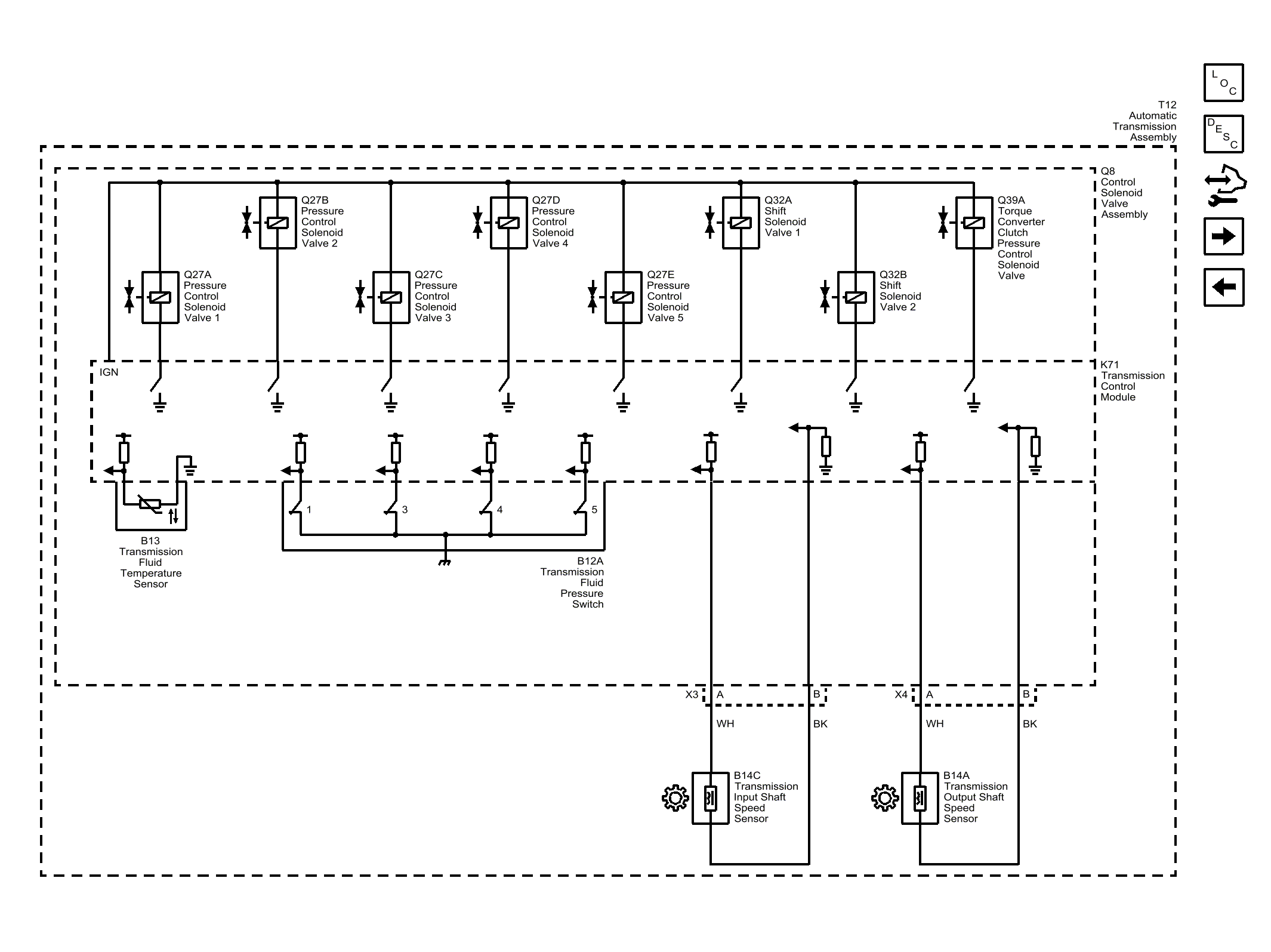

Fig 1: Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls (M7U or M7W)
GM4373467Courtesy of GENERAL MOTORS COMPANY
