Linear Interconnect Network (LIN) (1 of 2)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

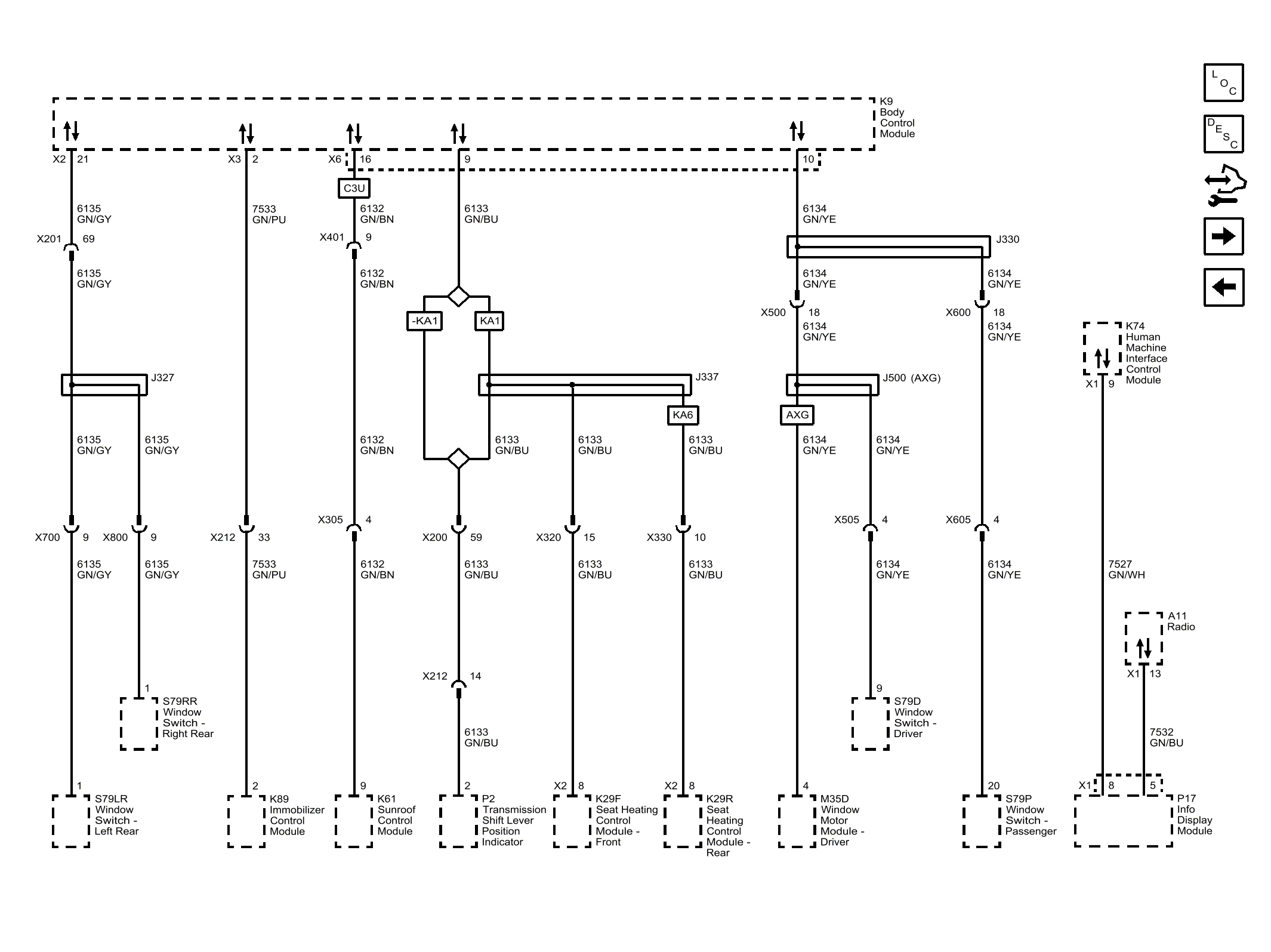

Fig 1: Linear Interconnect Network (LIN) (1 of 2)
GM4373320Courtesy of GENERAL MOTORS COMPANY
