Communications Enable - Object High Speed GMLAN (UGN)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

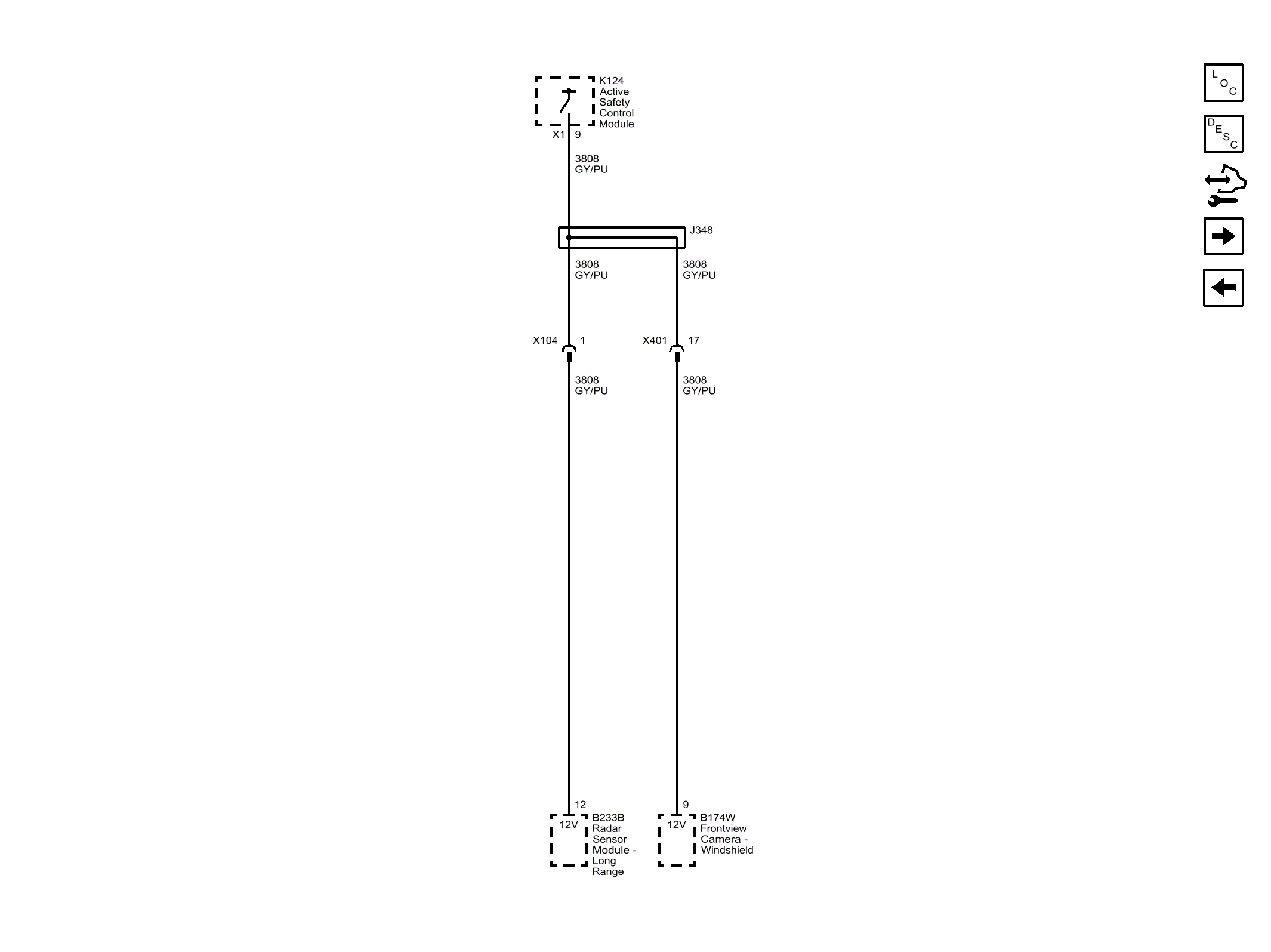

Fig 1: Communications Enable - Object High Speed GMLAN (UGN)
GM4373318Courtesy of GENERAL MOTORS COMPANY
