Section 378 (Data Communication System - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
Power, Ground, Data Communications, and Subsystem References (1 of 4)
Power, Ground, Data Communications, and Subsystem References (1 of 4)
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

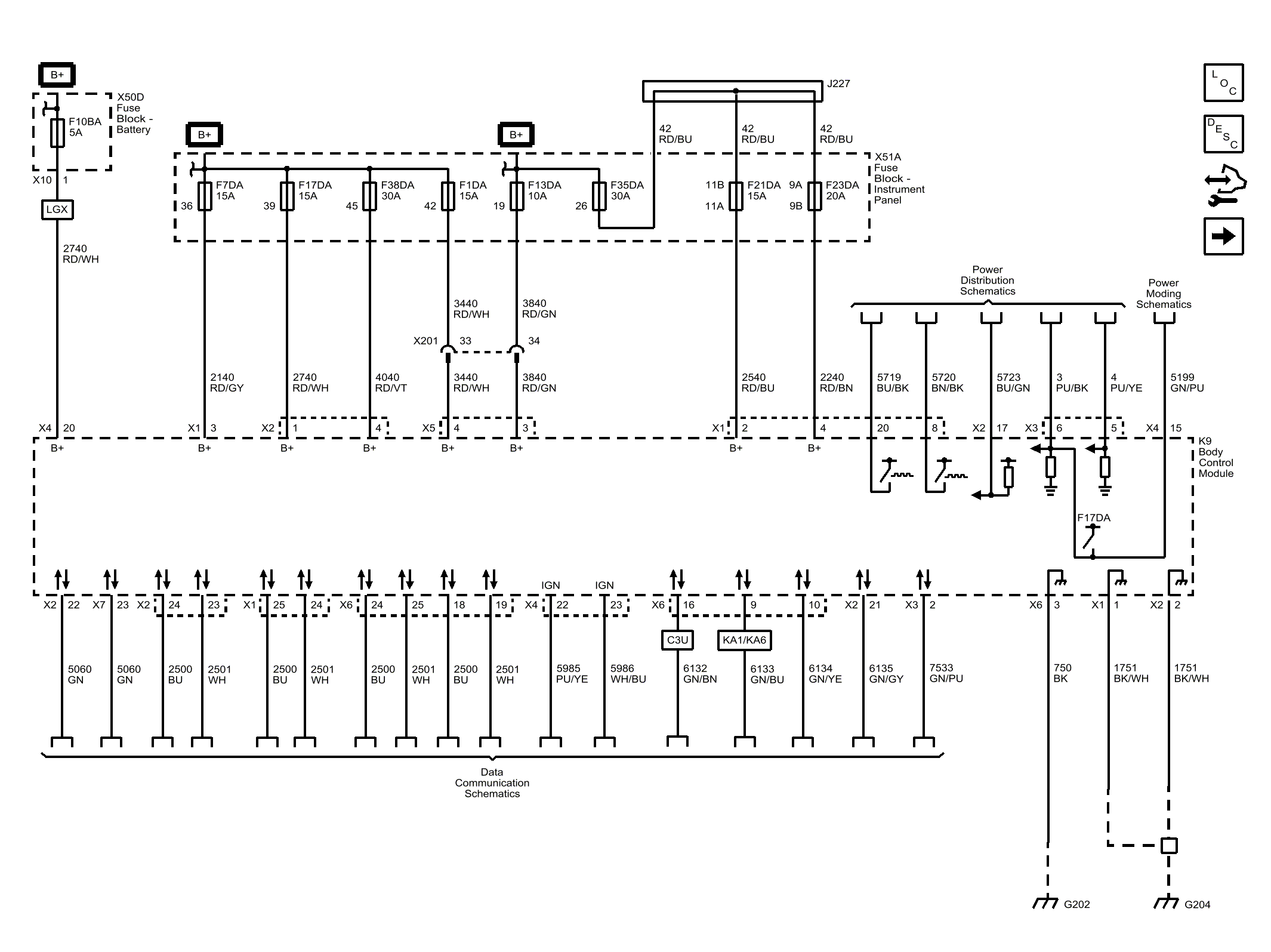

Fig 1: Power, Ground, Data Communications, and Subsystem References (1 of 4)
Courtesy of GENERAL MOTORS COMPANY
