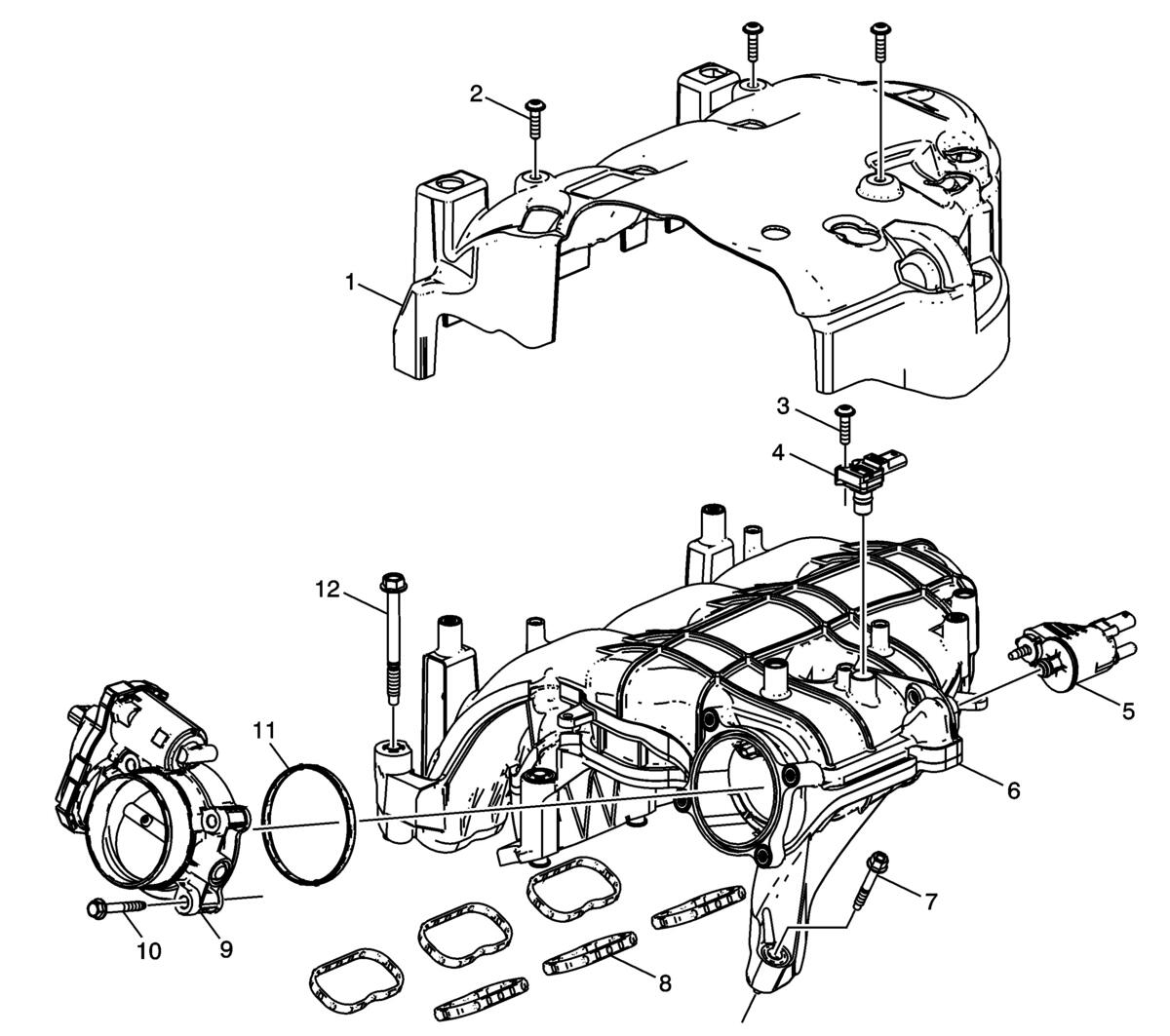

Intake Manifold and Components
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Insulator |
| 2 | Intake Manifold Insulator Retainer |
| 3 | Manifold Absolute Pressure Sensor Bolt |
| 4 | Manifold Absolute Pressure Sensor |
| 5 | Evaporative Emission Canister |
| 6 | Intake Manifold |
| 7 | Intake Manifold Bolt |
| 8 | Intake Manifold Seal |
| 9 | Throttle Body |
| 10 | Throttle Body Bolt |
| 11 | Throttle Body Gasket |
| 12 | Intake Manifold Bolt |
