Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the contact surfaces between the transmission and the transfer case adapter.

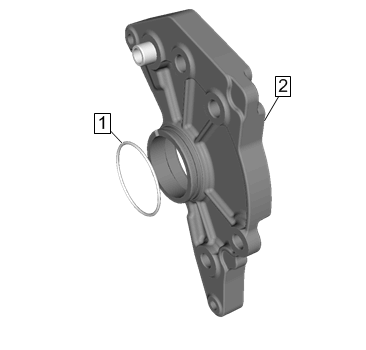

    2. Fig 1: Transmission Adapter O-Ring
    GM4289130Courtesy of GENERAL MOTORS COMPANY
  2. Install a NEW the transfer case to adapter O-ring (1).

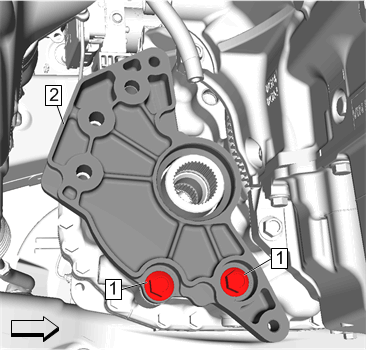

    3. Fig 2: Transmission Adapter And Bolts
    GM4289114Courtesy of GENERAL MOTORS COMPANY
  3. Install the transmission adapter (2).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the transmission adapter bolts (1) and tighten to 100 N.m (74 lb ft).
  5. Install the power transfer unit. Refer to Power Transfer Unit Case Replacement
