Power Transfer Unit Extension Housing Removal
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Power Transfer Unit Extension Housing Removal

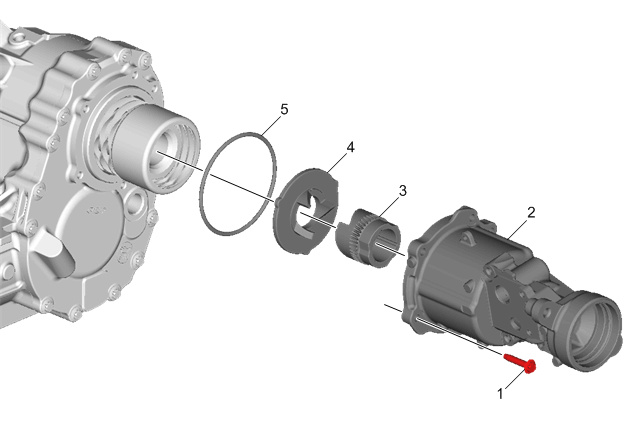

| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Extension Housing Bolt (Qty: 5) |
| 2 | Power Transfer Unit Extension Housing Power Transfer Unit Case Cleaning and Inspection |
| 3 | Power Transfer Disconnect Rotary Cam |
| 4 | Power Transfer Disconnect Linear Cam |
| 5 | Extension Housing Cover Seal - O-Ring
NOTE:
Remove and DISCARD the seal. |
