Power Transfer Unit Idler Shaft Removal
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Power Transfer Unit Idler Shaft Removal

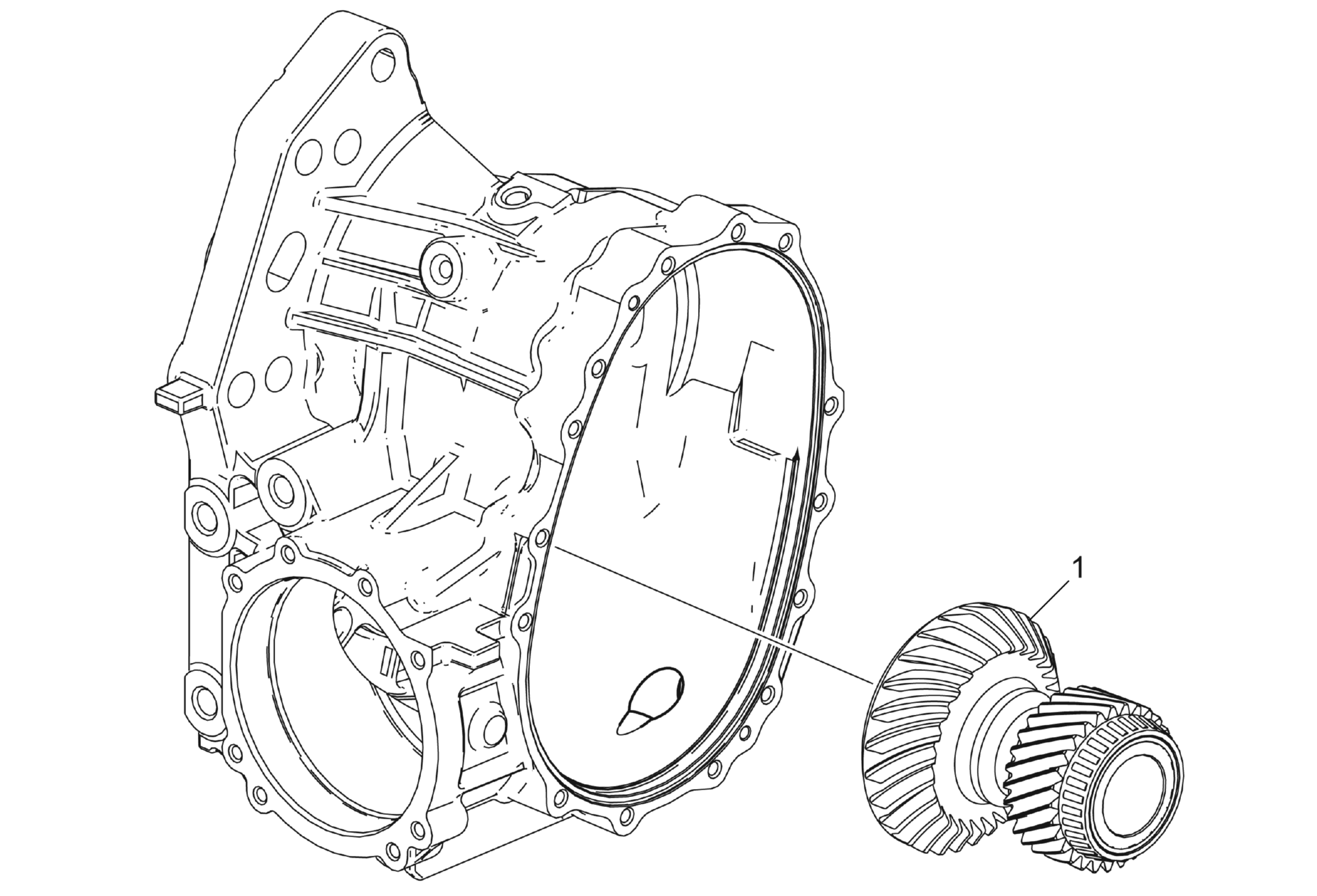

| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Idler Shaft
NOTE:
DO NOT remove the idler gear bearing races from the case half or cover. The case, cover, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the power transfer unit is to be replaced as an assembly. |
