Power Transfer Unit Cover Housing, Input Disconnect Shaft, Input Shaft, and Cover Removal

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

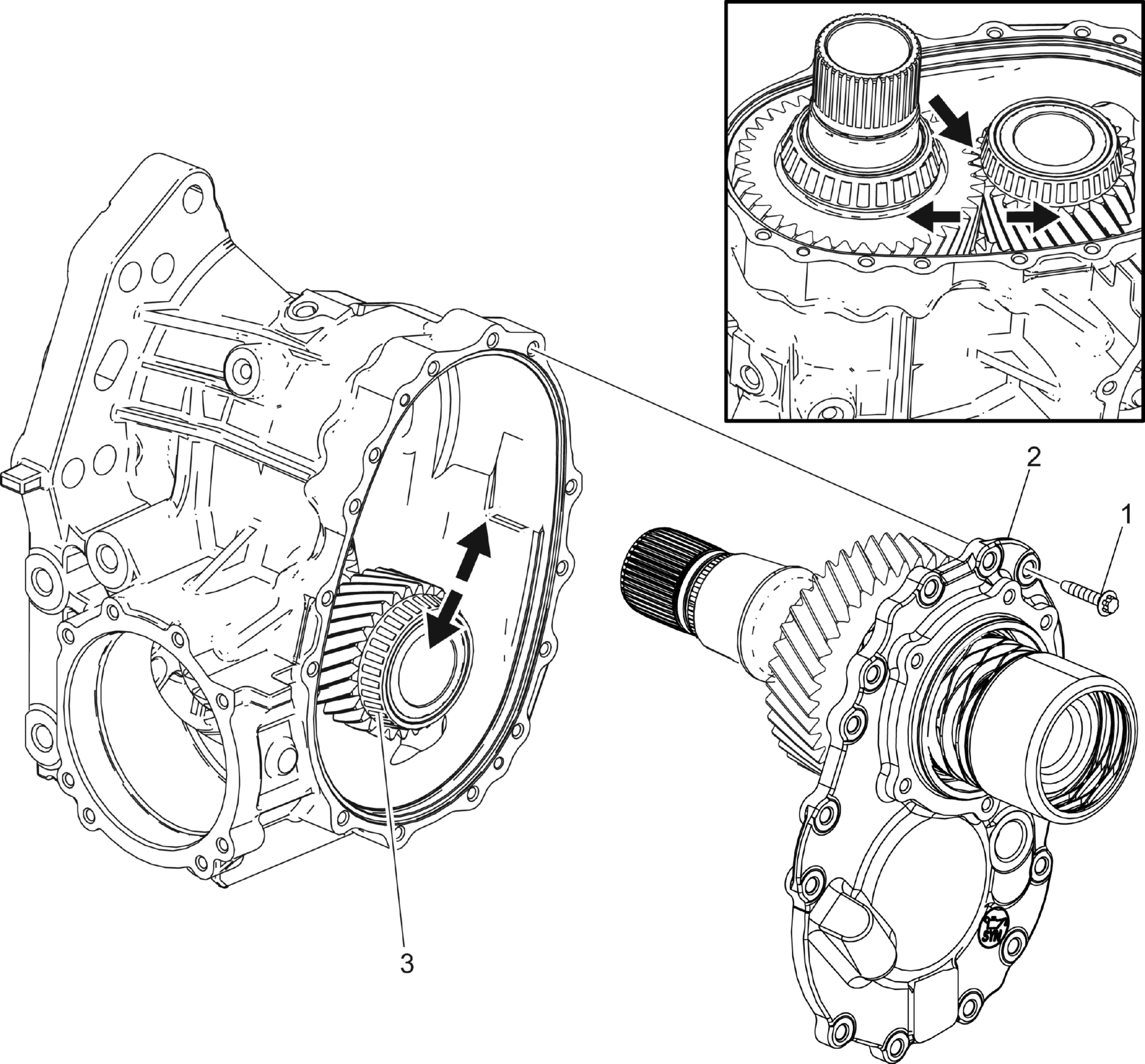

Fig 1: Power Transfer Unit Cover Housing, Input Disconnect Shaft, Input Shaft, and Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Power Transfer Unit Cover Housing Bolt (Qty: 14)
2	Power Transfer Unit Cover Housing NOTE: The gear teeth to the input disconnect shaft are behind the bearing to the idler shaft.
3	Power Transfer Unit Idler Shaft NOTE: Use the rear output shaft hole to move the idler shaft.
