Power Transfer Unit Cover Housing, Input Disconnect Shaft, Input Shaft, and Cover Disassemble
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Power Transfer Unit Cover Housing, Input Disconnect Shaft, Input Shaft, and Cover Disassemble

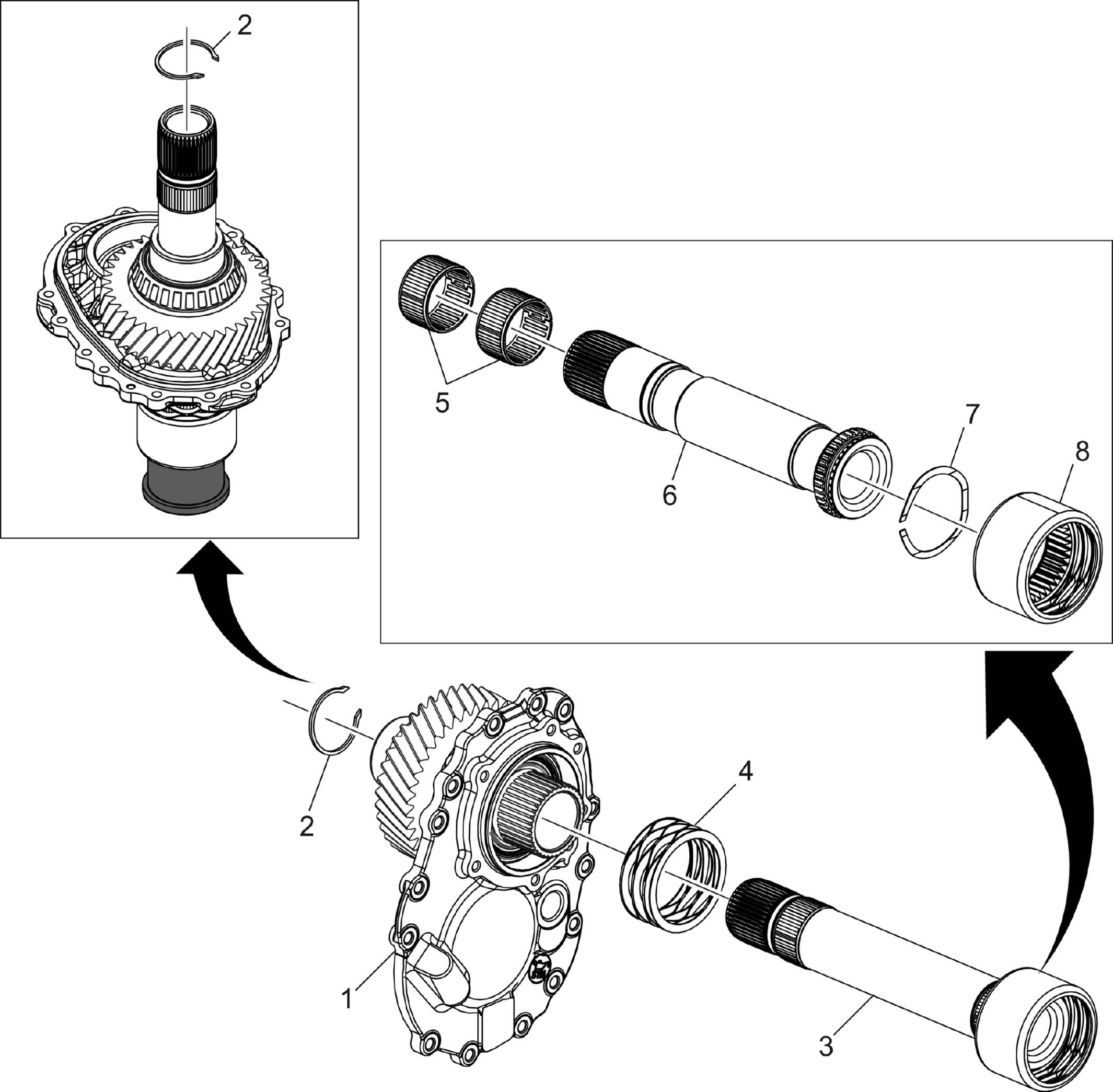

| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Cover Housing |
| 2 | Power Transfer Input Shaft Clip |
| 3 | Power Transfer Unit Idler Gear Shaft Access Tube Assembly |
| 4 | Power Transfer Unit Connect Spring |
| 5 | Input Disconnect Shaft Needle Bearing (Qty: 2) |
| 6 | Power Transfer Unit Input Shaft |
| 7 | Power Transfer Unit Wave Ring |
| 8 | Power Transfer Unit Shift Sleeve Special Tools DT-48022 Output Bushing Installer Equivalent regional tools: Refer to Special Tools . |
