Power Transfer Unit Cover Housing Seal and Input Disconnect Shaft Removal
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Power Transfer Unit Cover Housing Seal and Input Disconnect Shaft Removal

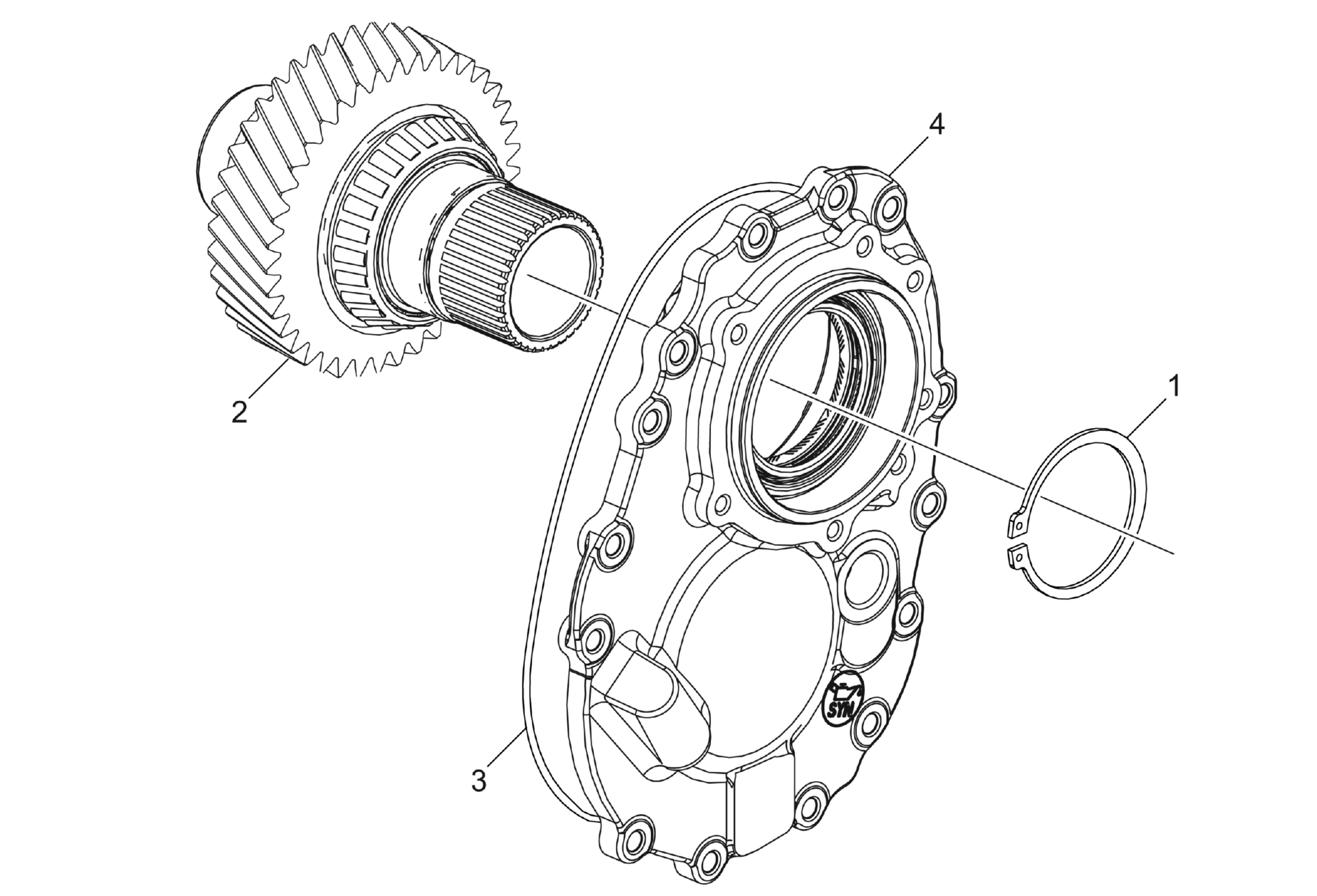

| Callout | Component Name |
|---|---|
| 1 | Power Transfer Input Connect Spring Clip |
| 2 | Power Transfer Unit Input Disconnect Shaft
NOTE:
DO NOT remove the input disconnect bearing races from the case half or cover. The case, cover, input disconnect shaft, and input disconnect bearings and races are not available as separate service parts. If component replacement is required, the power transfer unit is to be replaced as an assembly. |
| 3 | Power Transfer Unit Cover Housing Seal |
| 4 | Power Transfer Unit Cover Housing |
