Power Transfer Unit Seal View
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

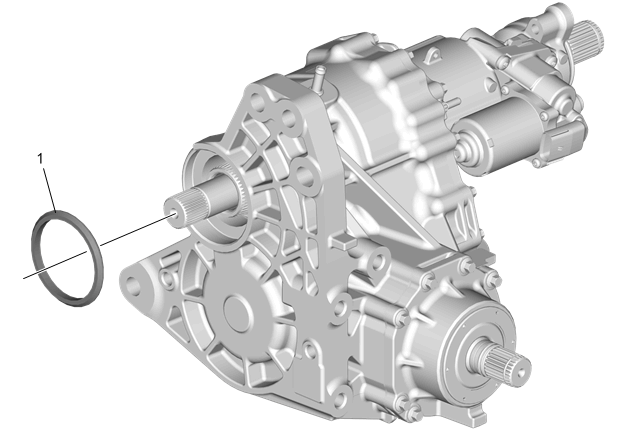

Fig 1: Power Transfer Unit Seal View
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Power Transfer Unit Face Seal - O-Ring
