Power Transfer Unit Mounting (with Transmission M2D)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

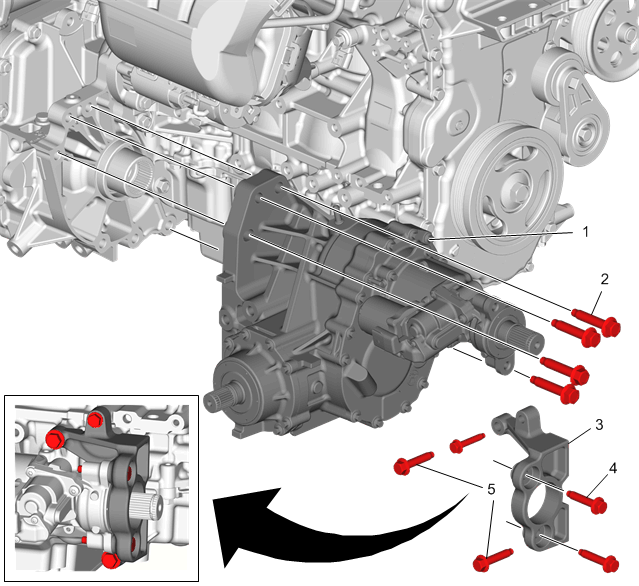

| Callout |
Component Name |
| 1 |
Power Transfer Unit Case |
| 2 |
Power Transfer Unit Bolt (Qty: 5) |
| 3 |
Transaxle Brace-to-Engine Bolt |
| 4 |
Transfer Case-to-Transmission Bolt (Qty: 3) |
| 5 |
Transfer Case-to-Transmission Bolt (Qty: 2) |
