Accessory Power and USB Receptacles

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

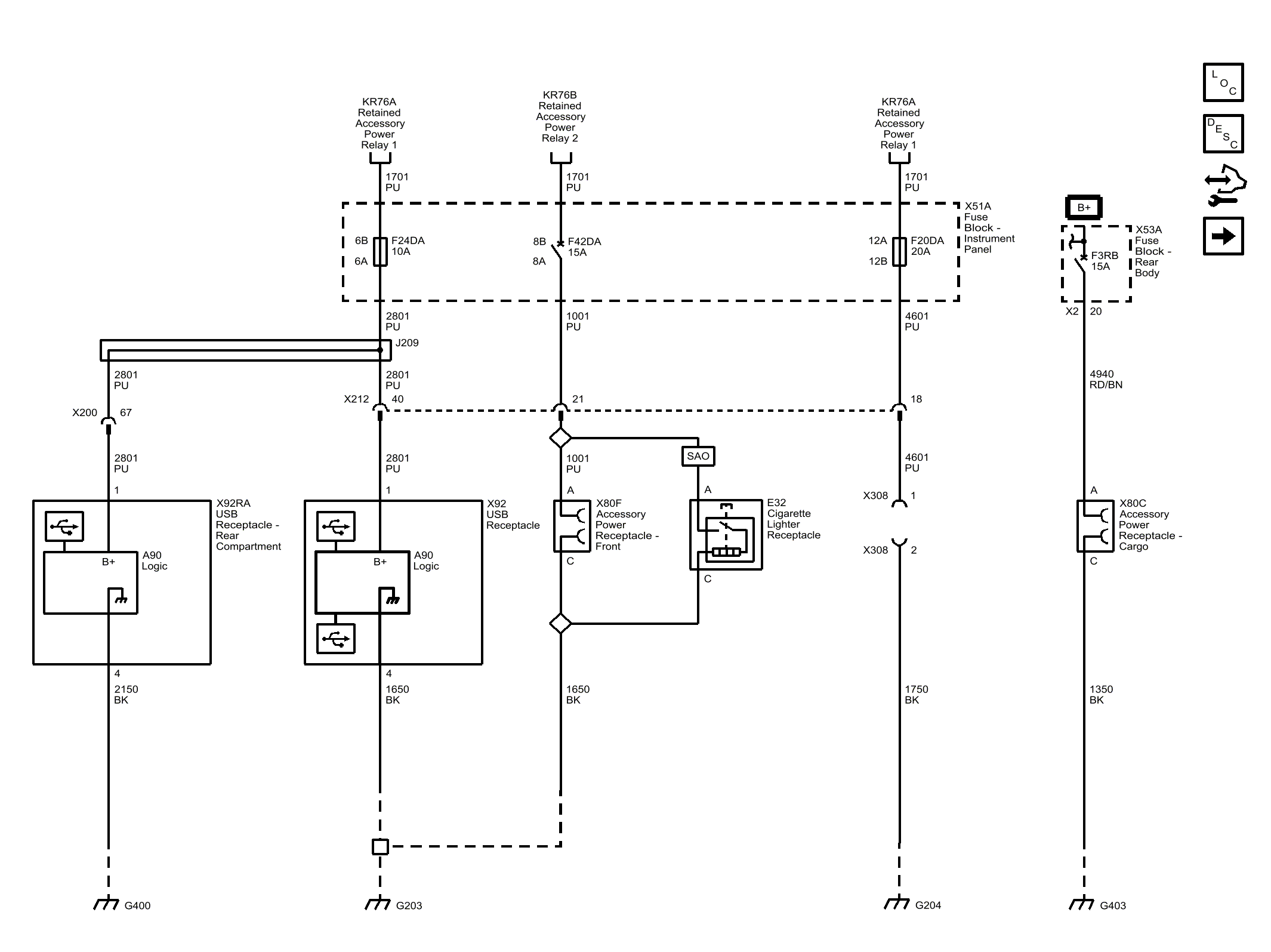

Fig 1: Accessory Power and USB Receptacles
GM4373329Courtesy of GENERAL MOTORS COMPANY
