Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Route the connector through the retainer. Align the accessory power receptacle (1) to the slots in the opening.
- Install the retainer by pressing into place fully seated.
- Connect the electrical connector to the receptacle.

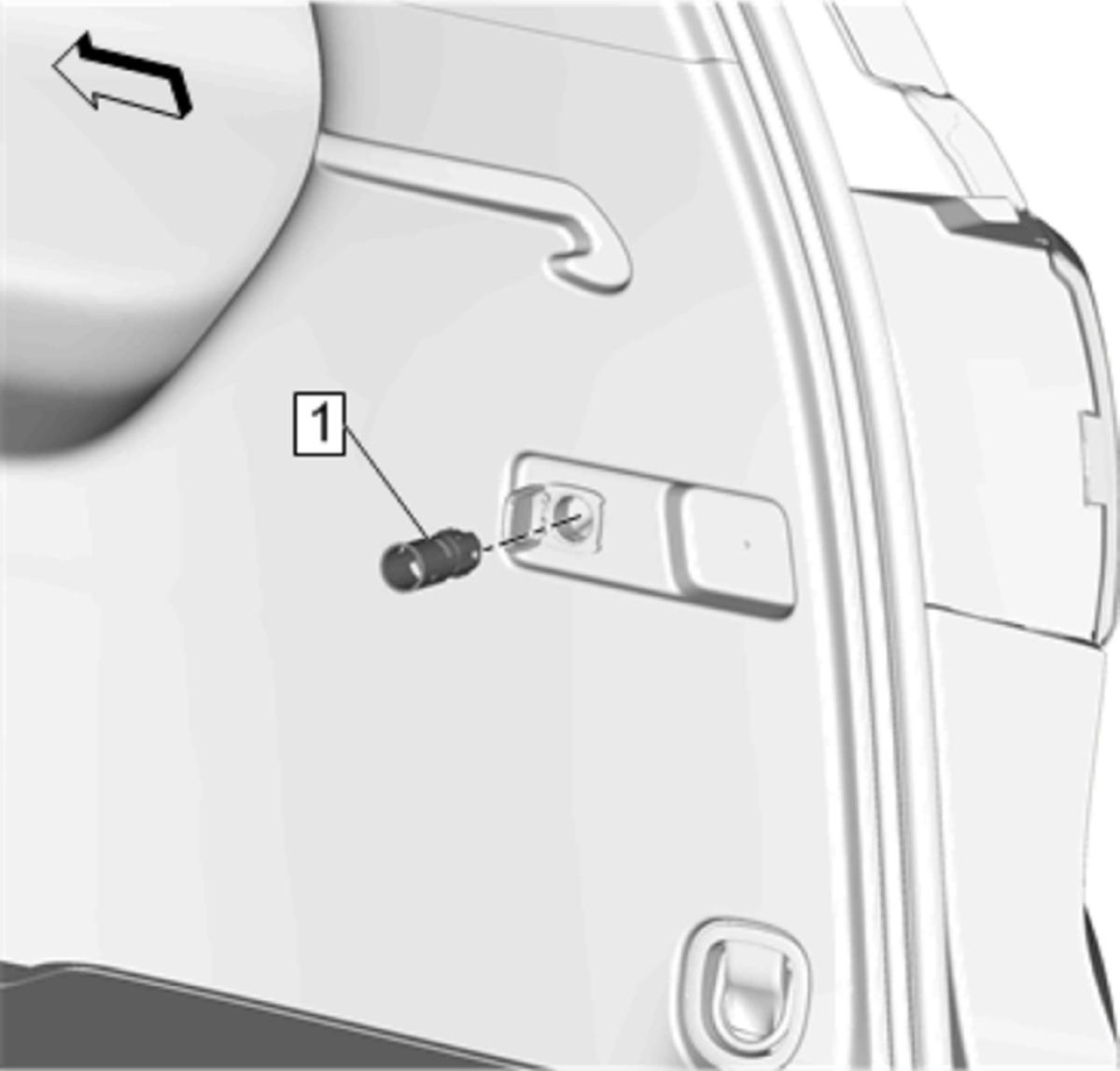

- Align the tabs on the receptacle to the slots in the retainer. Install the receptacle (1) by pressing into place until fully seated.
- Connect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection (Without KL9)Battery Negative Cable Disconnection and Connection (With KL9)
