Side Window Defogger Outlet Grille Replacement - Right Side
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

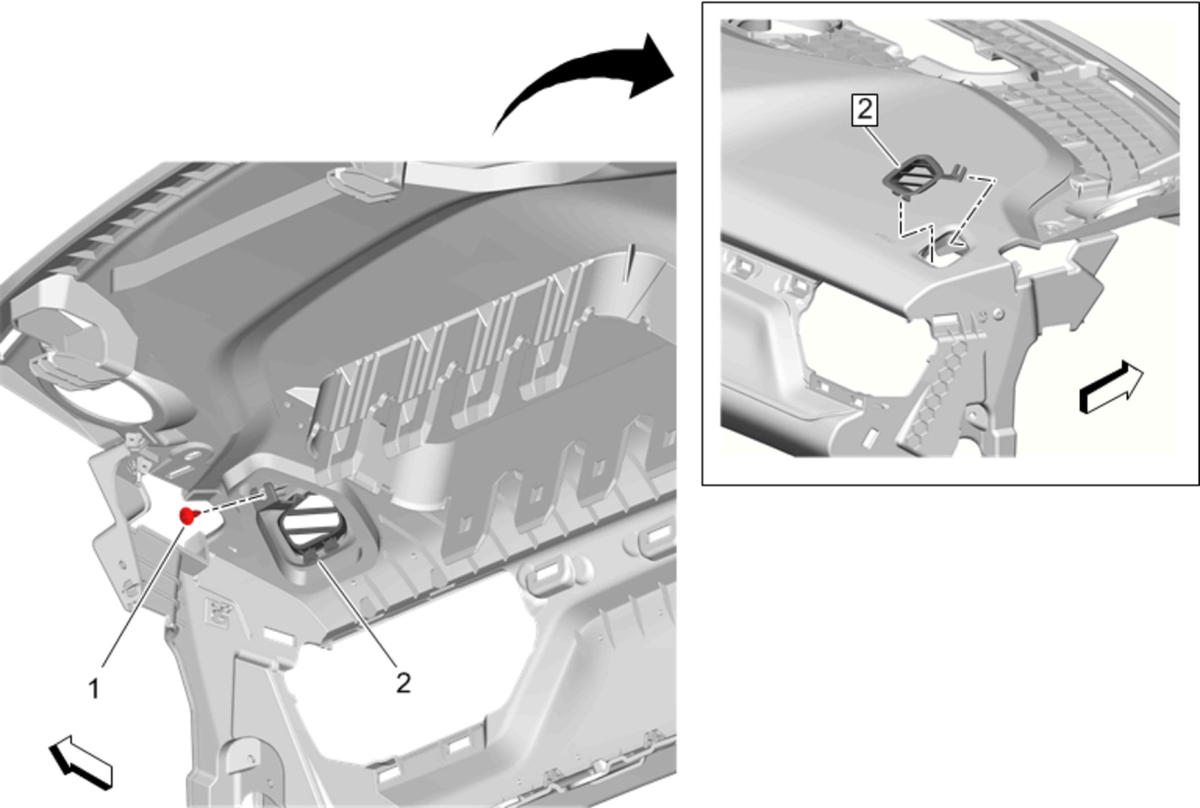

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Instrument Panel Assembly. Refer to Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB) |
|
| 1 | Instrument Panel Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Side Window Defogger Outlet Grille - Right Side Procedure Release the plastic retaining tabs. |
