Receiver and Dehydrator Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

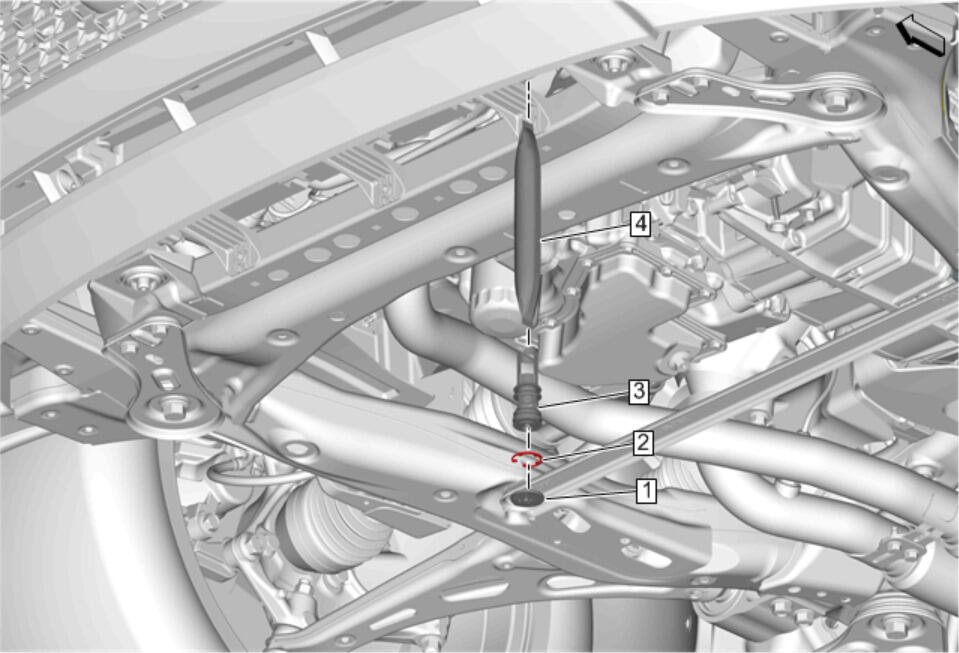

| Callout | Component Name |
|---|---|
| Preliminary Procedures Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-1234yf) |
|
| 1 | Air Conditioning Receiver and Dehydrator Cover
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 7 N.m (62 lb in) |
| 2 | Air Conditioning Condenser Seal Retainer |
| 3 | Air Conditioning Receiver and Dehydrator Plug |
| 4 | Air Conditioning Refrigerant Desiccant |
