Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static)
    2. Fig 1: Floor Front Air Outlet Duct - Left Side
    GM4290914Courtesy of GENERAL MOTORS COMPANY
  2. Remove Floor Front Air Outlet Duct - Left Side (2). Refer to Floor Front Air Outlet Duct Replacement - Left Side

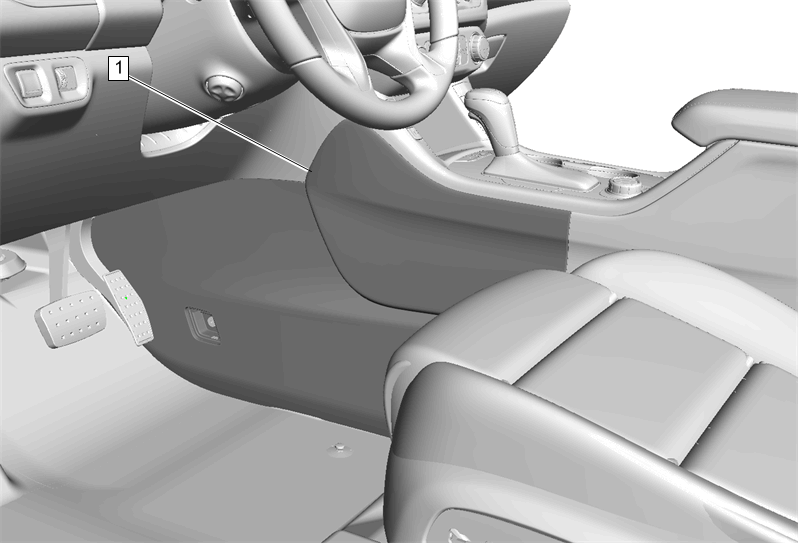

    3. Fig 2: Front Floor Console Extension Panel - Left
    GM4364866Courtesy of GENERAL MOTORS COMPANY
  3. Remove Front Floor Console Extension Panel - Left (1). Refer to Front Floor Console Extension Panel Replacement - Left Side

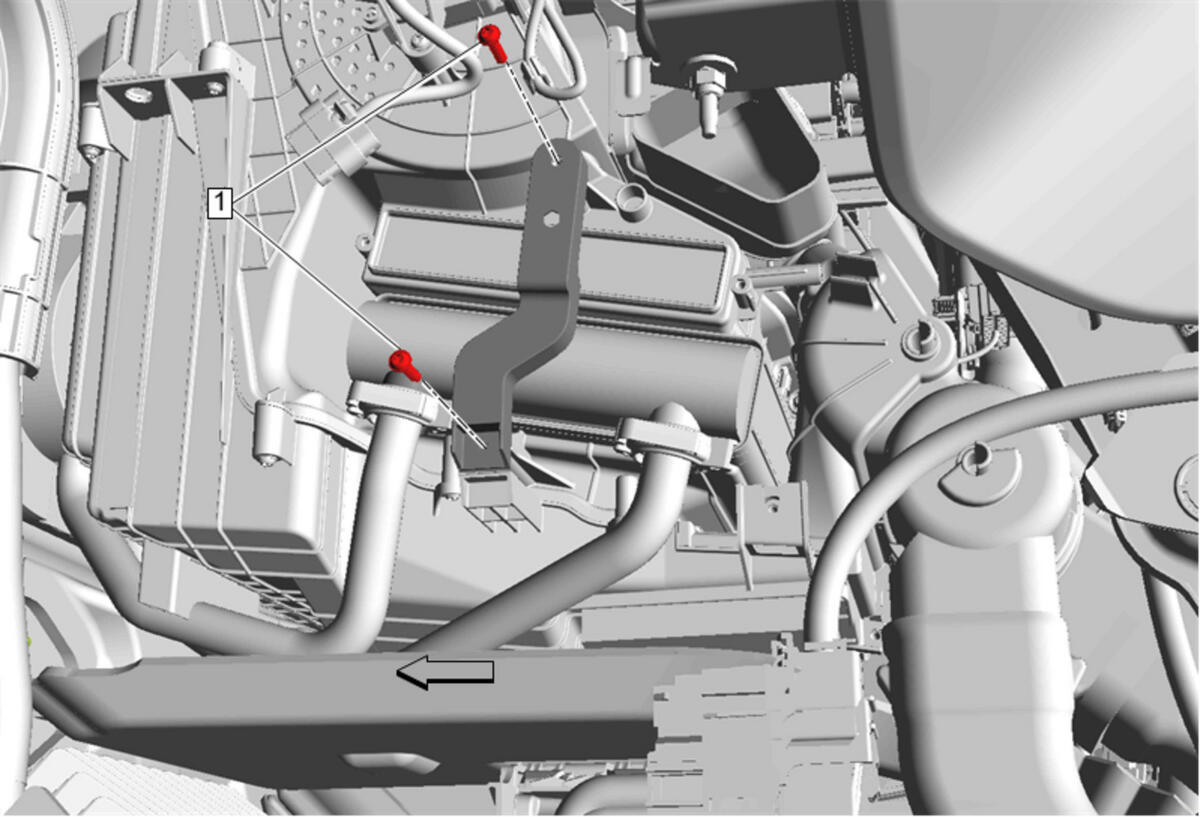

    4. Fig 3: Heater Core Bracket Bolts
    GM4295635Courtesy of GENERAL MOTORS COMPANY
  4. Remove Heater Core Bracket Bolts (1) (Qty: 2)

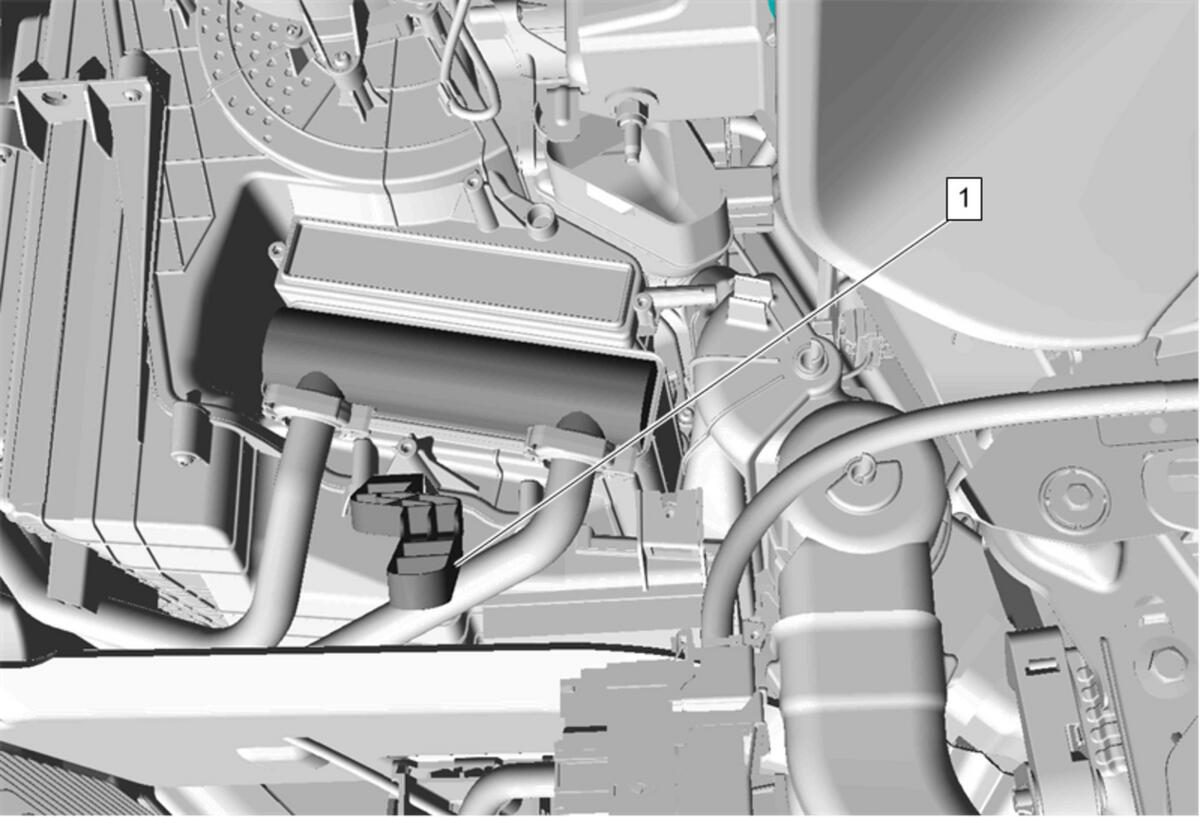

    5. Fig 4: Heater Core Bracket
    GM4295648Courtesy of GENERAL MOTORS COMPANY
  5. Rotate the heater core (1) bracket downward.

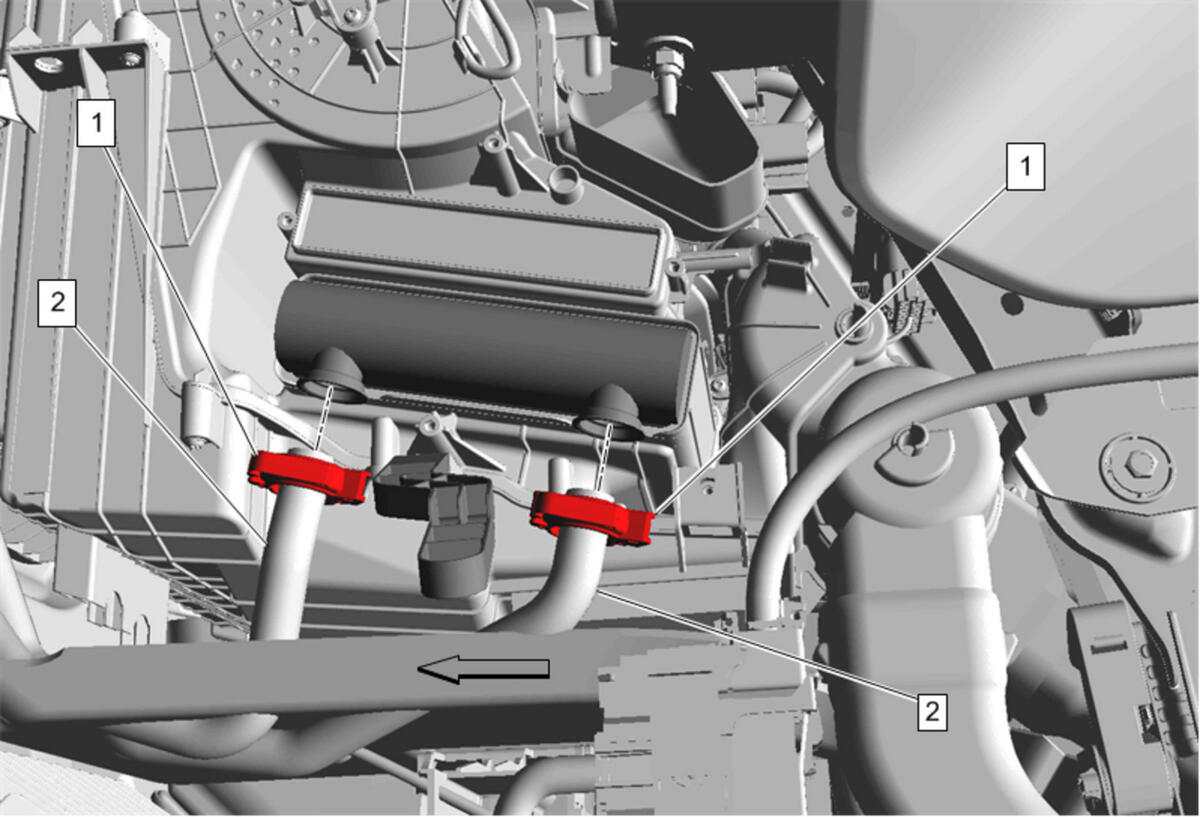

    6. Fig 5: Heater Core Tubes, Clamps And O-Ring Seals
    GM4295661Courtesy of GENERAL MOTORS COMPANY
  6. Disengage Heater Core Tube Clamps (1) (Qty: 2)
  7. Remove Heater Core Tubes (2) (Qty: 2) @ Heater Core
  8. DISCARD the O-ring seals (Qty: 2).
    9. Fig 6: Heater Core

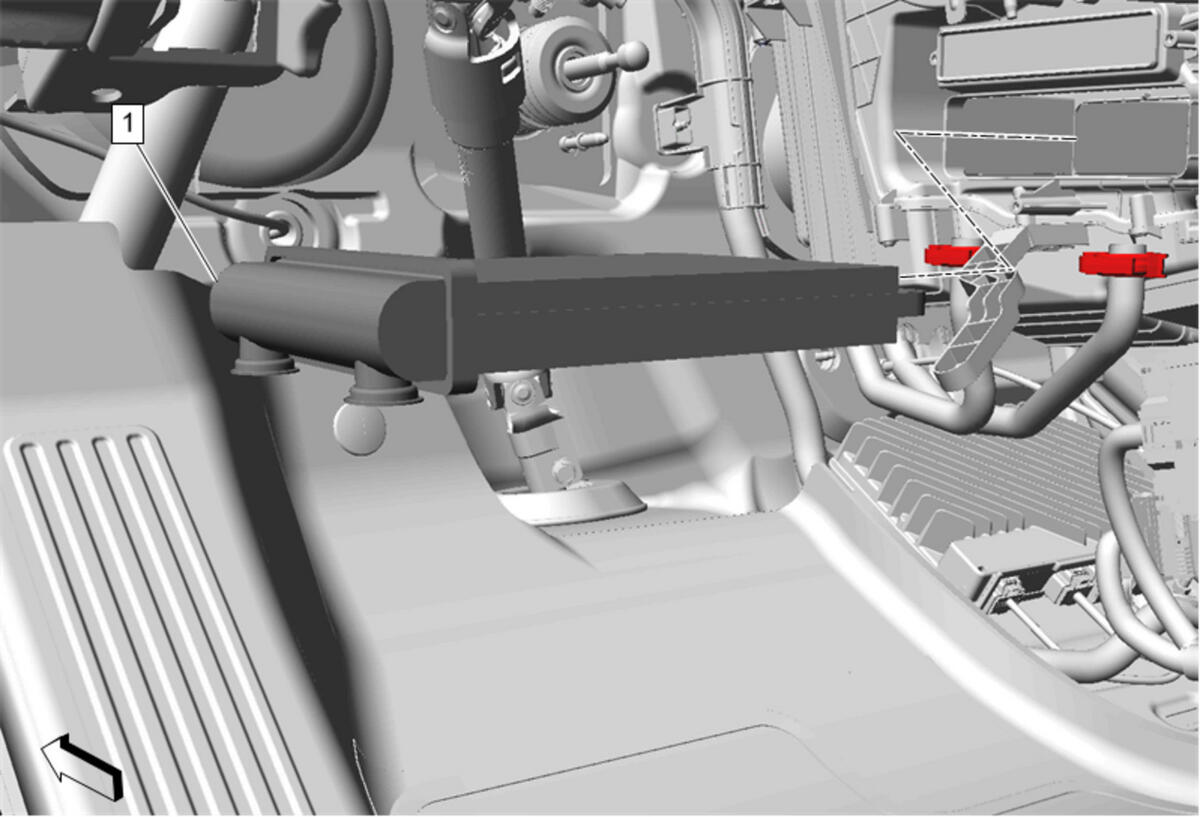

    GM4295674Courtesy of GENERAL MOTORS COMPANY
  9. Remove Heater Core (1)
