Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static)
    2. Fig 1: Heater Outlet Pipe And Clamp
    GM4375513Courtesy of GENERAL MOTORS COMPANY
  2. Remove Heater Outlet Pipe (2) @ Heater Coolant Pump. Refer to Heater Outlet Pipe Replacement (LCV)
    3. Fig 2: Heater Outlet Hose And Clamp
    GM4375336Courtesy of GENERAL MOTORS COMPANY
  3. Remove Heater Outlet Hose (2) @ Heater Coolant Pump. Refer to Heater Outlet Hose Replacement (LCV Quick Connect Connector to Auxiliary Air Conditioning Evaporator Intermediate Tube) Heater Outlet Hose Replacement (LCV Water Outlet to Heater Coolant Pump) Heater Outlet Hose Replacement (LCV without Rear Aux HVAC Heater Outlet Hose Connector to Heater Core Connector)

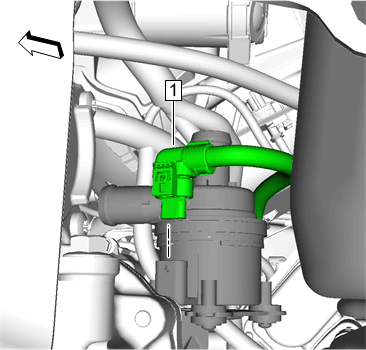

    4. Fig 3: Heater Coolant Pump Electrical Connector
    GM4375657Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect Electrical Connector (1) @ Heater Coolant Pump
    5. Fig 4: Heater Coolant Pump Bracket Bolt
    GM4375660Courtesy of GENERAL MOTORS COMPANY
  5. Remove Heater Coolant Pump Bracket Bolt (1)

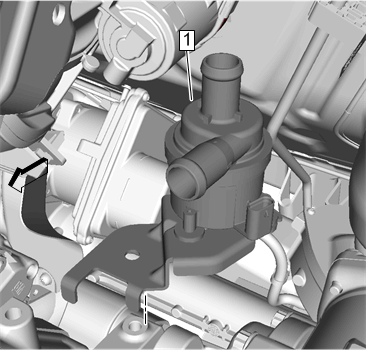

    6. Fig 5: Heater Coolant Pump
    GM4375666Courtesy of GENERAL MOTORS COMPANY
  6. Remove Heater Coolant Pump (1)
