Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Front Floor Console Rear Trim Panel. Refer to Front Floor Console Rear Trim Panel Replacement
  2. Remove Front Floor Rear Console Side Trim Panel - Left Side. Refer to Front Floor Rear Console Side Trim Panel Replacement - Left Side
  3. Remove Front Floor Rear Console Side Trim Panel - Right Side. Refer to Front Floor Rear Console Side Trim Panel Replacement - Right Side

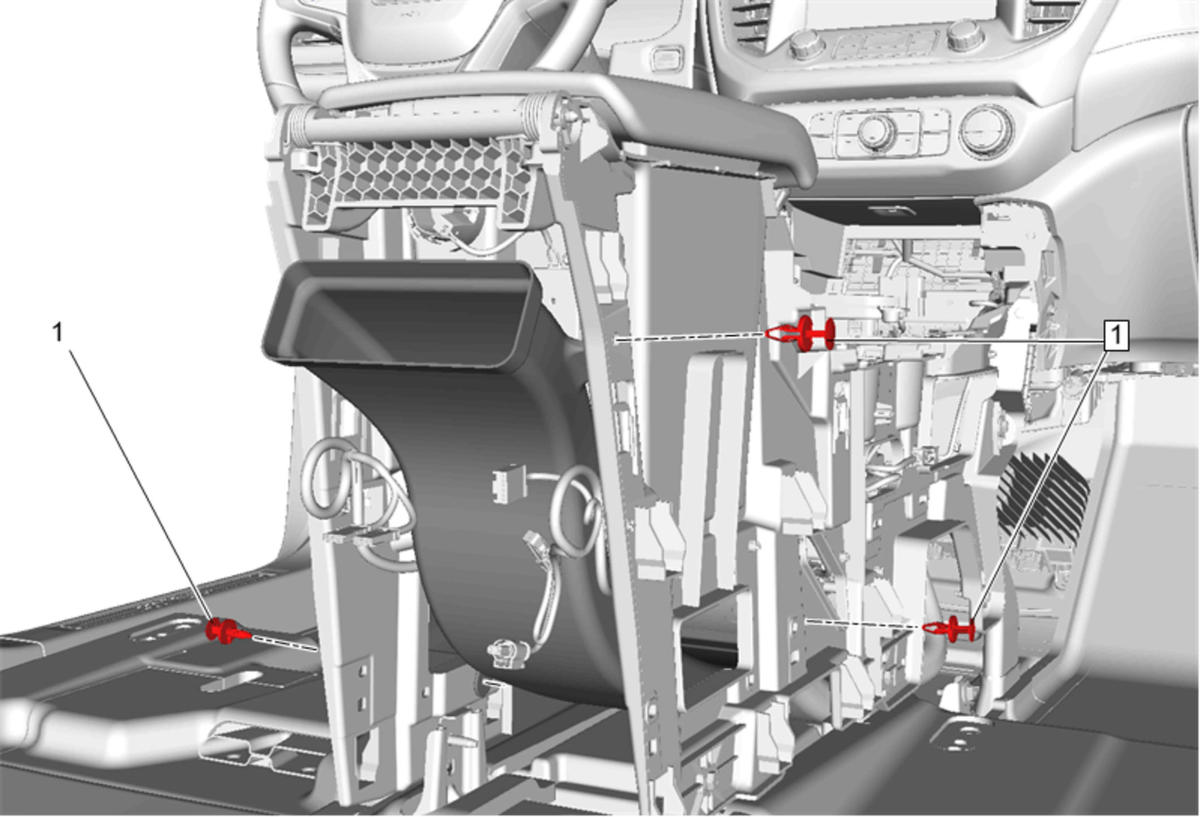

    4. Fig 1: Front Floor Console Rear Air Duct Retainers
    GM4381653Courtesy of GENERAL MOTORS COMPANY
  4. Remove Front Floor Console Rear Air Duct Retainers (1) (Qty: 3)

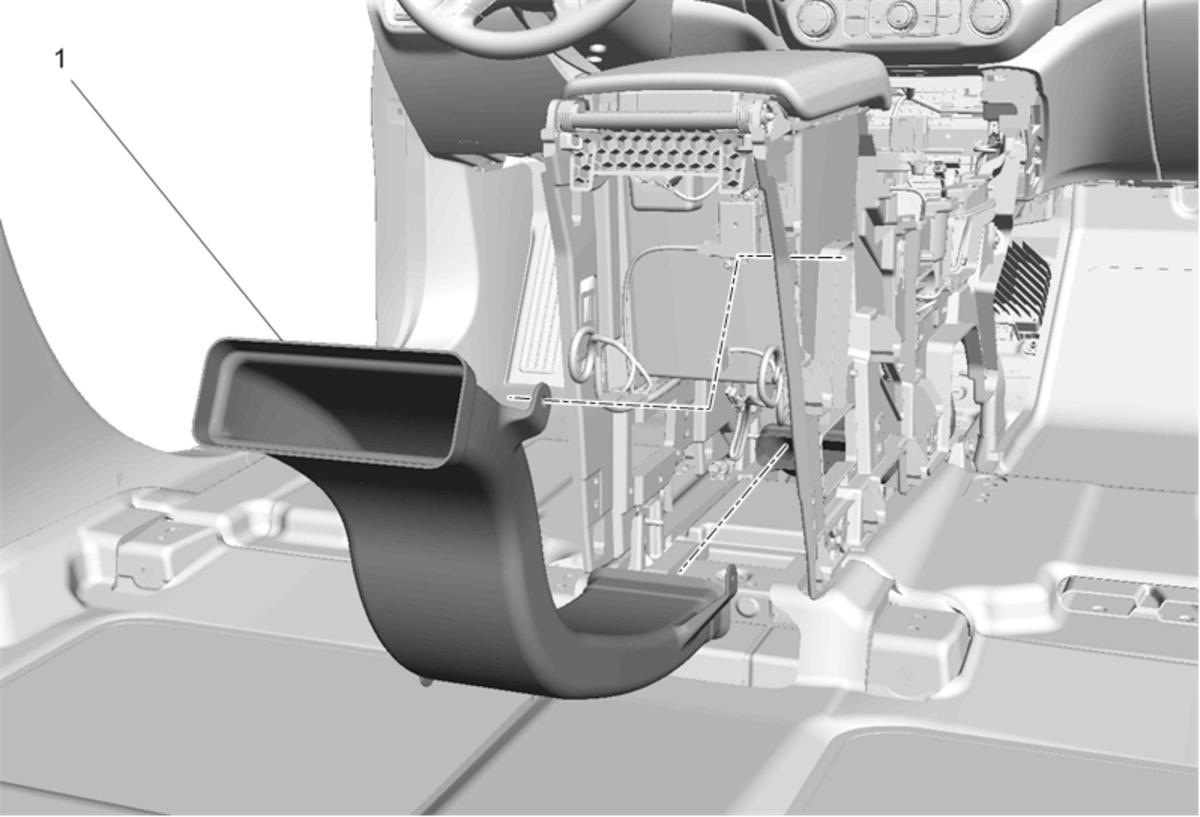

    5. Fig 2: Front Floor Console Rear Air Duct
    GM4381657Courtesy of GENERAL MOTORS COMPANY
  5. Remove Front Floor Console Rear Air Duct (1)
