Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Front Floor Console Rear Air Duct
    GM4381090Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Floor Console Rear Air Duct (1)

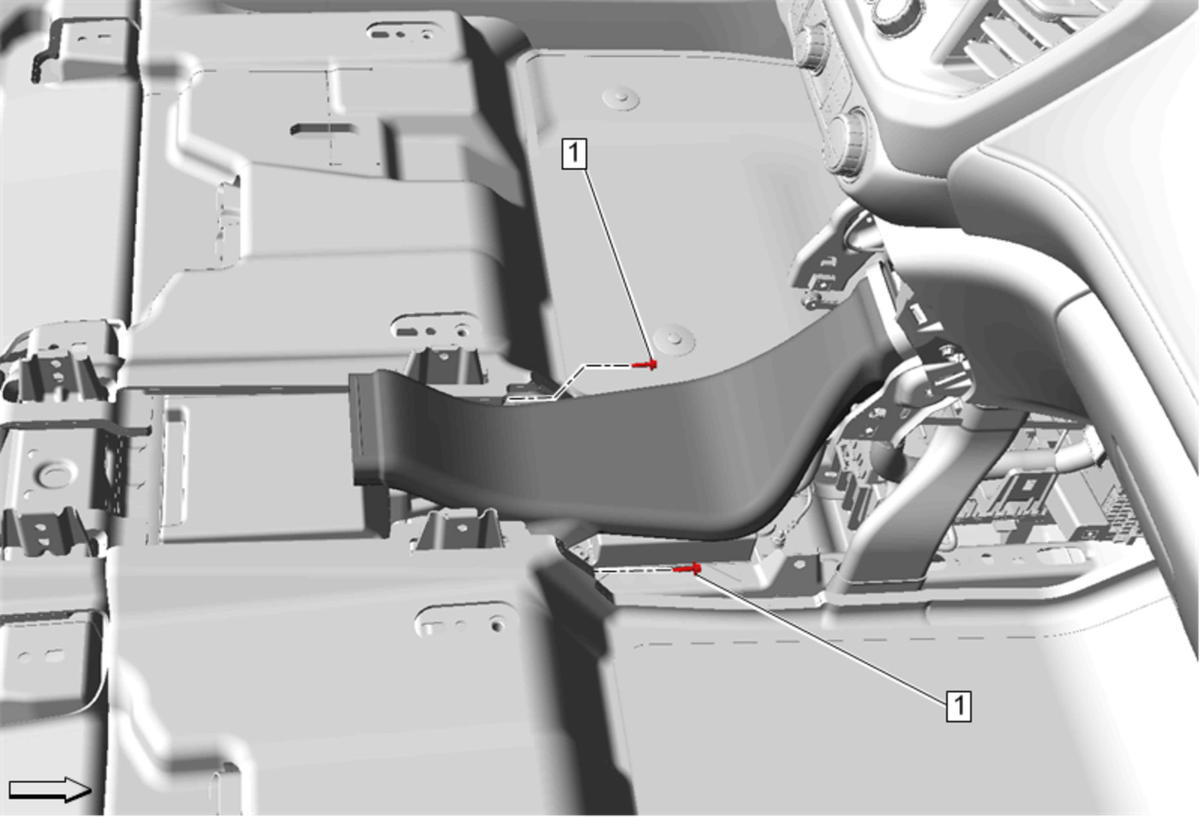

    2. Fig 2: Front Floor Console Rear Air Duct Bolts
    GM4381076Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Front Floor Console Rear Air Duct Bolts (1) (Qty: 2) to 2.5 N.m (22 lb in)
  3. Return the carpet back to the carpets original position.
  4. Install Front Floor Console. Refer to Front Floor Console Replacement
  5. Install the driver and passenger seats. Refer to Driver or Passenger Seat Removal and Installation
