Blower Motor Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

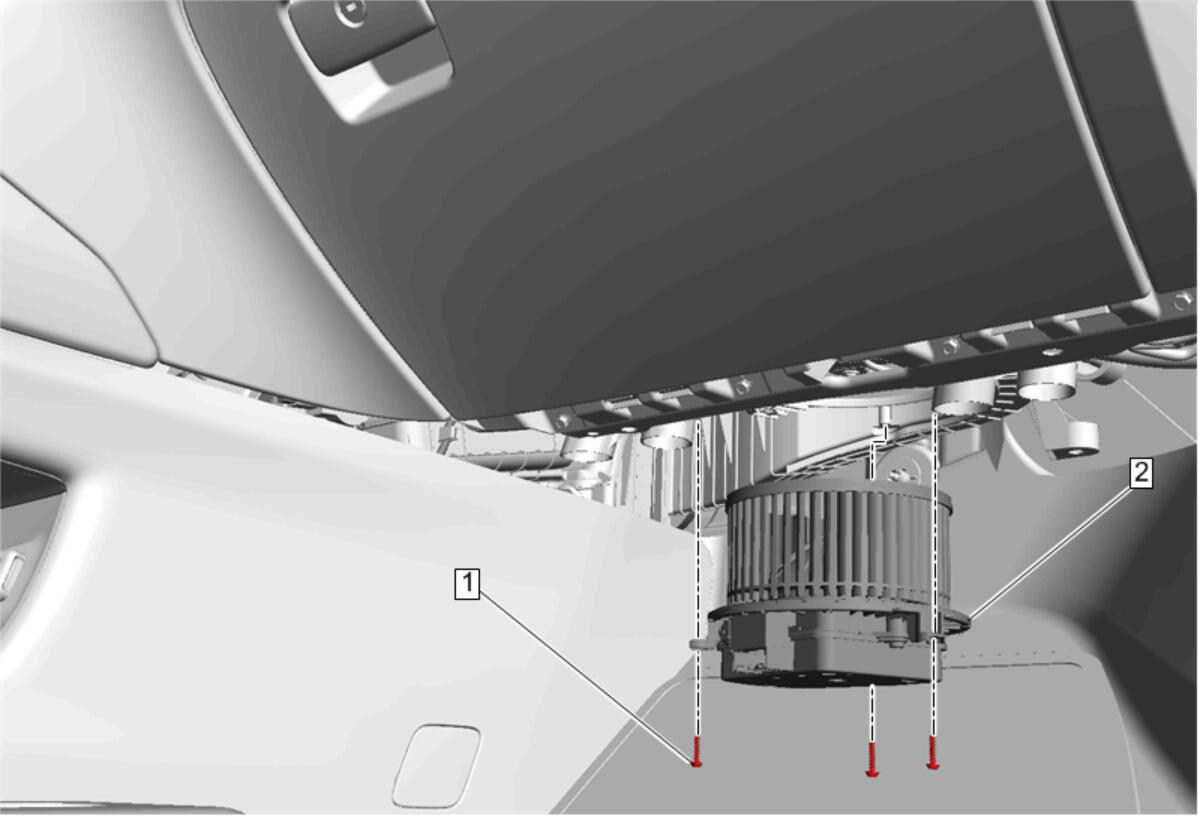

| Call out | Component Name |
|---|---|
| Preliminary Procedure Remove Instrument Panel Insulator - Right Side. Refer to Instrument Panel Insulator Replacement - Right Side |
|
| 1 | Blower Motor Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Blower Motor Procedure Disconnect the electrical connector. |
