Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

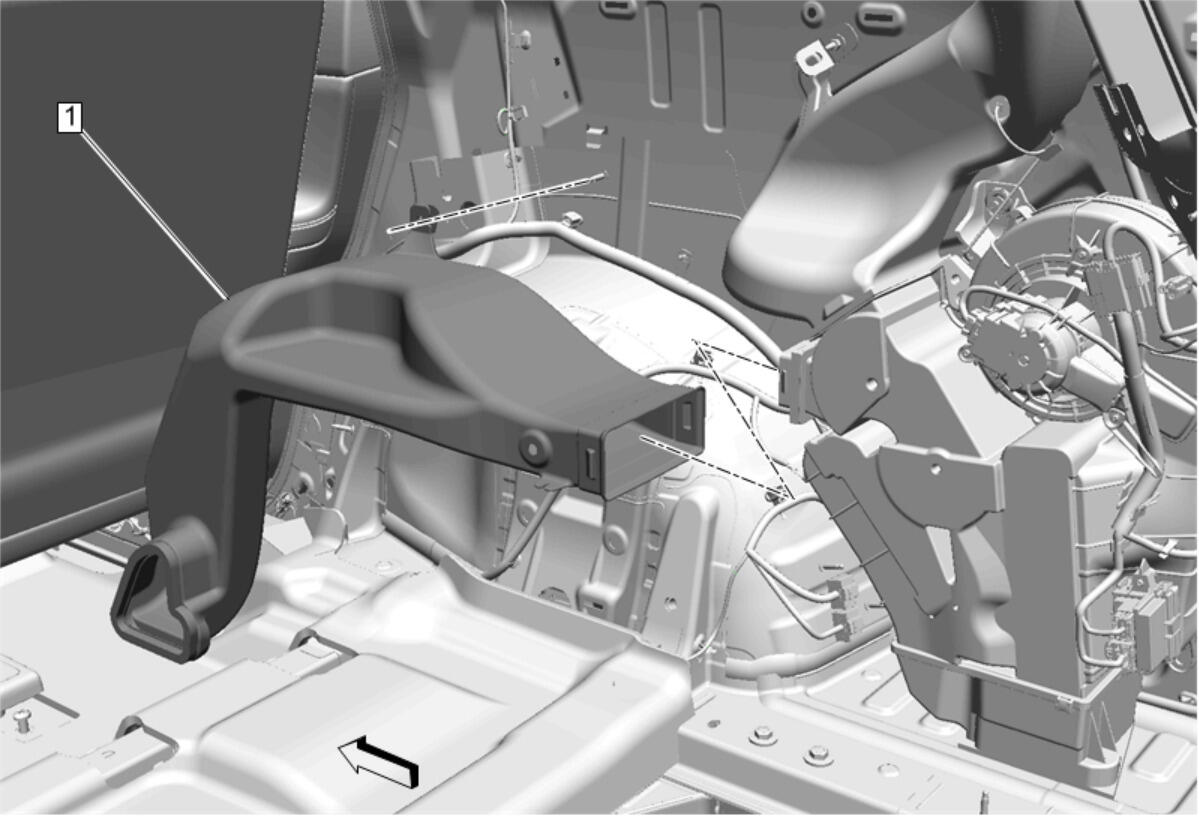

    Fig 1: Auxiliary Heater Air Outlet Duct
    GM4377361Courtesy of GENERAL MOTORS COMPANY
  1. Install Auxiliary Heater Air Outlet Duct (1)

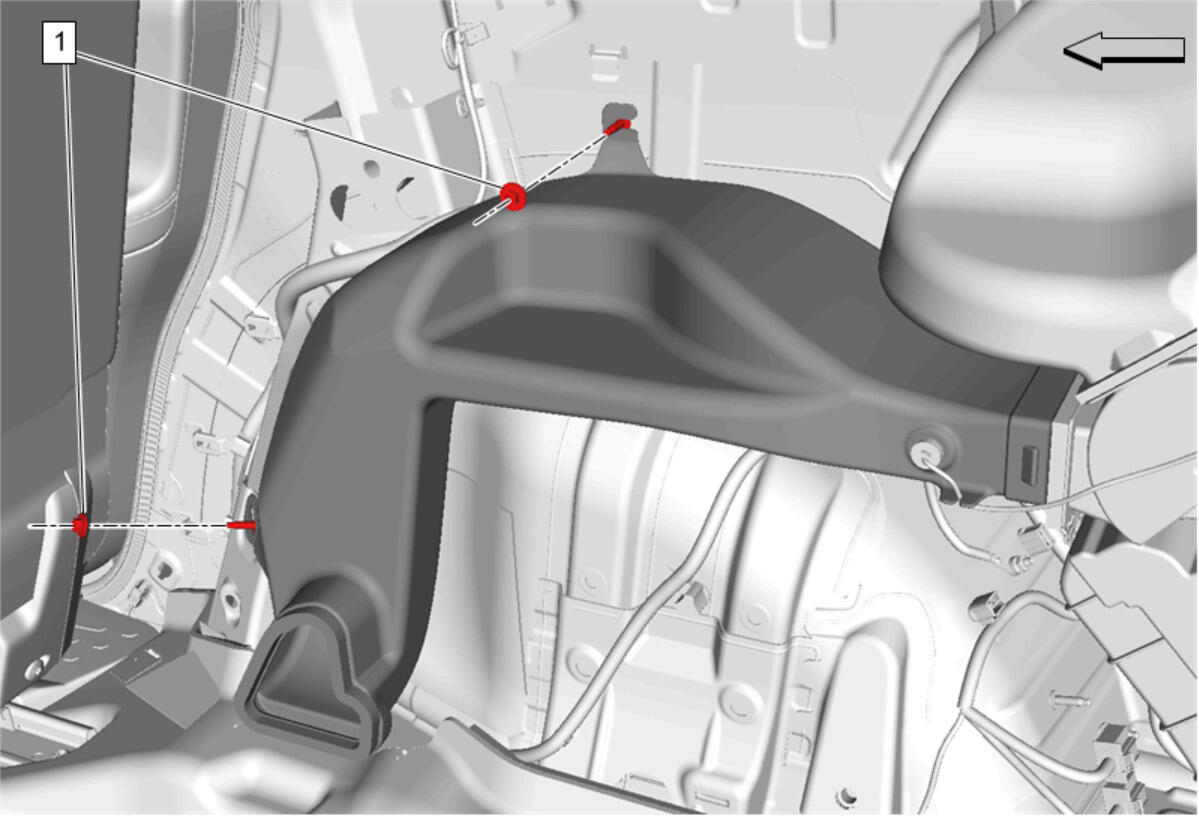

    2. Fig 2: Auxiliary Heater Air Outlet Duct Nuts
    GM4377349Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Auxiliary Heater Air Outlet Duct Nuts (1) (Qty: 2) to 9.0 N.m (80 lb in)
  3. Install the auxiliary heater and air outlet duct air temperature sensor into the auxiliary heater and air outlet duct.
  4. Install Quarter Lower Rear Trim Panel - Right Side. Refer to Quarter Lower Rear Trim Panel Replacement (Right Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side Without All Terrain)
