Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

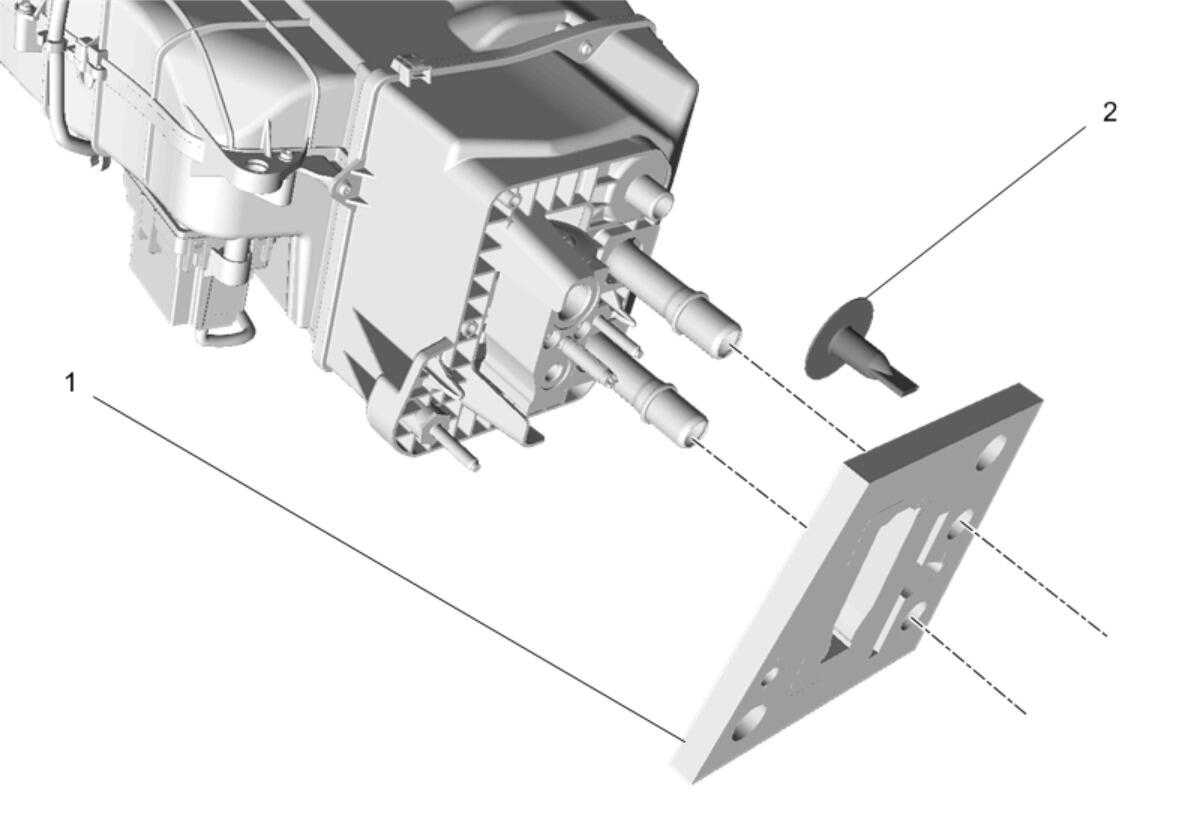

    Fig 1: Auxiliary Heater And Air Conditioning Evaporator And Blower Module Drain Valve And Seal
    GM4399858Courtesy of GENERAL MOTORS COMPANY
  1. Install Auxiliary Air Conditioning Evaporator and Blower Module Drain Valve (2)
  2. Install Heater and Air Conditioning Evaporator and Blower Module Seal (1)
  3. Install Auxiliary Air Conditioning Evaporator and Blower Module (1). Refer to Auxiliary Air Conditioning (A/C) Evaporator and Blower Module Assembly Removal and Installation (C69)
